Specifications
We designed and manufactured production line and nonwoven are competitive among the similar machines all over the worldDear customer Welcome visit our company alibaba web site .below is my company and parts of sms nonwoven machinery introduce .
C.L. Enterprise combining SMMS, PP nonwoven production line manufacture and R&D, production sales for SMS, PP, PET, PLA post-processing,bicomponent,,nonwovens.
C.L. is a comprehensive joint stock-holding partnership enterprise which also act as vice-president unit of CHINA as one of the limited liability company.
C.L. has great technical strength and pay lots of attention to innovation. Our specially designed and manufactured production line and nonwoven are competitive among the similar machines all over the world
Our company has past ISO-9001-2008 quality certificated system, metrological measurement system and standardization system .
we have exported and installed a lot of machine at home and aboard . we provide whole system of installation,commissioning,training service .By doing all of this for years,we won a good reputation at home and aboard..

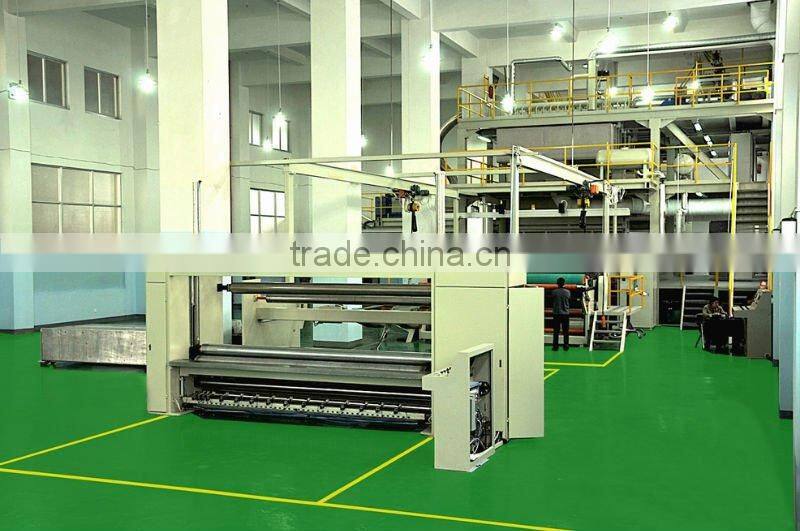

PP SPUNBOND NON WOVEN FABRIC MAKING MACHINE
A.Spinning
1.Feeding System : Max 800 Kg/h of raw material, Max 10% of the raw material for the colorful PP articles
2.Extruder temperature : (Adjusted according to the different MFI of different material )
Cooling Section: |
Section one: 200-203 ºC |
|
|
Section two: 210 - 240ºC |
Section three: 220-250ºC |
|
|
Section four: 220-250 ºC |
Section five: 220-250ºC |
|
|
Section six : 220-250ºC |
Flange section: 220-250ºC |
|
|
Flexible pipe section:220-250ºC |
Extruder rotate speed: 20-80rpm |
|
|
|
Extruder diameter:Ø 130mm, L/D = 30:1 |
|
3. Spinning manifold:
Manifold temperature 220 - 260ºC
Material temperature 200-240ºC
4. Metering Pump:
Specification: One pumps of 200cc/r
Rotate speed: 0-41rpm
B.Web forming
1.Suction : Max suction speed is 15m/s and the total air quantity is 20000 m³/h
2.Air distribution : Uniform at the cross direction, Decreasing from the airjet to the web former at the machine direction.
C.Thermalbonding
Width : 1600 mm Max speed: 160mm/min
Roller Type: The up one surface is fluting and the down one surface is smooth.
Roller diameter: 420mm Max temperature:260ºC
Bonding area: 19.01% Pressure: 50-100N/mm
D.Winding
Max width: 1600mm Max diameter: 1200mm
Max machinery speed:160m/min Max prodn.speed:160m/min
If you need more information about the machine please contact us ,we have professional sales manager will contact to you ,send you more detail information about sms spunbond non-woven machine
We designed and manufactured production line and nonwoven are competitive among the similar machines all over the worldC.L. chemical fiber consists of Wenzhou changlong textile technology co.,ltd (formerly known as Wenzhou ouhai C.L. chemical fiber fabric factory,changes in 28 DEC,2010),wenzhou chaolong textile machinery co.,ltd formerly known as Wenzhou second light industrial manchinery factory),Wenzhou yonghong chemical fiber fabric co.,ltd. . combining SMMS, PP nonwoven production line manufacture and R&D, production sales for SMS, PP, PET, PLA post-processing,bicomponent,,nonwovens. C.L. is a comprehensive joint stock-holding partnership enterprise which also act as vice-president unit of CHINA as one of the limited liability company.Wenzhou C.L. has great technical strength and pay lots of attention to innovation. Our specially designed and manufactured production line and nonwoven are competitive among the similar machines all over the worldOur company has past ISO-9001-2008 quality certificated system, metrological measurement system and standardization system .we have got the import and export right by ourselves and have exported and installed a lot of machine at home and aboard . we provide whole system of installation,commissioning,training service .By doing all of this for years,we won a good reputation at home and aboard..We equipped us several SMS,SMMS,PET,PLA ,post-processing,bicomponent, spunbond production lines in he factory ,and the annually output is about 20,000 tons.The width is 1.6m , 1.85m , 2.4m , 3.2m , GSM range from 10 to 250.We have different embossings like diamond,oval .The products have these characteristics like heat-resistance ,low shrinkage ,anti-corruption , anti-UV, air and water permeable,high ensile strength ,high tearing,high puncture resistance,nontoxic,long life .it widely used in industry , agriculture , military , chemistry , tourism ,sport , house decoration.packaging and medical field.
