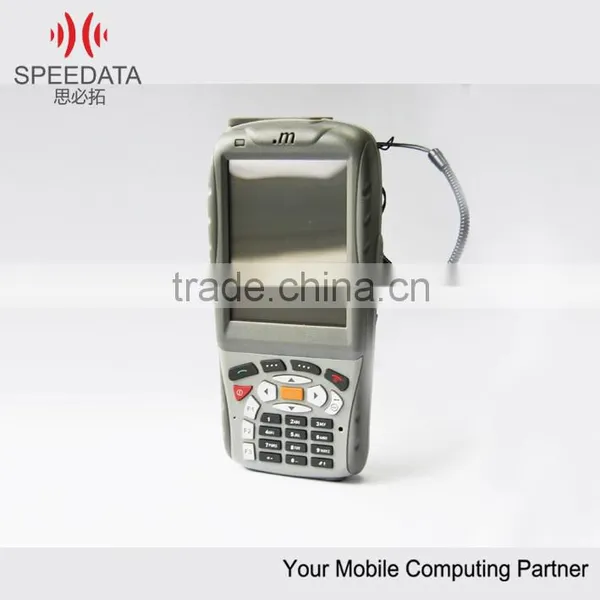

RFID UHF bar code data capture terminal device

Specifications

1. bar code data capture terminal
2. IP54/ 3.2inch screen
dows mobile 6./ android 2.3 OS
4. CE certificate

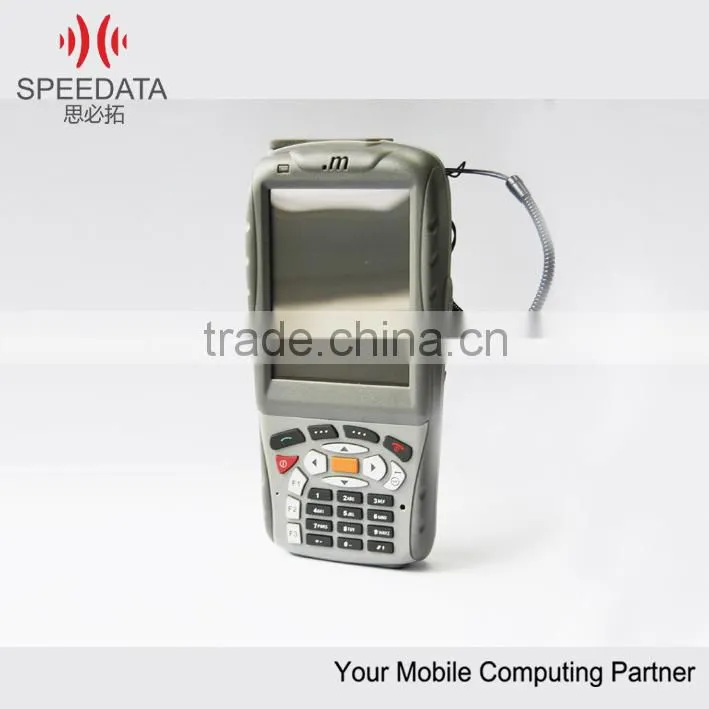

   RFID UHF bar code data capture terminal device





Speedata MT32 Series:



1. Support :1D/2D Barcode scanner/ HF RFID reader/

2.Low-cost Data Collector devices/ IP54

3.Interface:USB HOST/RS232/IIC (customized)

4.Symbol/ Honeywell / New land Scan engine,

5.ISO14443A/B and ISO15693 RFID reader

6.  bar code data capture terminal





Specification Data

Core board
WM6.1/6.5 OS	option 1	Marvell PXA310(624MHz)+qualcomm (GSM band 900/1800/1900MHz, GPRS, EDGE/WCDMA 2100MHz HSDPA 3.6Mbps)
Win CE 6.0 OS	option 2	Marvell PXA300(No communication module)
Android OS	yes	Marvell PXA910(806MHz)+qualcomm (GSM Quad-band 850 /900 /1800 /1900 MHz, GPRS, EDGE WCDMA 3G 900/1710/2100MHz HSDPA 3.6Mbps
Memory	Flash ROM	512MB
	RAM	512MB DDR (256MB for windows mobile OS)
	Extend Slot	Micro SD 16G (SDHC)
Motherboard
Display		3.2inch TFT LCD (Transflective screen QVGA)
touch screen		4-wire resistive
Form Factor		Bar type classical Pocket PC,Industrial appearance
GPS		Qualcomm chipset (WM OS)
		UBLOX module (Android OS )
Bluetooth		Bluetooth SIG version 2.0 compliant; Supported profiles: headset, hands-free, object push, serial port, dial-up network
WiFi		WiFi (802.11 b/g)
DGPS	option 1	ublox lea- 6N
	option 2	ublox lea- 6T
RFID Reader	option 1	HF RFID(13.56MHz ISO 14443A/B)
	yes	HF RFID(13.56MHz ISO 1443A/B   ISO 15693)
barcode scanner	option 1	NEWLAND:EM1300(1D Infrared barcode reader)
	option 2	NEWLAND:EM3000(1D/2D barcode reader)
	yes	symbol:SE955(1D laser barcode reader)
	option 4	HoneyWell:N4313 (1D laser barcode reader)
	option 5	Honeywell:5100(1D/2D barcode reader)
	option 6	symbol se4500(1D&2D barcode reader)
External Interface		USB HOST/RS232(Customized)
Protection class		IP54
Drop resistance level		1.5m
Camera	Camera	5MP AF
	Video	Support still image and video capture
Keypad	Front	30keys
	Side	4keys
Interface	Mini-USB connector	USB2.0 connection
	SIM card slot	Yes
	PSAM card slot	option
	TF card slot	Yes
	power jack	Yes
	Audio Jack	Yes
Battery	Type	rechargeable Li-ion battery 3600mAh
	Standby Time	500hours
	Calls Time	Up to 6hours
	Charging Time	4 hours
Physical Characteristics	Dimension	149*72*28mm
	Weight	>300g with battery (according config)















Using open OS platforms with flexible configuration, provide customers with solution for mobile computing,

 networking and mobile commerce.
