Help CenterHydraulic Press Double End Pipe Chamfering Machine
Related Products
XT45 Steel flat chamfering machine for welded steel pipe
HeBei BoTou BoHeng Technology Metallurgical equipment Co.,ltd is a professinal manufacturer for new and hi-tech welded pipe and open cold bending equipment.
We have developed the technology based on introduction of Japan technology.As for the production,we produce all equipment strictly according to Japan standard,the Advanced configuration,consistent quality,excellent performance have enjoyed very good popularity in the international market,the machines have achieved world advance level.
The goods quality and after sale service are the most important core competence for a company. Our company insists on the ideology of close to customers, close to market, full service of without distance.
Function:

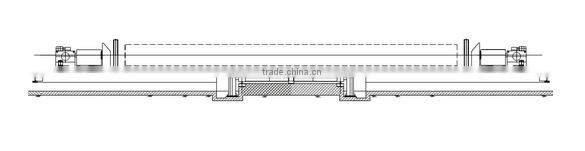

It's provided to mill the two ends of the welded pipe and chamfer the inner and outer edges. The whole on-line procedure is cyclically done automaticallt and continuously. It features reasonable design,compact structure,smooth traveling,reliable working,easy operation and convenient maintenance.
Models and main parameters:
Model |
Maching item |
Motor power |
Boundary dimension(mm) |
|||
|
Diameter (mm) |
Thickness (mm) |
Length (m) |
Cutting motor |
Stepper motor |
||
XT45 |
10-50 |
1-3.5 |
4-7 |
AC4x2 |
AC5.5 |
10300*2300*1830 |
XT76 |
20-76 |
1-4.5 |
4-7 |
AC4x2 |
AC7.5 |
10020*5205*2020 |
XT89 |
21-89 |
2-4.5 |
4-7 |
AC4x2 |
AC7.5 |
10020*6260*2060 |
XT114 |
48-114 |
2-5.5 |
4-8 |
AC7.5x2 |
AC15 |
11635*2500*2200 |
XT165 |
89-165 |
2-6.5 |
4-10 |
AC15x2 |
HydraulicAC15x2 |
13400*2900*2050 |
XT219 |
114-219 |
2-8 |
4-10 |
AC22x2 |
HydraulicAC15x2 |
13400*2900*2150 |
XT325 |
140-325 |
4-12.7 |
6-12 |
AC22x2 |
HydraulicAC22x2 |
15000*3500*2200 |
OEM service is avaliable.
Warranty period: 12 months
Process flow:

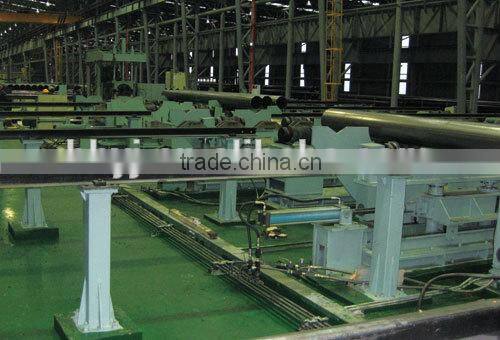

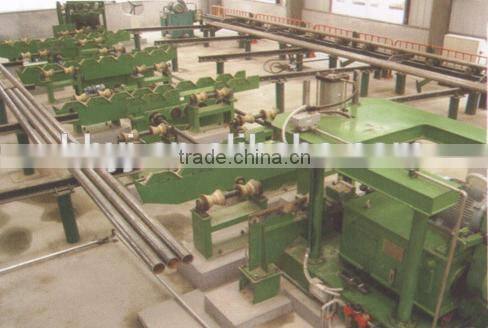

Align the pipe on bench →carry device → feed the pipe into end-facing center →Hydraulic clamp →press when machine head advance to cutting position → the head return after cutting finished →Clamp open→carry device → pull out the pipe →feed another piece to start next cycle.
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal welded pipe/tube making production line and auxiliary equipment.
2. Q: How to choose the pipe/tube end machines?
A: You have to inform us following details:
- Max. outside diameter
- Wall thickness range
- The pipe material
4. Q: Where is your factory located?
A: Our factory is located in Cangzhou City,Hebei Province, about 2.5 hours to Shijiazhuang by car. You can fly to
Shijiazhuang zhengding airport directly.
5. What about the lead time for the production?
Honestly, it depends on the order quantity and the season you place the order. Our deliver time is about 30-180 days for one machine. Generally speaking, we suggest that you start inquiry half a year before the date you would like to get the machine at your country. .
Thanks for your visiting, any information from you is welcomed!
