Horizontal spiral live sets

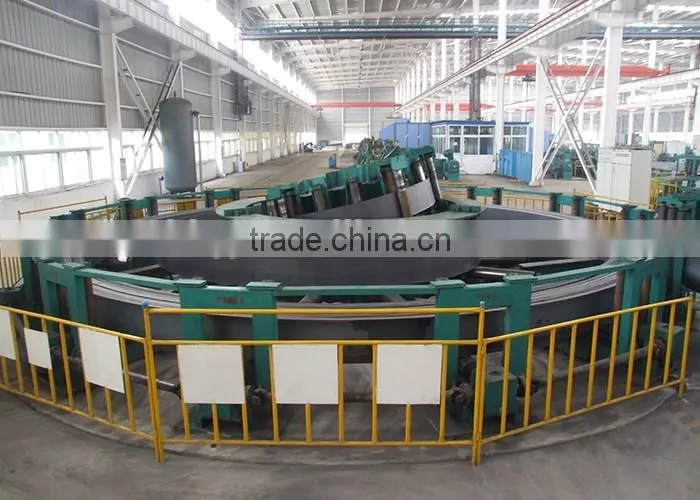

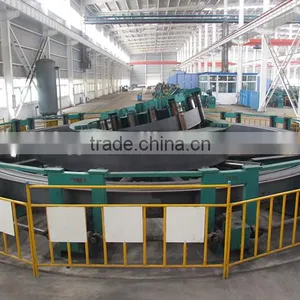

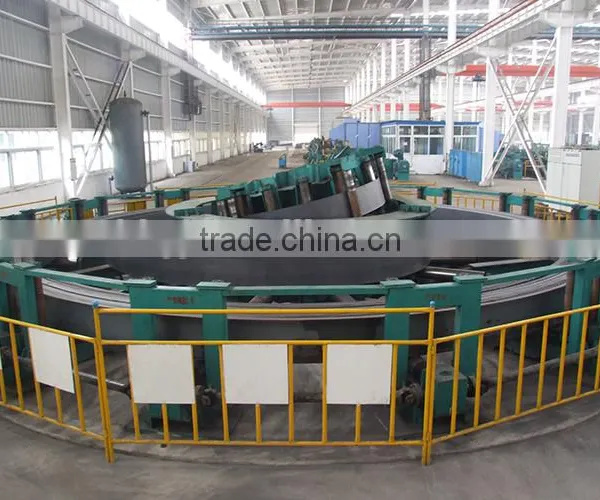

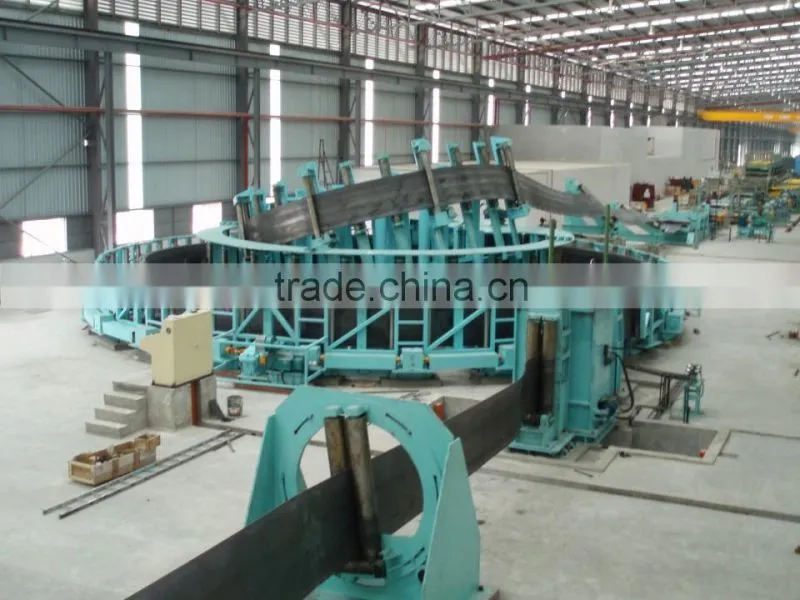

The accumulator is a strip storing unit in the longitudinally welded pipe production line and cold bending steel production line.It stores certain amount of strip and save time for the shear welder to shear and weld the ends to the strips and ensure the production line to be carried on smoothly and continuously.It is one of the main equipment of ERW pipe production line and cold bending steel production line.
Accumulator models& main parameters | ||||||
Models |
Width of steel strip (mm) |
Thickness of steel strip (mm) |
Max storage capacity m2 |
Max feed rate (m/min) |
Structure form
|
Size (m) |
WHT20 |
20-70 |
0.5-1.5 |
0.9 |
200 |
horizontal |
4*3*2.0 |
WHT32 |
20-100 |
0.8-2.0 |
2.0 |
200 |
5*3.5*2.6 |
|
WHT50 |
30-160 |
0.8-2.5 |
2.2 |
200 |
7*4*2.6 |
|
WHT75 |
60-240 |
1.0-3.0 |
2.5 |
200 |
8*4.5*2.6 |
|
WHT89 |
20-270 |
1.5-1.5 |
108 |
200 |
10*6*2.6 |
|
WHT114 |
90-380 |
2-5.5 |
2.7 |
180 |
11*6*2.6 |
|
WHT165 |
180-550 |
2-6 |
5.4 |
190 |
22*8.5*2.4 |
|
WHT219 |
350-700 |
3-8 |
7.2 |
190 |
28.5*9.5*2.4 |
|
WHT325 |
420-1100 |
4-12.7/4-10.5 |
3.8/300-600m |
120 |
45*15*4/ 48.5*15*4 |
|

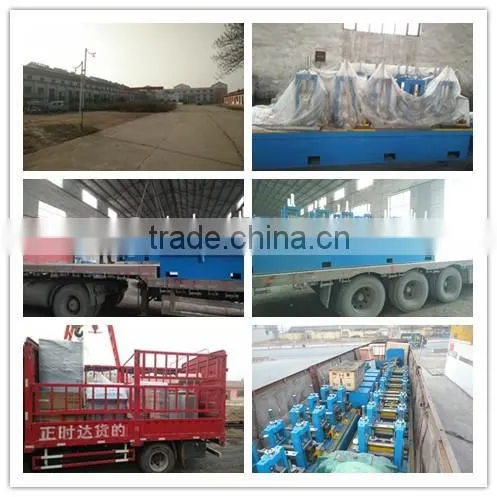

Packing for welded tube mill line is standard export package, which is suitable for container transportation, wooden package and film package available.
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company. We have our own technical team and workshop. Welcome to visit us.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings, material information, you special requirements.
Q: What I should do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: Why I should choose you, what’s the different between you and other Chinese supplier
A: We are concentrate on this area for more than 10 years. Our pipe making machine line directly export to Korea,Vietnam, Indonesia,South Africa,Kazakhstan, etc.
