Help CenterSpeedata Customization Portable Biometrics Fingerprint Uhf Rfid Reader
Related Products
-
With WI-FI/GPRS/Camera With 3G/ Wifi/ SDK Free 2015 Uhf Rfid Long Range ReaderUS$ 340 - 700MOQ: 1 Unit -
Rugged Multifunction Smart Device Cheapest Usb Uhf Rfid Nfc ReaderUS$ 340 - 700MOQ: 1 Unit
-
FreeSDK Handheld Terminal Good Quality Android Newest Uhf Integrated Rfid ReaderUS$ 320 - 650MOQ: 1 Unit
-
CE/ROHS Certificated Personal Digital Assistant Uhf Rfid Reader With Demo SoftwareUS$ 320 - 650MOQ: 1 Unit
-
Wholesale Portable Support Java and C Language Long Range Integrative Rfid ReaderUS$ 340 - 700MOQ: 1 Unit
Speedata Customization portable biometrics fingerprint uhf rfid reader
Description of biometrics fingerprint uhf rfid reader:
1. Android 4.0/ Windows mobile 6.x/ WinCE 3OS all in one pda and easy changed.
2. IP65 industrial standard waterproof,dustproof,drop resistance
3. 3.5inch color touch screen(640*480) ,outdoor sunlight visible
4. 1d and 2d barcode reader, RFID reader, thermal printer, fingerprint reader, PSAM, DGPS can all in one.
5. Support 860-960Mhz UHF RFID reader, can read 70-90cm distance.
Features of biometrics fingerprint uhf rfid reader:
Support Android 4.0 OS, Windows mobile 6.1/6.5 OS, WinCE OS
Rugged IP65
MT35 can withstand multiple drops onto concrete from 1.5 meters.
IP65: Waterproof, dustproof and drop resistant. Suitable for all kinds of complicated industrial environment.
4500mAH large capacity battery
Long time continuous working with standard 4500mAH.
Connect port
USB 2.0/RS232/USB Host/ Cradle/ SIM card/ TF card/ Power jack/ Audio Jack
Specifications of biometrics fingerprint uhf rfid reader:
| OS option | |||||
| OS | option 1 | Windows mobile 6.1/6.5 | |||
| option 2 | WM CE 6 | ||||
| YES | Android 4.0 | ||||
| Hardware | |||||
| Core board | |||||
| CPU | TI3715 A8 1Ghz | ||||
| WWLAN | option 1 | without modem | |||
| yes | Huawei MU609 Module: GSM band 850/900/1800/1900MHz, GPRS, EDGE UMTS 850/900/1900/ 2100MHz HSPA ) | ||||
| Memory | Flash ROM | 512MB | |||
| RAM | 512MB DDR | ||||
| Extend Slot | Micro SD 32G (SDHC) | ||||
| Motherboard | |||||
| Display | 3.5inch TFT LCD (Transflective screen VGA ) | ||||
| touch screen | 4-wire resistive | ||||
| Form Factor | Bar type classical Pocket PC,Industrial appearance | ||||
| GPS | UBLOX 6010 | ||||
| Bluetooth | JORJIN WG7310 Bluetooth | ||||
| WiFi | JORJIN WG7310 WiFi (802.11 b/g/n) | ||||
| PSAM(Optional) | ISO7816 *2 (SIM card interfance) | ||||
| MSR(Optional) | Compatible with one, two, three track. (without PCI, EMV security certification.) | ||||
| IC reader(Optional) | ISO7816 ID-1 | ||||
| Fingerprint reader(Optional) | SM-621B(Optical fingerprint) | ||||
| Thermal Printer (Optional) | Direct thermal line printing | ||||
| 433MHz Wireless transmission(Optional) | Require customers to provide 433Mhz wireless modules or specifications. | ||||
| Far Infrared Meter Reading (Optional) | IEC62056-21(IEC1107) communication protocol | ||||
| RFID Reader | option 1 | LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX) | |||
| option 2 | LF RFID(125KHz) | ||||
| option 3 | HF RFID(13.56MHz ISO 1443A/B ISO 15693) | ||||
| option 4 | NFC Reader (only android OS) | ||||
| option 5 | 2.4G RFID(Customer specified module, customized according to customer's module.) | ||||
| option 6 | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset | ||||
| option 7 | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) with PR9200 shipset | ||||
| barcode scanner | option 1 | NEWLAND:EM1300(1D barcode reader) | |||
| option 2 | NEWLAND:EM3000(1D/2D barcode reader) | ||||
| option 3 | symbol:SE955(1D laser barcode reader) | ||||
| option 4 | HoneyWell:N4313 (1D laser barcode reader) | ||||
| option 5 | Symbol: se4500(1D&2D barcode reader) | ||||
| External Interface | USB HOST/RS232(Customized) | ||||
| Protection class | IP65 | ||||
| Drop resistance level | 1.5m | ||||
| Camera Function | Camera | 5MP Camera | |||
| Video | Support still image and video capture | ||||
| Keypad | Front | 30keys | |||
| Side | 4keys | ||||
| Interface | Mini-USB connector | USB2.0 connection | |||
| SIM card slot | Yes | ||||
| TF card slot | Yes | ||||
| power jack | Yes | ||||
| Audio Jack | Yes | ||||
| Battery | Type | rechargeable Li-ion battery 4500mAh | |||
| Standby Time | 500hours | ||||
| Calls Time | Up to 6hours | ||||
| Charging Time | 4 hours | ||||
| Physical Characteristics | Dimension | 182*82*36mm | |||
| Weight | >400g with battery (according config) | ||||

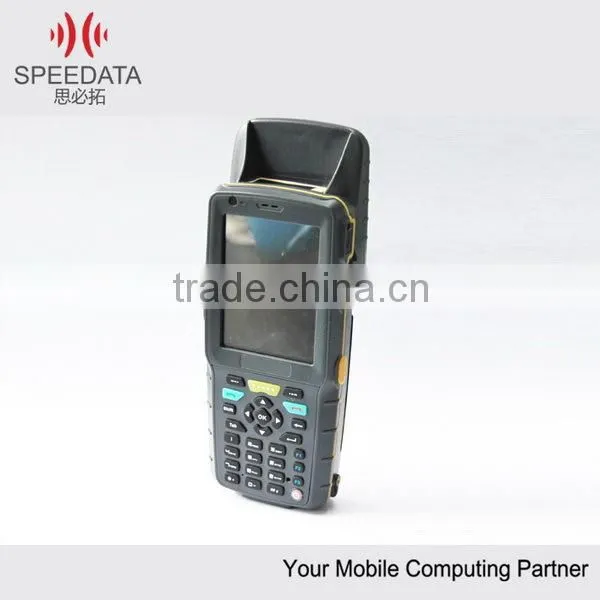

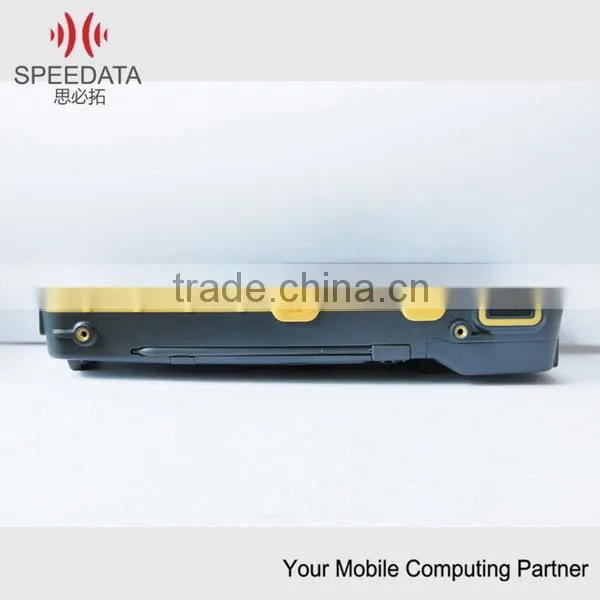

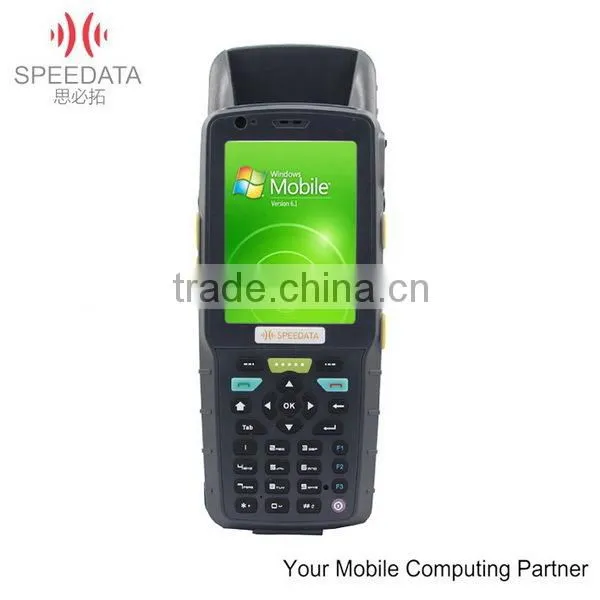

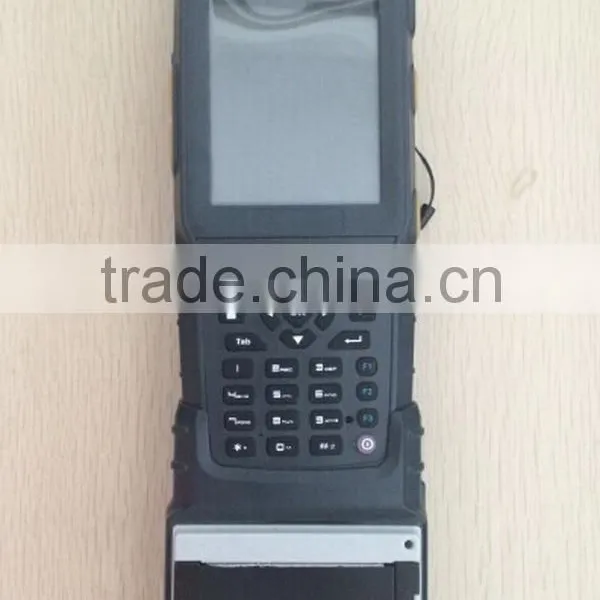

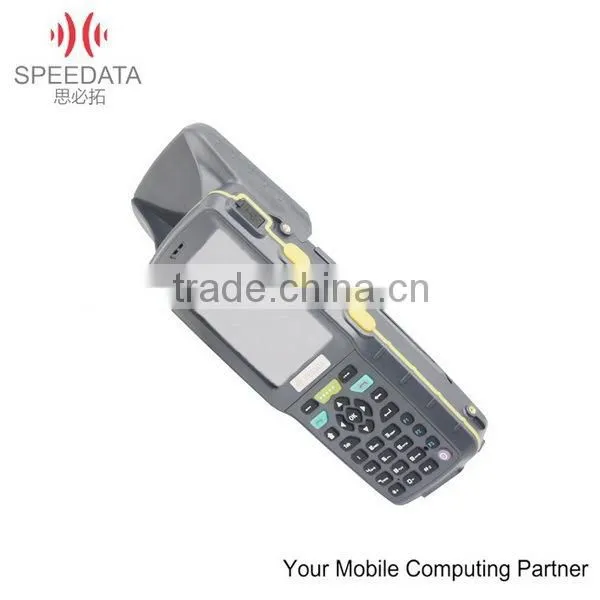

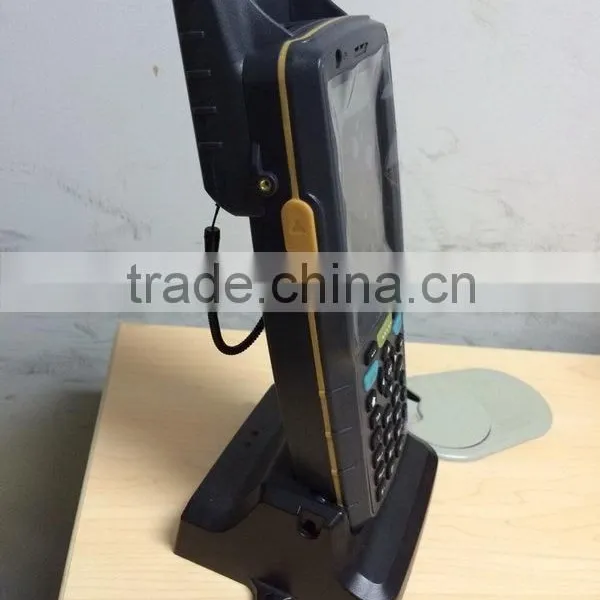

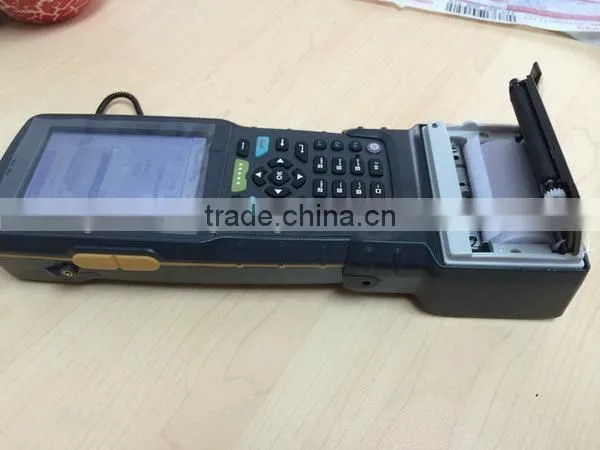

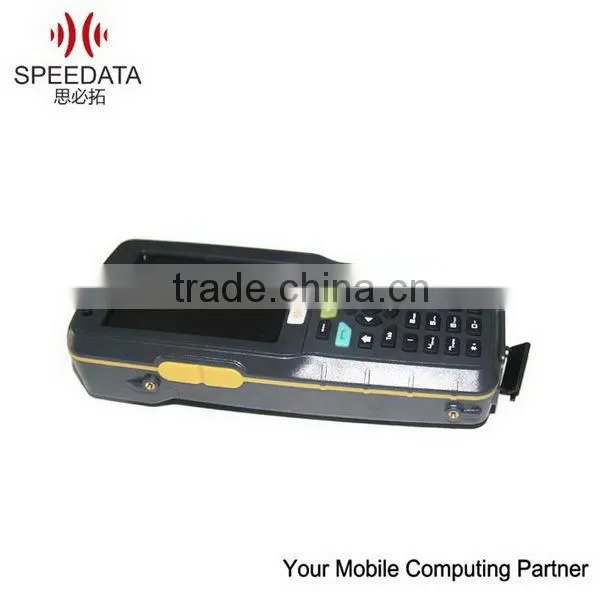

Pictures of biometrics fingerprint uhf rfid reader:
About the company:
Geofanci Tech Co., Ltd is a professional manufacturer of industrial PDA/ portable data collector, wireless barcode reader , android barcode scanner, android bluetooth rfid reader, tablet with rfid reader, android handheld barcode scanner, parking ticket machine, bluetooth fingerprint reader , waterproof tablet pc ip65 in China for 5 years. We have kinds of customers in all over the world.
biometrics fingerprint uhf rfid reader
