FreeSDK Handheld Terminal industrial android uhf rfid reader with gps

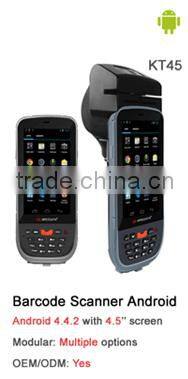

Model number: KT45-UHF
With 3G, WIFI, Bluetooth, GPS, Camera, 860-960MHz RFID reader
Selling Point>>>
- Quad-core 1.3Ghz ARM® Cortex-A7 MPCoreTM (LPDDR2 and LPDDR3)
- 4.5inch Capacitive touch screen, mode shape, multi-colours.
- Support 1d Symbol se955 and Honeywell N4313 barcode scanner
- IP65: Waterproof, dustproof and drop resistant. Suitable for all kinds of complicated industrial environment.
- more function module available such as:433Mhz module, Zigbee, MSR, IC card reader.
- 2 SIM Card slot
- 6 Years Manufacture professional R&D in Industrial PDArs
Introduction:
1. Latest android 4.4 version, 4.5inch screen, low price.
2. Support WiFi, Communicate with LAN by wireless network;
3. Outdoor user can keep in touch with Headquarters at any time by GPRS;
4. Integrated Long Range 2d Laser Barcode Scanner;
5. Handwrite input, support signature capture function;
6. Industry IP65 Hardware design and can be used in Harsh environment;
KT45 data sheet
| android OS | |||||
| OS | Android 4.4.2 | ||||
| Hardware | |||||
| Core board | CPU | Quad-core 1.3Ghz ARM® Cortex-A7 MPCoreTM (LPDDR2 and LPDDR3) | |||
| WWLAN | GSM band 850/900/1800/1900MHz, Class 12 GPRS, EDGE UMTS 850/900/1900/ 2100MHz HSPA | ||||
| Flash ROM | 8GB | ||||
| RAM | 1GB DDR3 | ||||
| Motherboard | |||||
| Display @ | 4.5inch IPS 480*854 | ||||
| touch screen | Multi-point touch capacitive screen | ||||
| Form Factor | Bar type classical PDA,Industrial appearance | ||||
| GPS | Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS | ||||
| Bluetooth | v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE) | ||||
| WiFi | 2.4Ghz 802.11 b/g/n | ||||
| MSR(Optional) | Compatible with one, two, three track. (without PCI, EMV security certification.) | ||||
| PSAM(Optional) | ISO7816 (SIM card interfance) | ||||
| IC card reader(Optional) | ISO7816 ID-1 | ||||
| Fingerprint reader | option 1 | UPEK TCS1 (meet the FBI’s FIPS-201) | |||
| option 2 | UPEK TCS2SS | ||||
| printer | 2 inch Direct thermal line printing | ||||
| Far Infrared Meter Reading (Optional) | IEC62056-21(IEC1107) communication protocol | ||||
| 433Mhz module | Require customers to provide 433Mhz wireless modules or specifications. | ||||
| zigbee | Require customers to provide 433Mhz wireless modules or specifications. | ||||
| RFID Reader | option 1 | LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX) | |||
| option 2 | LF RFID(125KHz) | ||||
| option 3 | HF RFID(13.56MHz ISO 1443A/B ISO 15693) | ||||
| option 4 | NFC(include 13.56MHz ISO 1443A/B ) | ||||
| option 5 | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset | ||||
| option 6 | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) -with PR92000 shipset | ||||
| barcode scanner | option 1 | NEWLAND:EM1300(1D barcode reader) | |||
| option 2 | NEWLAND:EM3000(1D/2D barcode reader) | ||||
| option 3 | symbol:SE955(1D laser barcode reader) | ||||
| option 4 | HoneyWell:N4313 (1D laser barcode reader) | ||||
| option 5 | Symbol: se4500(1D&2D barcode reader) | ||||
| External Interface | USB HOST/RS232(Customized) | ||||
| Protection class | IP65 | ||||
| Drop resistance level | 1.5m | ||||
| Camera Function | Camera | 8MP Camera | |||
| Video | Support still image and video capture | ||||
| Sensor | G-sensor | LIS3DH | |||
| Compass | AK09911C | ||||
| Gyro | MPU3050C | ||||
| Light | STK3410 | ||||
| Keypad | Front | 17 | |||
| Side | 4 | ||||
| Interface | Mini-USB connector | USB2.0 connection | |||
| SIM card slot | *2 | ||||
| TF card slot | Yes | ||||
| power jack | Yes | ||||
| Audio Jack | Yes | ||||
| Battery | Type | rechargeable Li-ion battery 4500mAh | |||
| Standby Time | 500hours | ||||
| Calls Time | Up to 6hours | ||||
| Charging Time | 4 hours | ||||
| Physical Characteristics | Dimension | 175*76*27mm | |||
| Weight | >400g with battery (according config) | ||||
UHF RFID Module specification:
| UHF RFID antanna | Circularly polarized Dielectric Ceramics | ||||
| Antenna model: 40*40*5mm | |||||
| Frequency Range: 922.5MHz±8MHz | |||||
| Gain(Typical): 2dBi Based on65×65mm ground plane | |||||
| Impendence: 50 ohm | |||||

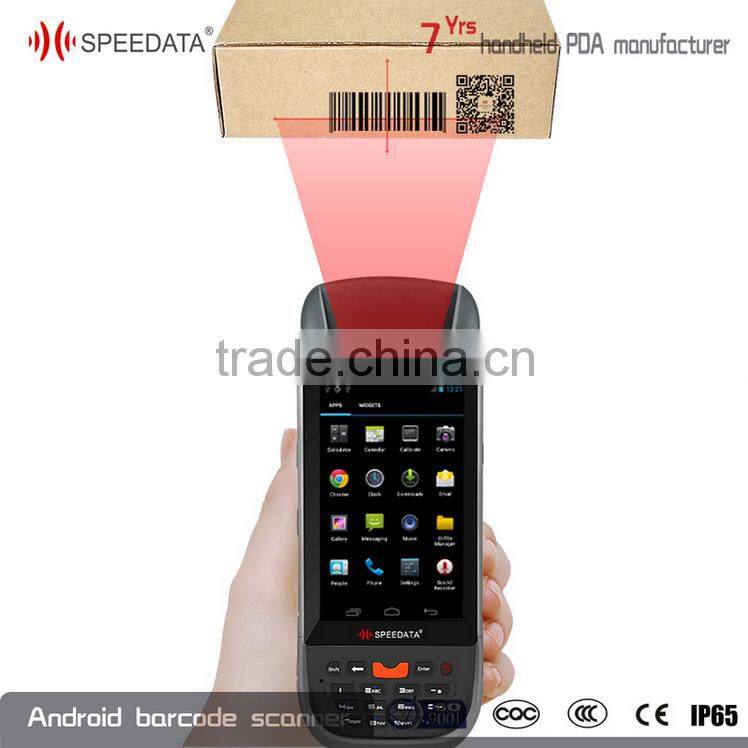

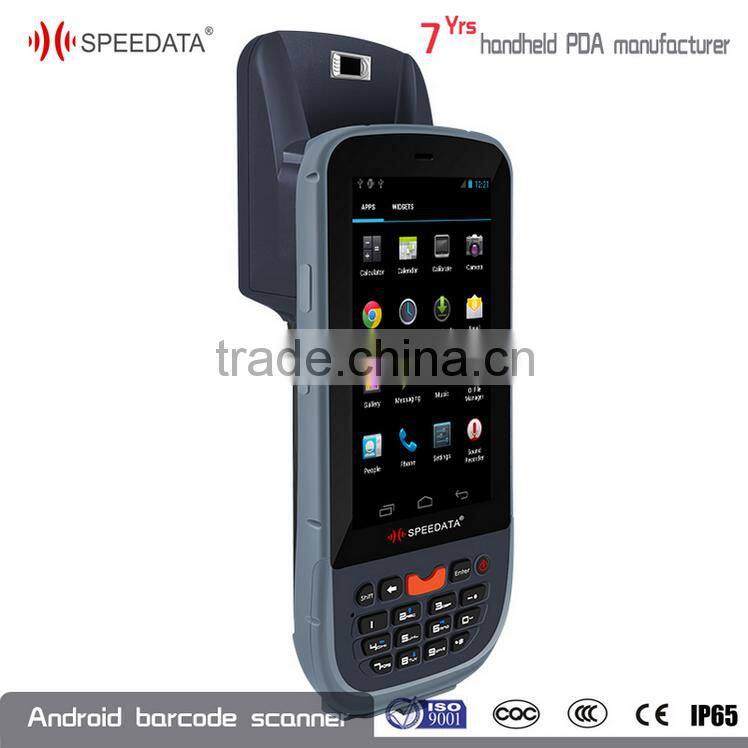

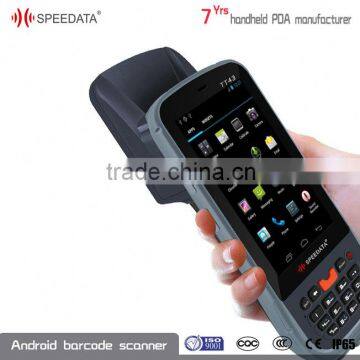

Pictures of android uhf rfid reader with gps:
|
|
|
|
1.As a hardware PDA producer, We also offer OEM/ODM design and manufacturing service for hardware required for Data collector terminal PDA, including
- Brand & Logo
- Different colors
- Multiple modules integration
- Wide industrial and business solutions
- Competitive and diverse price ranges
1. Price ranges |
Factory direct with competitive and wholesale price with different demands |
2. Modules Options |
Over 18 kinds of module functions are optional to meet your demands |
3. 3 Operation System |
3 Operation System for inference: Win Mobile/CE and Android |
4. Colors Options |
4 kinds of colors to choose: yellow, green, grey and blue. |
5. Customizations |
Support OEM/ODM services with LOGO or Mainboard for our customers by Foxconn |
6. Wide Solutions |
it supplies wide and various industrial solutions to make effective enterprises. |
More customized services are provided to make your enterprises more effective and efficient.
2.As for software integration , We not only support 18 kinds of multiple modules but also supply 3 compatible operating systems. Those Including
- The most popular Android 4.4 and Windows CE or Mobile
- 1D/2D barcode scanner
- LF/HF/UHF RFID as well as NFC RFID Function.
- Biometric fingerprint reader
- Thermal printer
- DGPS/ PSAM/ 433M/ IC Card/ MSR/ IR Meter Reading

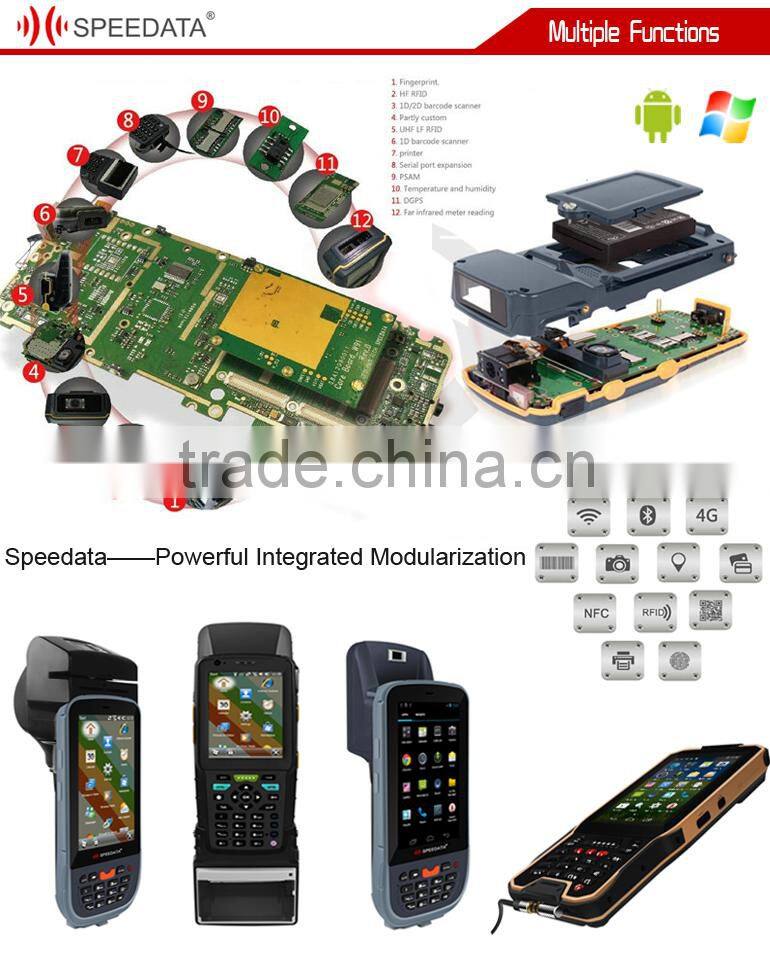

More Modulars and functions are developed as below:
| 1.1D/2D barcode scanner | 5.Thermal Printer | 9. 433M | 13.Bluetooth /WiFi |
| 2.Fingerprint reader | 6.IC reader | 10.ZigBee | 14.GPS/GPRS |
| 3.LF/HF/UHF RFID reader | 7.PSAM | 11.IR Meter reading | 15.2G /3G /4G |
| 4.NFC RFID reade | 8.MSR reader | 12.Temperature Reader | 16.Camera/Video |
……
1. R & D technology support
- Our R & D team have around 28 software & hardware hightech engineers, 27% of the whole employees, who have professional background in Electrical Engineering.
- Atthe same time, our director Mr shao and genernal manager Mr Wu have extensive experiences in hardware development and product management.
- since its reasonable structure and professional ability , our products become more stable and compatible.
As expected, we have built up a strong spirit of collaboration teamwork and gained a good reputation from our customers.
2. Strong customized capabilities
- Speedata serves wide industries and fields, such as the electric power, mapping, egovernment, logistics, traceability management, fixed asset management.etc. we have accumulated rich and extensive experiences in those industries.
- we pay more attention to design personalized software and hardware products as well as whole solutions development.
- The products will develop in the direction of the platformization and modularization and put technology into the public platform to simplify for its secondary development.
At the same time, we supply core board customization, sensors and modular development to combine with platform quickly to meet customers demand.
As a OEM/ODM and R&D manufacturer of barcode scanners, we support you:
- Completely Free SDK and technical support for you.
- ODM/OEM and 6 kinds of customization services according to your needs.
- 13months warranty for your devices and other parts. and 6 months for the batteries. Exend warranty,it'll cost 0.5% for each per year.
- Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them.
Beijing Speedata Technology Co., Ltd (stock code: 832442 ), founded in 2008, is a provider of IoT (Internet of Things) solutions and OEM/ODM manufacturer of wireless hardware terminal and software solution, focusing on such wireless network enabling technologies as 1D/2D Barcode scanner, RFID , 433M, MSR, ZigBee, PSAM, and IC card reader...
We are headquartered in Beijing, with sales/R&D offices in Shanghai, Shenzhen, Dalian, and Tianjin city of China, and two manufacturing facilities, one in Beijing and one in Tianjin.
At the same time, we successfully cooperated with Foxconn by OEM/ODM in Shenzhen.
