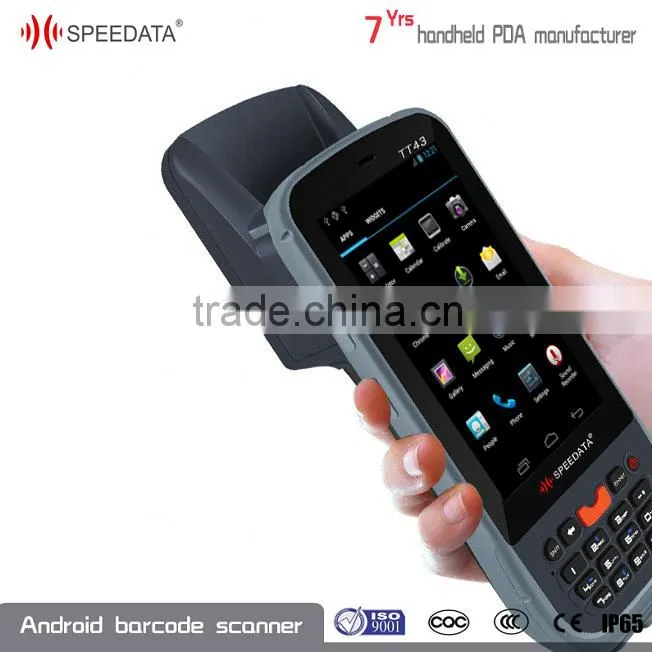

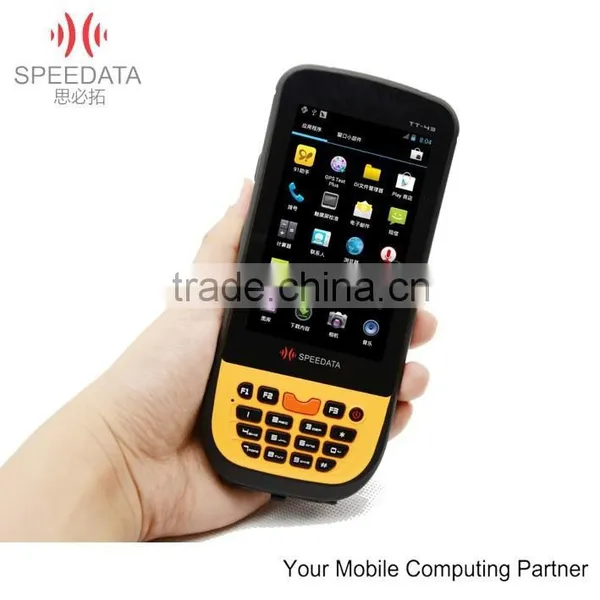

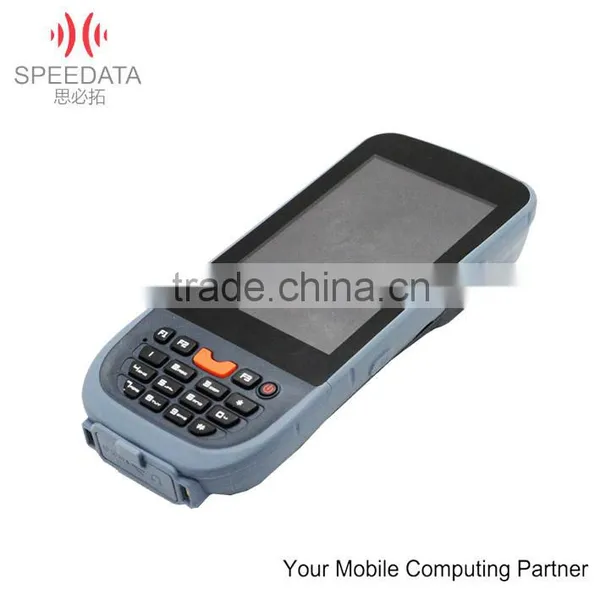

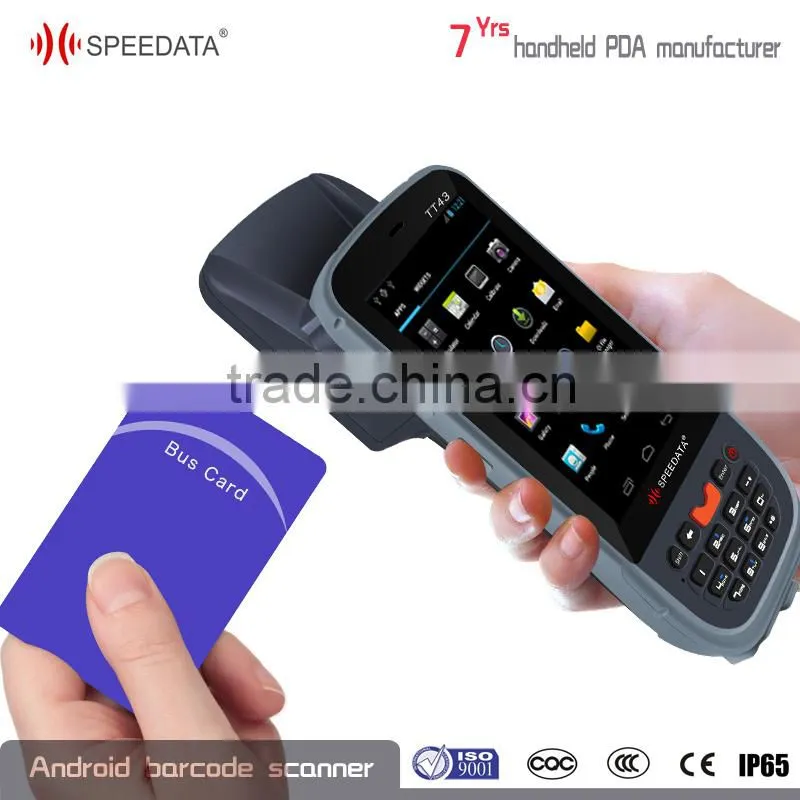

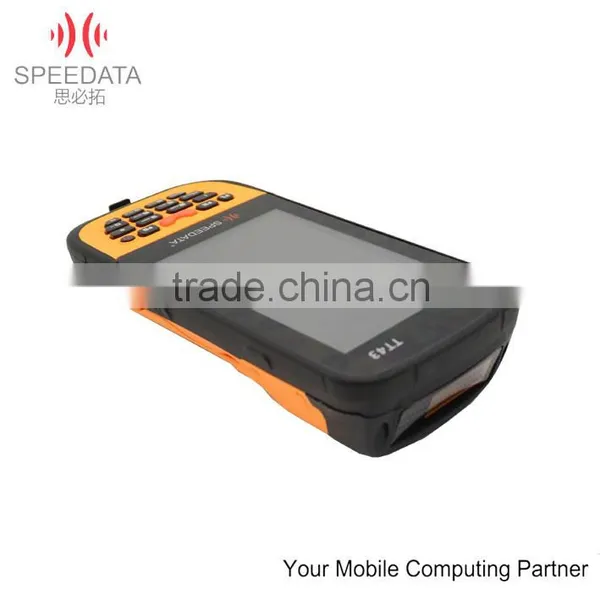

portable UHF RFID reader handheld bar code scanner writher with 4.5inch screen display
Model number: TT43-UHF
With 3G, WIFI, Bluetooth, GPS, Camera, UHF RFID reader
Selling Point of Portable UHF RFID Reader
- TI3715 A8 1Ghz CPU, Hawei communication module
- 4.3inch Capacitive touch screen, mode shape, multi-colours.
- Support UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset
- IP65: Waterproof, dustproof and drop resistant. Suitable for all kinds of complicated industrial environment.
- product quality assurance, it passed the CE& RoHs
- 6 Years Manufacture professional R&D in Industrial PDAs
Introduction of Portable UHF RFID Reader
- Logistics and warehouse management: Goods flow, warehouse management, and the flowing management of mail, parcel, luggage
- Supply chain application area: item supply process application etc
- Product counterfeit-proof inspection: using memory's write-protect function inside tags, and identifying with true-false of products.
- Other fields: used widely in club management, libary, school, consumption management, time management, dinner management, pool management.
TT43 specifications of of Portable UHF RFID Reader
| Development Environment | |

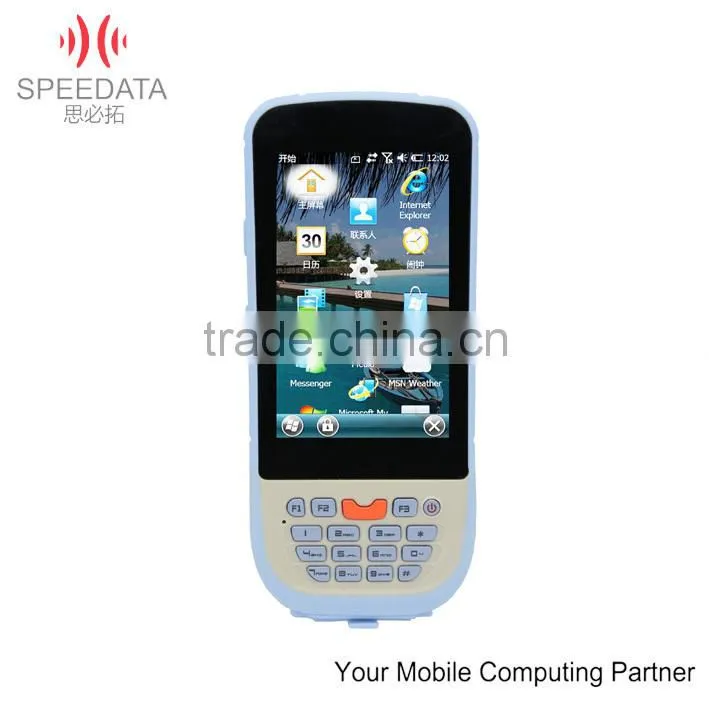

| Operating System | Windows Mobile 6.1/6.5 (Optional 1) |
| Windows CE 6.0 (Optional 2) | |
| Android 4.0.3 | |
| SDK | Software Development Kit |
| Language | C#, java |
| Tool | Microsoft Visual Studio 2005 |
| Fundamental Characteristics | |
| CPU | TI AM3715 A8 1Ghz |
| Memory | 512MB DDR RAM + 512MB Frash ROM |
| Storage | Micro SD/TF card max.32GB expansion |
| Display | 4.5-inch IPS 854*480 (Without Transflective screen) |
| 4-wire resistive touch screen | |
| Communications | |
| WWLAN | Without modem (Optional 1) |
|
Huawei MU609 Module: GSM band 850/900/1800/1900MHz, GPRS, EDGE UMTS 850/900/1900/ 2100MHz HSPA ) (Optional 2) | |
| WiFi | JORJIN WG7310 WiFi (802.11 b/g/n) |
| Bluetooth | JORJIN WG7310 Bluetooth |
| GPS | UBLOX 6010 |
| Physical Characteristics | |
| Dimensions | 175*76*28mm |
| Weight | more 400g with battery (according config) |
| Expansion Slots | 2*PSAM, 1*SIM |
| Battery | rechargeable li-ion battery 4500mAh 3.7V |
| Or rechargeable li-ion battery 2250mAh 7.4V (if with printer) | |
| 500-hours standby time, Up to 6-hours calling time, 4-hours charging time | |
| Camera | 5MP Camera |
| Video | Support still image and video capture |
| Audio | 3.5mm 4way plug |
| Keypad | Front 17keys, Side 4keys |
| Interfaces | 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack |
| USB Host/RS232 interface (Customized) | |
| User Environment | |
| Operating Temp. | -10 to 50℃ |
| Humidity | 10%RH - 90%RH (Non-condensing) |
| Protection class | IP65 |
| Drop resistance level | 1.5M |
TT43 more modules of of Portable UHF RFID Reader
| Barcode scanners (optional ) | |
| 1D Linear Scanner (Optional) | |
| 1D scanner | Symbol SE955 (Optional 1) |
| NEWLAND EM1300 (Optional 2) | |
| Symbol SE4500 (Optional 3) | |
| 2D Imager Scanner (Optional) | |
| 1D/2D scanner | NEWLAND EM3000 (Optional 1) |
| Symbol SE4500 (Optional 2) | |
| RFID readers | |
| LF RFID reader | (134.2khz, ISO11784/11785, FDX-B/HDX) (Optional 1) |
| (125KHz) (Optional 2) | |
| HF RFID reader | (13.56MHz ISO 14443A/B ISO 15693) |
| NFC reader | (include 13.56MHz ISO 14443A ISO 15693) |
| UHF RFID reader | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) /ISO18000-6A,B compatibility in direct mode----with AS3992 shipset |
| UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) with PR9200 shipset | |
| Biometric fingerprint (optional ) | |
| Fingerprint | UPEK TCS1 (meet the FBI’s FIPS-201) (Optional 1) |
| Fingerprint | UPEK TCS2SS (Optional 2) |
| Other Modules (optional ) | |
| DGPS | Ublox LEA-6T (with RTK) |
| PSAM | ISO7816 (SIM card interfance) |
| MSR | Compatible with one, two, three track. (without PCI, EMV security certification) |
| IC card reader | ISO7816 ID-1 |
| Printer | Integrate 2 inch Direct thermal line printing |
| Far Infrared Meter Reading | IEC62056-21 (IEC1107) communication protocol |
| 433Mhz | Require customers to provide 433Mhz wireless modules or specifications |
| Zigbee | Require customers to provide 433Mhz wireless modules or specifications |
Beijing Speedata Technology Co., Ltd (stock code: 832442 ), founded in 2008, is a provider of IoT (Internet of Things) solutions and OEM/ODM manufacturer of wireless hardware terminal and software solution, focusing on such wireless network enabling technologies as 1D/2D Barcode scanner, RFID , 433M, MSR, ZigBee, PSAM, and IC card reader...
We are headquartered in Beijing, with sales/R&D offices in Shanghai, Shenzhen, Dalian, and Tianjin city of China, and two manufacturing facilities, one in Beijing and one in Tianjin. At the same time, we successfully cooperated with Foxconn by OEM/ODM in Shenzhen.
As a hardware PDA producer, We also offer OEM/ODM design and manufacturing service for hardware required for Data collector terminal PDA, including
- Brand & Logo
- Different colors
- Multiple modules integration
- Wide industrial and business solutions
- Competitive and diverse price ranges
1. Price ranges |
Factory direct with competitive and wholesale price with different demands |
2. Modules Options |
Over 18 kinds of module functions are optional to meet your demands |
3. 3 Operation System |
3 Operation System for inference: Win Mobile/CE and Android |

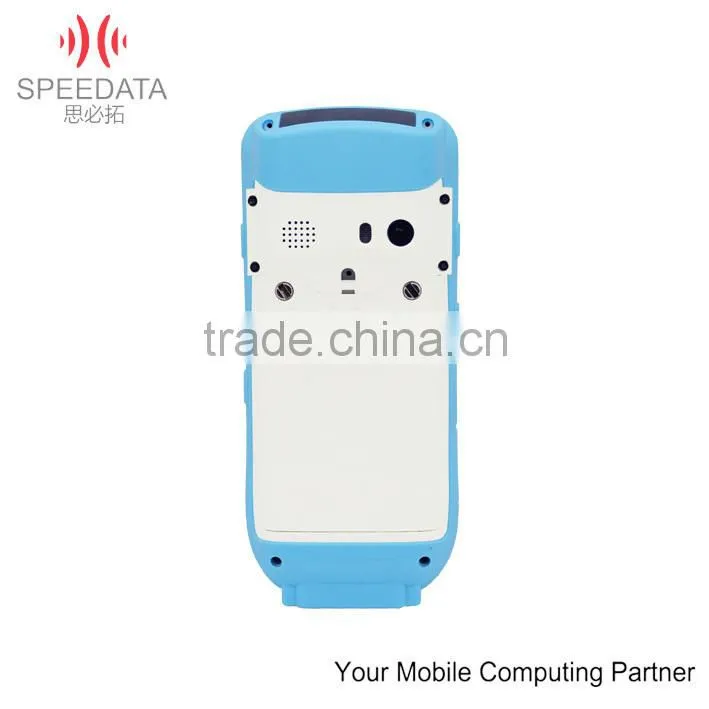

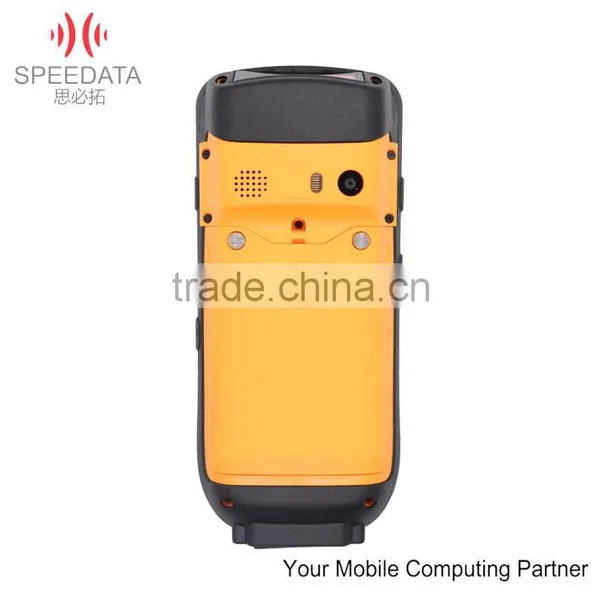

4. Colors Options |
4 kinds of colors to choose: yellow, green, grey and blue. |
5. Customizations |
Support OEM/ODM services with LOGO or Mainboard for our customers by Foxconn |
6. Wide Solutions |
it supplies wide and various industrial solutions to make effective enterprises. |
More customized services are provided to make your enterprises more effective and efficient.
We have a strong R&D team for not only hardware but also software, having developed the following solutions for our customers:
- Cold-chain logistics and transportation tracking
- meat product tracking
- Mobile police service
- Fixed-Assets management
- Tickets checking
More industrial solutions of management systems as following:
| 1.Logistics & Express | 7.Geomatics & Surveying | 13.Surveying and mapping |
| 2.Transportation | 8.Product tracking | 14.Agriculture |
| 3.Electric meter readings | 9.Health & pharmaceutical industry | 15.Water conservation |
| 4.Network community management | 10.Mobile police service | 16.Animal tracking & research |
| 5. Storage & Distribution | 11.Tobacco Logistics | 17.Retail chain |
| 6.Petrochemical inspection | 12.Fixed-assets management | …… |
As for software integration , We not only support 18 kinds of multiple modules but also supply 3 compatible operating systems. Those Including
- The most popular Android 4.4 and Windows CE or Mobile
- 1D/2D barcode scanner
- LF/HF/UHF RFID as well as NFC RFID Function.
- Biometric fingerprint reader
- Thermal printer
- DGPS/ PSAM/ 433M/ IC Card/ MSR/ IR Meter Reading
More Modulars and functions are developed as below:
| 1.1D/2D barcode scanner | 5.Thermal Printer | 9. 433M | 13.Bluetooth /WiFi |
| 2.Fingerprint reader | 6.IC reader | 10.ZigBee | 14.GPS/GPRS |
| 3.LF/HF/UHF RFID reader | 7.PSAM | 11.IR Meter reading | 15.2G /3G /4G |
| 4.NFC RFID reade | 8.MSR reader | 12.Temperature Reader | 16.Camera/Video |
……
With 7 years of rapid growth, we have built solid partnership with many big companies, Huazhu Hotels Group, Bright Dairy, Unilever, Hainan Mobile Tsinghua Tongfang, and Foxconn, to name just a few.
We are seeking to bring the latest technologies to more people and bussiness around the world.
