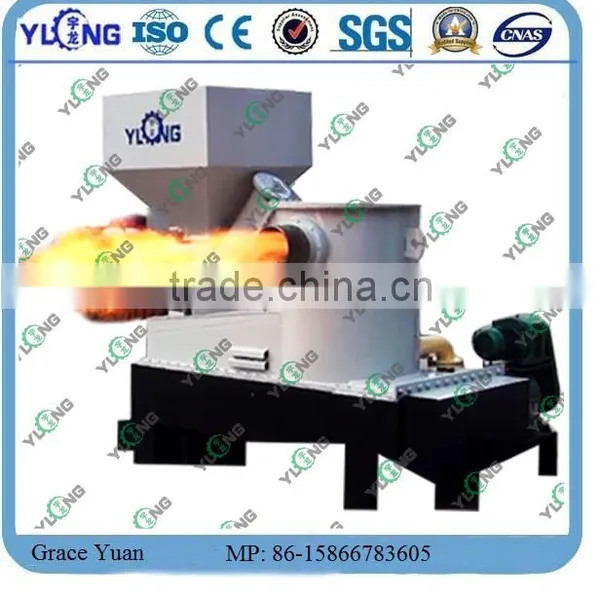

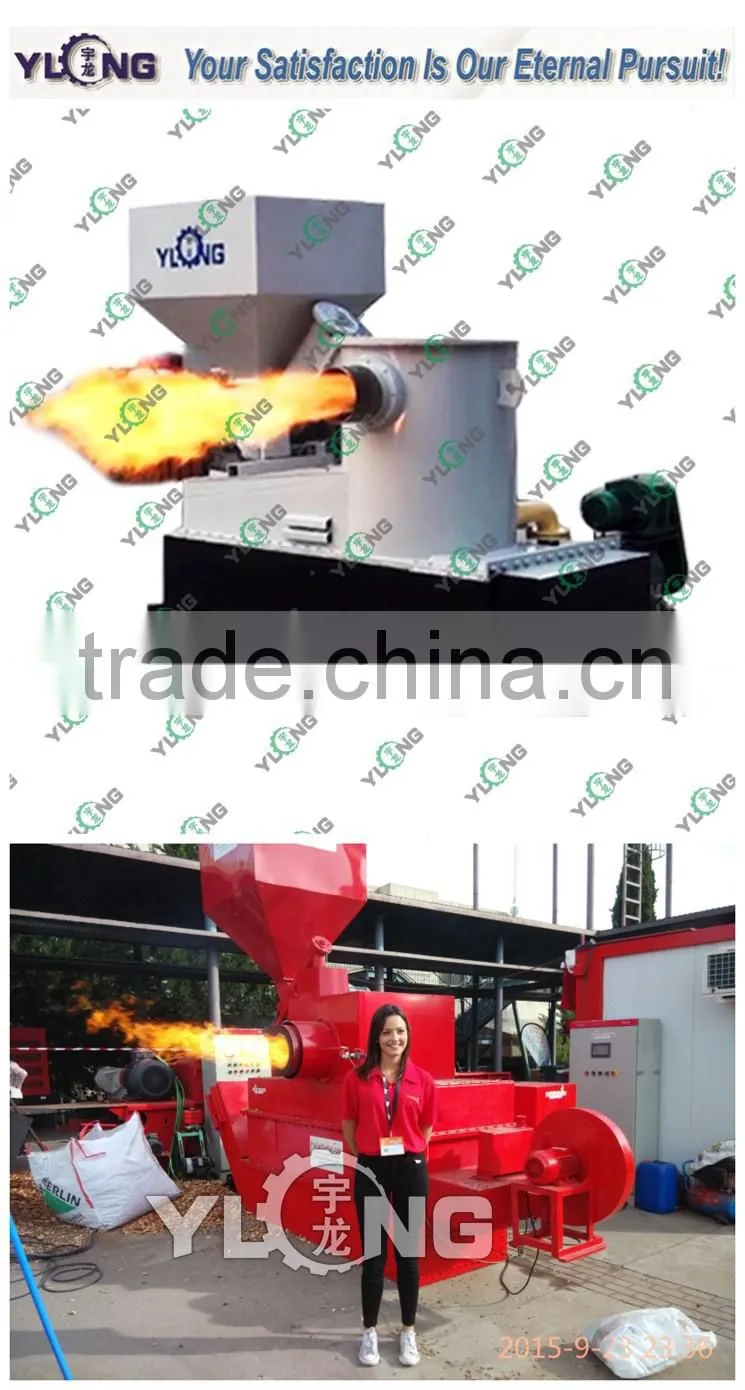

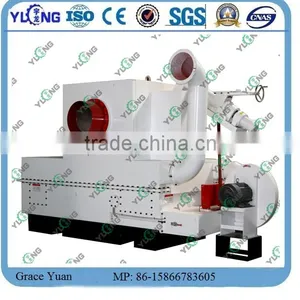

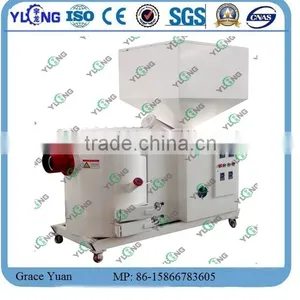

YLR360Q CE Biomass China straw pellets burner

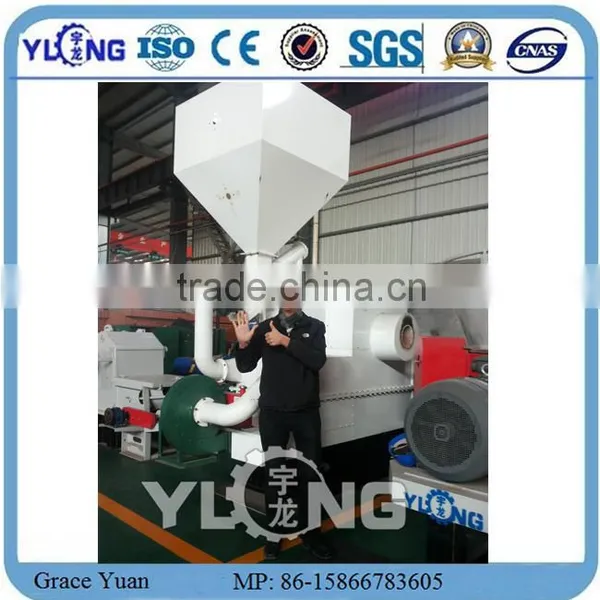

YLR series biomass pellet burner is Yulong company in absorbs the domestic and foreign particles direct combustion technology experience, through technical innovation, developed the latest generation of pellet burner. Now we are loading burning machine for our customer.
Yulong pellet burners Competitive Advantage:
1.High Heating Efficiency , Easy Operating , Convenient maintenance,
2.Save Energy, Save cost,Easy Fire Starting—stable and Reliable,Long Lifetime,
3.Automatic feeding, automatic discharging,automatic igniting, automatic control temperature
4.Automatic 24 working hours without unattended substation
Technical Parameter of china pellets burner
Model |
Calorific value (Kcal/h) |
Match Boiler Capacity |
Power (Mw) |
Fuel consumption (KG/h) |
Fire Port Diameter (mm) |
Dimension (mm) |
Weight (Ton) |
Fan power (kw) |
Ash remove grate |
|
L*W*H | ||||||||||
YLR-30Q |
300,000 |
0.5T |
0.55 |
71.4 |
Φ150 |
2200*1000*1300 |
1.8 |
1.5 |
Fix grate |
—— |
YLR-60Q |
600,000 |
1T |
0.7 |
142.9 |
Φ200 |
3000*1700*1800 |
3.5 |
4 |
Fix grate |
Traveling grate |
YLR-120Q |
1,200,000 |
2T |
1.4 |
285.7 |
Φ300 |
3850*2000*2250 |
4 |
7.5 |
Fix grate |
Traveling grate |
YLR-180Q |
1,800,000 |
3T |
2.1 |
428.6 |
Φ400 |
4700*2250*2480 |
5 |
12 |
—— |
Traveling grate |
YLR-240Q |
2,400,000 |
4T |
2.8 |
571.4 |
Φ500 |
5200*2480*2650 |
6 |
16 |
—— |
Traveling grate |
YLR-360Q |
3,600,000 |
5-6T |
4.2 |
857.1 |
Φ700 |
5800*2900*3100 |
7 |
30 |
—— |
Traveling grate |
YLR-480Q |
4,800,000 |
7-8T |
5.6 |
1142.9 |
Φ900 |
6500*3400*3800 |
9 |
40 |
—— |
Traveling grate |

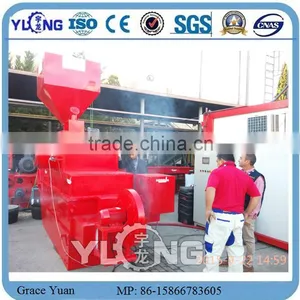

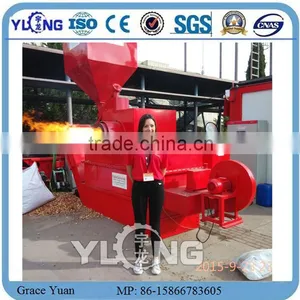

YULONG BIOMASS PELLET BURNING MACHINE HOT SALE IN 2015 SPAIN EXHIBITION.
