Specifications
1.Wide application and good market2 Mixing time's short (40- 60 seconds/group)
3.CE /SGS/ISO
4.Full-length open structure
The brief of feed mixer:
The feed mixer is composed of two rotating in the opposite direction of the rotor, the rotor has welding multiple special Angle of the blade, blade force material on the one hand along the wall counterclockwise revolve; on the other hand, drive material turning around. At the overlapping of the two rotor, formed a floating zone, in the area, regardless of how the material shape, size and density, can make the material to rise, in moments of weightlessness, in order to make the material in the machine groove to form continuous cycle turned in all directions, staggered shear each other, so as to achieve rapid mixing soft effect.
The charactor of feed mixer:
1. The biaxial short feed mixer mixing cycle, high mixing evenness: general materials for 45 to 60 seconds time mixing evenness CV 5% or less, reduce the mixing time, greatly improving the production efficiency;
2. Large loading quantity of variable scope: loading coefficient variable range of 0.1-0.8, and is suitable for many different proportion in the industry for the mixing of materials, size, etc.;
3. The feed mixer does not produce segregation: this machine in 1 minute evenly mixed, and continue mixing materials does not occur of graded phenomenon, and not because the specific gravity, particle size bigger difference of material such as segregation, so as to get high precision mixture;
4. Ejection of compact quickly, small residual: the bottom adopts double door structure, so the fast discharge rate, less residue;
5. The feed mixer add large amount of liquid: add 30% liquid still material mixed uniformly, it can be mixed sticky materials;
6. With three rows of chain sprocket chain structure, composed of cycloidal pin gear speed reducer drive the rotor rotation, violent transmission mechanism is unique, smooth operation, transmission torque, and low abrasion.
The application of feed mixer:
SSHJ series biaxial paddle efficient mixing machine is widely used in feed, grain, food, chemical, pharmaceutical, pesticide and other industries in powder, granule, flake, block, miscellaneous and mixed sticky materials, and can do all kinds of material drying and cooling operations.
The parameter of feed mixer:
Model |
M³/Group |
Power(KW) |
CV<% |
Period(S) |
Weight(t) |
Dimension (mm) |
SSHJ100 |
0.20 |
3 |
|
|
0.62 |
1500*1200*1200 |
SSHJ250 |
0.50 |
5.5 |
1 |
1720*1500*1350 |
||
SSHSJ500 |
1 |
11 |
1.7 |
2360*1900*2050 |
||
SSHJ1000 |
2 |
22 |
2.8 |
2700*2100*2400 |
||
SSHJ2000 |
4 |
30 |
4.6 |
2950*2500*2500 |
||
SSHJ3000 |
6 |
37 |
6.5 |
3500*2800*2600 |
||
SSHJ5000 |
10 |
45 |
9.8 |
4500*3200*2800 |

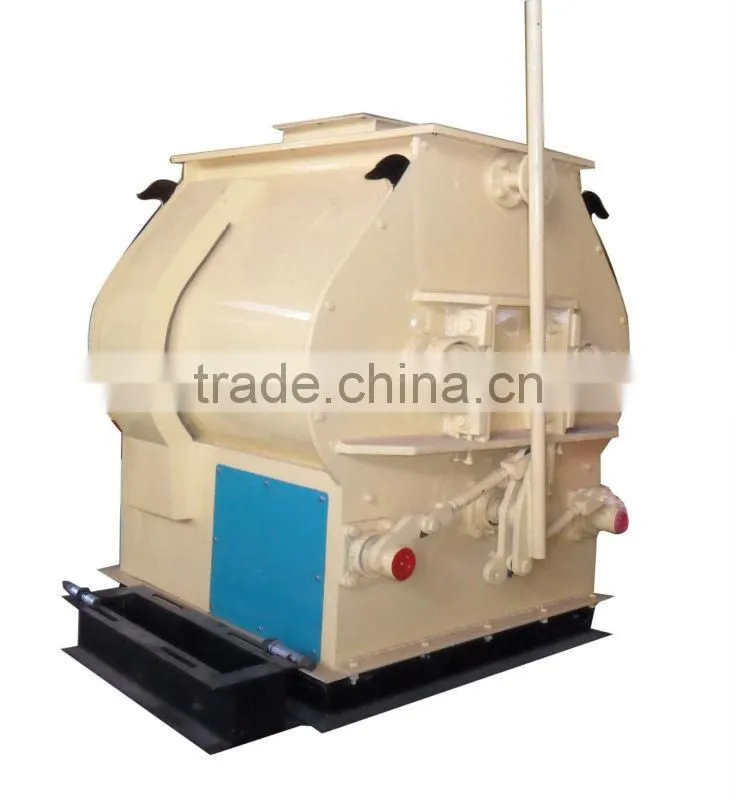

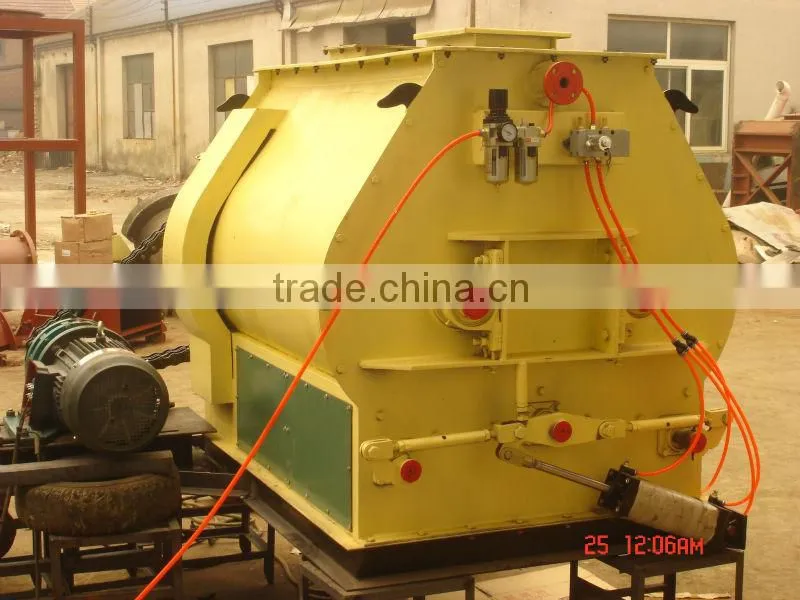

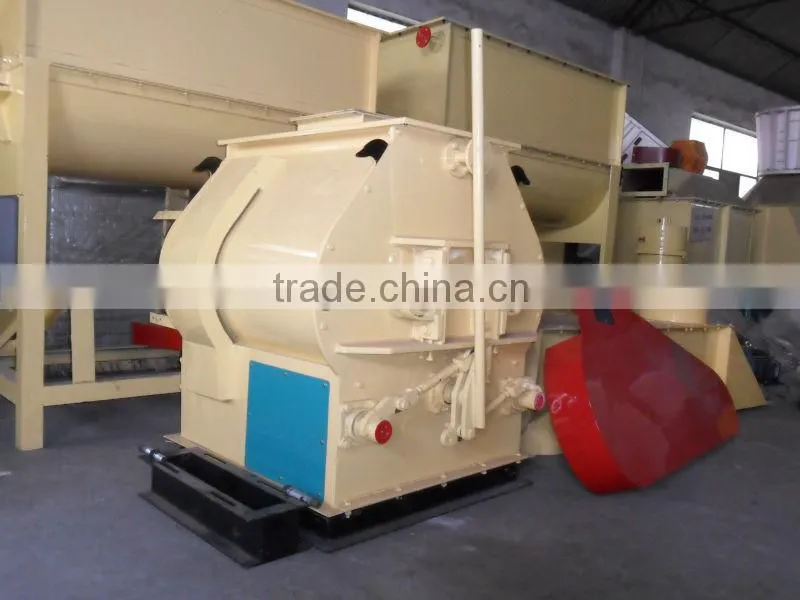

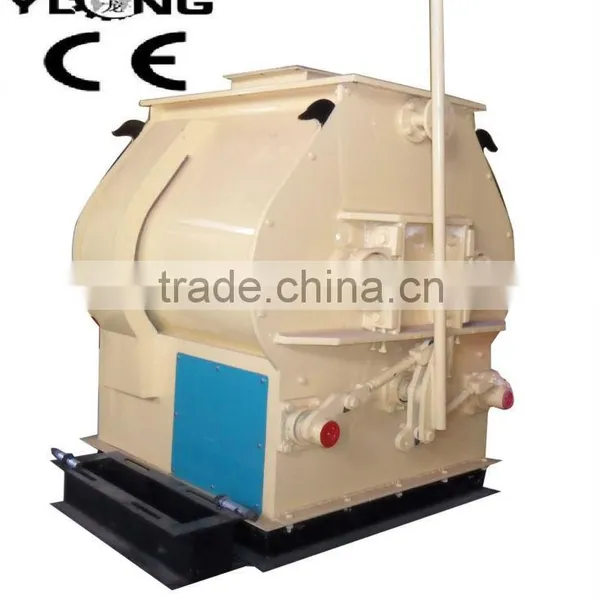

Some photos of feed mixer:
About us
Jinan Xucheng Import & Export Co.,Ltd is a subsdiary of YULONG machine Co.,Ltd. Which is a professional manufacturer and exporter located in Zhangqiu-an ancient city in Shandong province, China.
Our main products series are four parts: Biomass energy machinery, Feedstuff machinery, Organic fertilizer Machinery, Food processing machine.
Our main products in detail: we manufacture and export all kinds type of pellet millflat-die and ring-die, wood pellet mill, hammer mill, mixer, crusher, grass cutter, wood chipper, screener, dryer, cooler, briquette making machine and complete production lines,etc; dough processing machine, vegetable processing machine etc.
As the high quality and good reputation, our goods have successfully been exported Europe, America, Africa, Southeast Asia and so on countries.
