3 Ton Per Hour Ring Die Fodder Feed Pellet Machine With CE ISO and SGS Certificates

3 Ton Per Hour Ring Die Fodder Feed Pellet Machine With CE ISO and SGS Certificates thumbnail-1
3 Ton Per Hour Ring Die Fodder Feed Pellet Machine With CE ISO and SGS Certificates thumbnail-2
3 Ton Per Hour Ring Die Fodder Feed Pellet Machine With CE ISO and SGS Certificates thumbnail-3

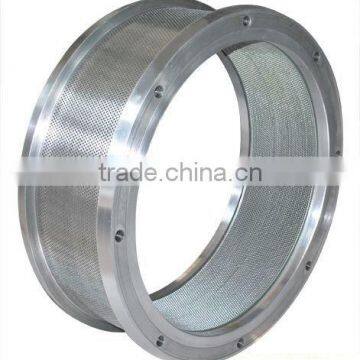

3 Ton Per Hour Ring Die Fodder Feed Pellet Machine With CE ISO and SGS Certificates photo-1
3 Ton Per Hour Ring Die Fodder Feed Pellet Machine With CE ISO and SGS Certificates photo-2
3 Ton Per Hour Ring Die Fodder Feed Pellet Machine With CE ISO and SGS Certificates photo-3
US$ 1,000 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
YULONG
Contact Supplier Request Quote Chat Now
Jinan Xucheng Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name YULONG
Model Number HKJ350
Type Feed Pellet Machine
Voltage 380V
Power(W) 55 kw
Dimension(L*W*H) 2220*1160*1450mm
Weight 2100 kg
Certification ISO CE SGS
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Part 1: Specification of HKJ ring die fodder feed pellet machine

Capacity:  4000-8000 kg per hour;

Power: 55+3.2+1.5kw;

Pellet diameter: 1.5-12mm;

Weight: 2100kg;

Dimension 2220*1160*1450mm : 2220*1160*1450mm ;

With two rollers and one die as a set.



Technical Parameters:

Parameter

HKJ 250

HKJ 300

HKJ 350

HKJ 450-A

HKJ 450-B

 HKJ610

Capacity(t/h)

0.6~1.5

1.5~2.5

2~5

4~8

6~12

   8~15

Power of main motor(kw)

22

45

55

90

  110

   150

Power of feeder(kw)

1.1

1.5

1.5

1.5

    1.5

    2.2

Power of conditioner(kw)

1.5

2.2

2.2

3+3

   3+3

    3+3

Inner dia of die(mm)

Φ250

Φ300

Φ350

Φ450

   Φ450

    Φ610

Quantity of rollers

2

2

2

2

    2

      2

Rotate speed of feeder(r/min)

12~120

Rotate speed of feeder(r/min)

360

Pellet spec(mm)

Φ1.5 ,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ4.5,

                                     Φ5,Φ6,Φ8,Φ10,Φ12

Pressure of steam(mpa)

0.1~0.4

Steam using(t/h)

≥0.3

Temperature of steam(°C)

130~150



Part 2: Brief Introduction to HKJ ring die fodder feed pellet machine



1.Pellet mill of fodder makes 2-8 mm diameter feeds.such as 2-4mm diameter chick feeds and pig feeds.1.5-3mm fish feeds,2-5mm rabbit feeds and so on.

2.The formation rate can reach 98% and the friction can be fallen to the bottom.key parts are made by our CNC system , which is high precision and quality, so we can ensure pressing effiency.

3.Work with feeder and conditioner. The steam will go through conditioner so it is made of stainless steel.

Application Range:  Granulation of materials such as various
feedstuff for livestock, poultry and aquatic
products, grass meal, organic fertilizer, etc.



Part 3 Pictures of HKJ ring die fodder feed pellet machine3 Ton Per Hour Ring Die Fodder Feed Pellet Machine with CE ISO and SGS Certificates

3 Ton Per Hour Ring Die Fodder Feed Pellet Machine with CE ISO and SGS Certificates3 Ton Per Hour Ring Die Fodder Feed Pellet Machine with CE ISO and SGS Certificates





Part 4: Certificates We Have: CE, ISO, SGS, Invention Patent Certificate 3 Ton Per Hour Ring Die Fodder Feed Pellet Machine with CE ISO and SGS Certificates

Part 5: Company Profile



Zhangqiu YULONG Machine Co., Ltd. in China has been manufacturing and providing pellet machines with high quality and  competitive price for more than 16 years, with over  60% of our products exported to more than 40 countries. Products mainly include pellet machine, crusher, hammer mill, cooling and drying devices, mixing machine, packaging machine, etc. widely used in biomass pellet production, animal feed production and organic fertilizer pellet production. All products have CE, ISO and SGS certificates, and have been successfully working in North America, West Europe, Southeast Asia, South America, Southwest Asia, Russia, Africa, etc. We have established branch companies and offices in Russia, Poland, Holand, India, Malaysia, Thailand, Vietnam, Aouth Africa, Argentina, Bulgaria, Lithuania, Egypt, etc. which makes our serice much faster, better and more efficient.

Part 6: Pictures of Our Company

3 Ton Per Hour Ring Die Fodder Feed Pellet Machine with CE ISO and SGS Certificates

3 Ton Per Hour Ring Die Fodder Feed Pellet Machine with CE ISO and SGS Certificates

3 Ton Per Hour Ring Die Fodder Feed Pellet Machine with CE ISO and SGS Certificates





Part 7: Customer Visits From All Around the World

3 Ton Per Hour Ring Die Fodder Feed Pellet Machine with CE ISO and SGS Certificates







Part 8: Branch Officies All Around the World



3 Ton Per Hour Ring Die Fodder Feed Pellet Machine with CE ISO and SGS Certificates
