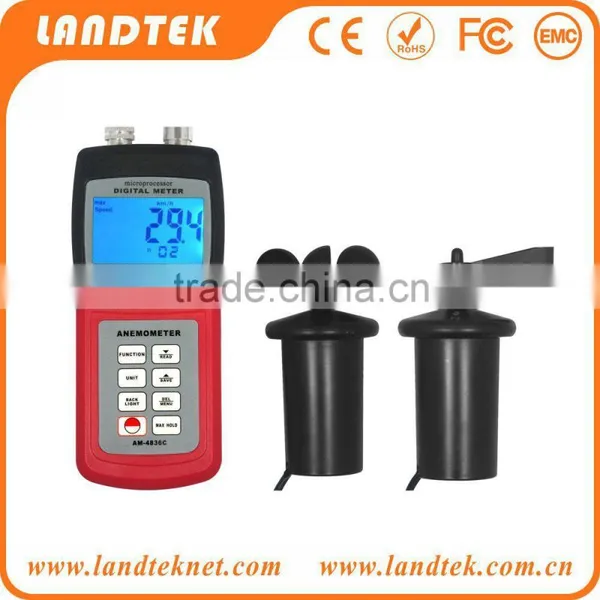

Multifunction Anemometer AM-4836C

Multifunction Anemometer AM-4836C thumbnail-1
Multifunction Anemometer AM-4836C thumbnail-2
Multifunction Anemometer AM-4836C photo-1
Multifunction Anemometer AM-4836C photo-2
US$ 90 - 130 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Landtek
Model Number:
AM-4836C
Contact Supplier Request Quote Chat Now
Guangzhou Landtek Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Landtek
Model Number AM-4836C
Power Electronic
Usage Other, anemometer

Applications:

Widely used in data collection for boiler, refrigeration industry, ventilation duct, environment monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department.

* Wide applications: use to check air conditioning & heating systems , measure air velocity, wind speed, direction, temperature, etc.

* Multifunctional. the measurement unit can be selected according to different requirements.

* Maximum value data hold function.

* DATA HOLD function for storing 24 groups of datas.

* Low-friction ball-bearing design allows free vane movement.

* Separate type design, convenient to measure.

* Automatic Power off, 0-9 minutes set by users.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output” choice



General Specifications:

  Display   0.5" (13 mm) 4-digit LCD
  Measurement Units   Air Velocity: m / s, km / h, ft / min, knots
  Air Flow: CMM ( m³ / min ), CFM ( ft³ / min )
  Beaufort Scale: Force
  Wave Height: m
  Direction: ° from The North Direction
  Temperature: °C , °F
  Data Hold   Maximum Value
  Data Memorized   24 Groups
  Sampling Rate   Reading Per Second Approx
  Sensors   Air Velocity / Flow Sensor: 3-cup Probe
  Direction Probe: Low Friction Probe
  Temperature Sensor: Precision Thermistor
  Automatic Power Off   0 ~ 9 Minutes Set by Users
  Operating Conditions   Temperature: -10 ~ 60 °C (14 ~ 140 °F )      Humidity: < 80 %RH
  Power Supply   4 x 1.5v AAA size ( UM-4 ) battery
  Dimensions   Main Unit: 156 x 67 x 28 mm ( 6.1 x 2.6 x 1.1 inch )
  Velocity Sensor: 65 x 65 x 115 mm
  Direction Sensor: 86 x 69 x 115 mm
  Weight   375 g / 0.83 lb(Including Batteries)



Test Range Specifications:

    Range   Resolution   Accuracy
  Air Velocity   m / s ( meters / sec )   0.4 ~ 45.0   0.1 m / s   ± ( 2% n + 0.1 m / s )
  km / h ( kilo-meters / hour )   1.4 ~ 162.0   0.1 km / h   ± ( 2% n + 0.1 km / h )
  ft / min ( feet / minute )   80 ~ 8860   0.1 ft / min   ± ( 2% n + 1 ft / min )
  knots ( nautical MPH )   0.8 ~ 88.0   0.1 knots   ± ( 2% n + 0.1 nots )
  Air Flow   CMM ( cubic meters / min )   0 ~ 9999   0.001 ~ 1   ± ( 2% n + 0.1 m³ / min )
  CFM ( cubic ft / min )   0 ~ 9999   0.001 ~ 1   ± ( 2% n + 0.1 ft³ / min )
  Beaufort Scale   0 ~ 12   0.1   ± 0.5
  Direction   0 ~ 360 °   22.5 °   ± 22.5 °
  Wave Height ( Meter )   0 ~ 14   0.1   ± 0.1
  Air Temperature   14 ~ 140 °F   0.1 °F   0.9 °F
  -10 ~ 60 °C   0.1 °C   0.5 °C





Standard Accessories:

1. Main Unit

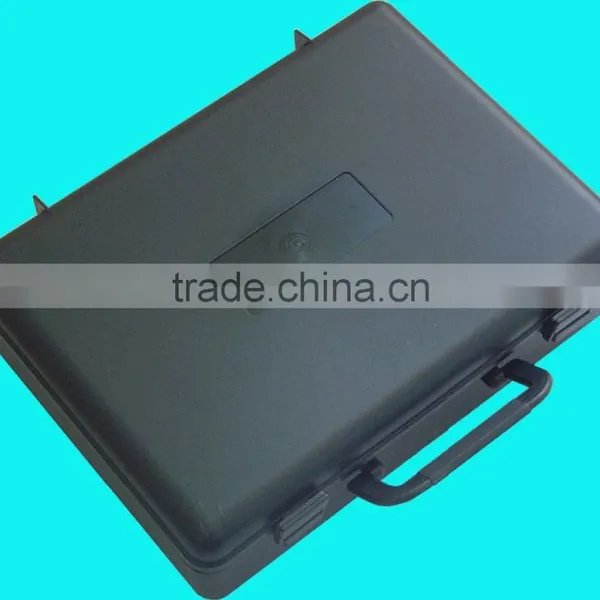

2. Carrying Case (B02)

3. Operation Manual

4. Velocity Sensor

5. Direction sensor



Optional Accessories:

1. USB, RS-232 Data Cable With Software

2. Bluetooth Data Out put With Software
