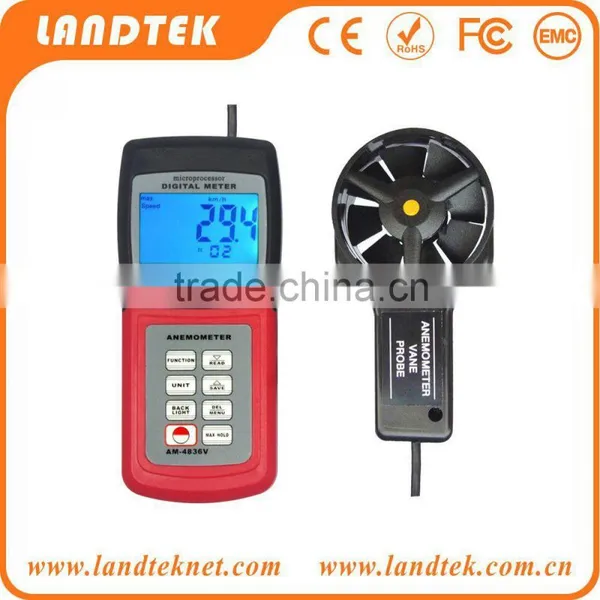

Help CenterDigital Industrial Anemometer AM-4836V(air Flow Meter,air Velocity,wind Speed,temperature)
Related Products
Applications:
Widely used in data collection for boiler, refrigeration industry, ventilation duct, environment monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department.
Features:
*Wide applications: use to check air conditioning & heating systems , measure air velocity, wind speed, direction, temperature, etc.
* Multifunctional. the measurement unit can be selected according to different requirements.
* Maximum value data hold function.
* DATA HOLD function for storing 24 groups of datas.
* Low-friction ball-bearing design allows free vane movement.
* Separate type design, convenient to measure.
* Automatic Power off, 0-9 minutes set by users.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
Details:
General Specifications:
| Display | 0.5" (13 mm) 4-digit LCD | |
| Measurement Units | Air Velocity: m / s, km / h, ft / min, knots | |
| Air Flow: CMM ( m³ / min ), CFM ( ft³ / min ) | ||
| Beaufort Scale: Force | ||
| Wave Height: m | ||
| Temperature: °C , °F | ||
| Data Hold | Maximum Value | |
| Data Memorized | 24 Groups | |
| Sampling Rate | Reading Per Second Approx | |
| Sensors | Air Velocity / Flow Sensor: Conventional Angled Vane Arms with Low-friction Ball Bearing | |
| Temperature Sensor: Precision Thermistor | ||
| Automatic Power Off | 0 ~ 9 Minutes Set by Users | |
| Operating Conditions | Temperature: 0 ~ 50 °C (32 ~ 122 °F ) Humidity: < 80 %RH | |
| Power Supply | 4 x 1.5v AAA size ( UM-4 ) battery | |
| Dimensions | Main Unit: 156 x 67 x 28 mm ( 6.1 x 2.6 x 1.1 inch ) | |
| Sensor Head: 72 mm Diameter | ||
| Weight | 260 g / 0.57 lb(Including Batteries) | |
Test Range Specifications:
| Range | Resolution | Accuracy | ||
| Air Velocity | m / s ( meters / sec ) | 0.4 ~ 45.0 | 0.1 m / s | ± ( 2% n + 0.1 m / s ) |
| km / h ( kilo-meters / hour ) | 1.4 ~ 162.0 | 0.1 km / h | ± ( 2% n + 0.1 km / h ) | |
| ft / min ( feet / minute ) | 80 ~ 8860 | 0.1 ft / min | ± ( 2% n + 1 ft / min ) | |
| knots ( nautical MPH ) | 0.8 ~ 88.0 | 0.1 knots | ± ( 2% n + 0.1 nots ) | |
| Air Flow | CMM ( cubic meters / min ) | 0 ~ 9999 | 0.001 ~ 1 | ± ( 2% n + 1 m³ / min ) |
| CFM ( cubic ft / min ) | 0 ~ 9999 | 0.001 ~ 1 | ± ( 2% n + 1 ft³ / min ) | |
| Beaufort Scale | 0 ~ 12 | 0.1 | ± 0.5 | |
| Wave Height ( Meter ) | 0 ~ 14 | 0.1 | ± 0.1 | |
| Air Temperature | 32 ~ 140 °F | 0.1 °F | 0.9 °F | |
| 0 ~ 60 °C | 0.1 °C | 0.5 °C | ||
In carton, via ocean/land/air
Quality assurance for one year,and forever maintainence.
