Iron Ore Detector Underground Iron Ore Detector

Name: Iron Ore Detector Underground Iron Ore Detector
Brand: Gold
SKU: 128897889

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Chongqing, China

Brand Name:

Gold

Model Number:

High Precision Proton Magnetometer Magnetic Ore Prospector

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Chongqing, China

Brand Name Gold

Model Number High Precision Proton Magnetometer Magnetic Ore Prospector

Power Electronic

Usage Other, Iron Ore Detector

Iron Ore Detector

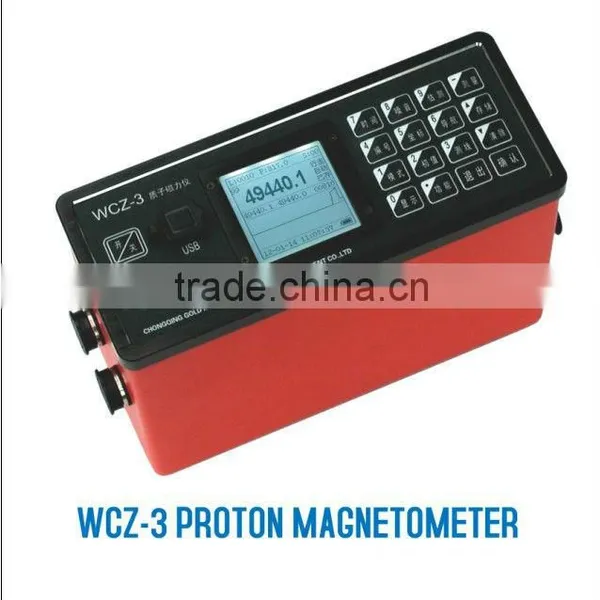

High Precision Proton Magnetometer Magnetic Ore Prospector

Application:

1.Mineral survey, such as iron ore, lead-zinc ore, copper ore

2.Mineral prospecting as mineral ore depth, orientation, continuity and ore shape, size and scale

3.Oil, natural gas survey, related geological structure

4.General survey, local survey and geological mapping

5.Base station for aerial or marine magnetic survey

6.Fault detection

7. Archaeology

8. Hydrogeology

9. Engineering survey, such as pipe prospecting

10. Monitoring earthquake auspice, volcano and other environmental disasters.

11.Small ferromagnetic material prospecting

Technical specifications:

Channels	1. channel(standard configuration, for separate gradient measurement) 2. channels(optional, for simultaneous gradient measurement)
Measuring range	20,000 nT ~ 100,000nT
Accuracy	±1nT
Resolution	0.1nT
Gradient permitted	≤8,000nT/m
Measuring speed	larger than 2s/reading
Station measuring interval	2~60s, optional
Data stored	large than 2 billion points readings, with power-off protection
GPS Positioning accuracy	higher than 2.5m CEP
LCD display	160×160, with backlight
Keyboard input	16 keys
Port	USB standard serial port
Power source	Rechargeable lithium battery (for 4000 times reading), external power supply optional (12V)
Console dimension	206mm × 85mm ×155mm
Weight	1.5Kg (including battery)
Sensor size	φ75mm×155mm
Sensor weight	0.8 Kg
Working temperature	-10 °C~+50 °C
