Multi-function Resistivity Meter for Wenner and Dipole-dipole Profile

Multi-function Resistivity Meter for Wenner and Dipole-dipole Profile photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GOLD
Model Number:
DD-1
Display Type:
Analogue and Digital
Payment & Shipping
Payment Methods:
Port of Shipment:
CHONGQING
Delivery Detail:
Delivery time depends on order quantity.
Brand Name GOLD
Model Number DD-1
Display Type Analogue and Digital
Measuring Range 20-500m
Testing Voltage 10v
Operating Temperature -20℃~60℃
Dimensions 33*23*16cm

                           Multi-function Resistivity Meter for Wenner and Dipole-dipole profile



APPLICATION

Environmental monitor

Groundwater detection

Underground cavity detection

Geological structure detection

Archaeology



ARRAY TYPE

² Wenner

² Pole-dipole

² Dipole-dipole profile

² Central gradient resistivity profile

² Resistivity combined profile

Wenner profile





CHARACTERISTIC



Automatic measurement with six common array and profile.



8.4" TFT LCD display real time curve.



Preset parameters,All-in-one button, Easy-to-use.



Hand free data acquisition, calculation, data transfer, data saving and data display.



Unique verification function to calculate relative error between two measurements.



Upgrade firmware by RS232 port.





SPECIFICATION



Input impedance

>10MΩ

Input voltage range

±10V

Insulation between AB,MN and shell

>100 MΩ

Potential accuracy

<|1%|±1 LSB

Potential resolution

0.01mV

Current accuracy

<|2%|±1 LSB

Current resolution

0.01mA

Compensation range

Automatic

±2047mv

Zero-Drift compensation

Automatic

Temperature range

-20℃~60℃

Humidity

<85%

50Hz and 60 Hz Power rejection

>80db

LCD

8.4" TFT

High voltage input range

50V~1000V

Supply current

3A

Weight

<4Kg

Dimension

33*23*16cm





DATA ACQUISITION INTERFACE

Multi-function Resistivity Meter for Wenner and Dipole-dipole profile







FIELD EXAMPLE

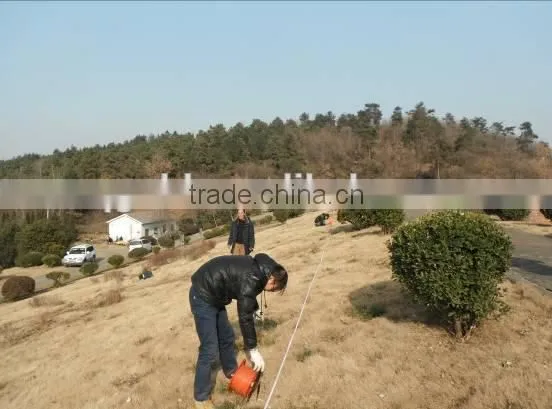

Figure 1 Dam survey in Wuhan, China

Multi-function Resistivity Meter for Wenner and Dipole-dipole profile

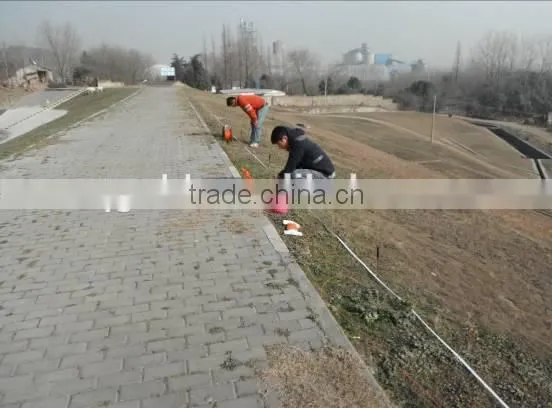

Figure 2 Dam survey in Nanjing, China



 Multi-function Resistivity Meter for Wenner and Dipole-dipole profile
