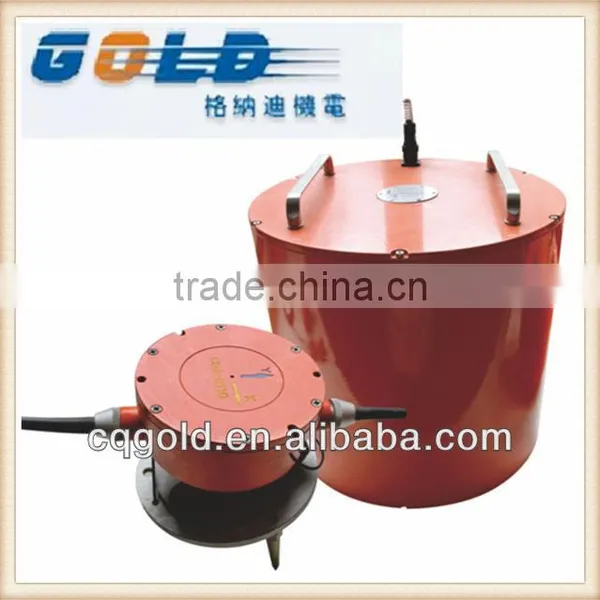

CDJ-S2/Z2/P2 2HZ Seismic Geophone

CDJ-S2/Z2/P2 2HZ Seismic Geophone thumbnail-1
CDJ-S2/Z2/P2 2HZ Seismic Geophone photo-1
US$ 1 - 6,000 MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
GOLD
Model Number:
CDJ-ZPS
Contact Supplier Request Quote Chat Now
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai /chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name GOLD
Model Number CDJ-ZPS

  CDJ-S2/Z2/P2 2HZ seismic geophone CDJ-S2/Z2/P2 2HZ seismic geophone



Application :

it is used for deep seismic survey and advanced prediction ,natural earthquake prediction monitoring and pulsant microseism measurement of bridge ,dam ,road and others as well as safety monitoring .

Characteristic :





1. 1~3Hz geophones applied for deep seismic prospecting, natural earthquake surveillance and prediction, pulse and microseismic measurement for bridge and highways, etc.







2. 4~100 Hz widely used to seismic prospecting of petroleum, coal, metallurgy, defense engineering and etc.



3. High sensitivity, low-distortion, reasonable damping coefficient, good linear response, good parameter conformity, higher resolution and excellent waterproof property.







4. Small-sized, easy to install, easy to operate, large ambient temperature range, can meet the demand of multi-wave component seismic data acquisition technology



optional frequency :1HZ-4.5HZ





Medium–High Frequency (vertical and horizontal) Geophones

Parametertype name
CDJ-Z/P4
CDJZ/P4.5
CDJ-Z/P10
CDJ-Z/P15
CDJ—Z/P28

CDJ-Z/P30

 CDJ—Z/P38
Natural Frequency (Hz)

4±10%
4.5±10%

10±5%

15±5%

28±5%

30±5%

38±5%
Sensitivity G
(v/cm.s-1)
0.28±5%




0.26±5%
Coil Resistance Rc(Ω)
365±5%
365±5%
365±5%
500±5%
500±5%
650±5%
Internal Resistance
(Ω)
345±5%
335±5%
310±5%
415±5%
415±5%
560±5%
Damping Coefficient Bt
0.7±10%
0.58±10%
0.58±10%
0.62±10%
0.6±10%
0.6±10%
Harmonic Distortion D
≤ 0.2
Insulating Resistance
Ri (MΩ)
≥ 20
Coil’S Maximum Displacement P-P(mm)
2
Suspension Mass( g )
13.2

12.8

8.6
7.9
Working Temperature
(°C)
— 40 ~ + 70
Weight ( g )
255



Low-Frequency (vertical, horizontal and three-component ) Geophones

Parametertype name

CDJ-Z1/P1/S1
CDJ-Z1A/P1A/S1A

Natural Frequency (Hz)
1±10%
Coil Resistance Rc(Ω)
3400±10%
3500±10%
Open Circuit Sensitivity
G (v/cm/s)
2±10%
6.7±10%
Closed Circuit Sensitivity
(v/cm/s)

1.83±10%

6.4±10%

Internal Resistance R(Ω)
3100±10%
3300±10%

Open Circuit Damping Coefficient Bt
0.32±10%


Closed Circuit amping Coefficient

0.43±10%

Insulating Resistance
Ri (MΩ)

≥ 10
Coil’S Maximum Displacement P-P (mm)

6
Suspension Mass ( g )
770

Working Temperature (°C)
—25 ~ +55
Weight (K g )
8.15
3.4
10
8.15
3.4
10





if you want to know the most economical price please don't feel hesitate to contact us
