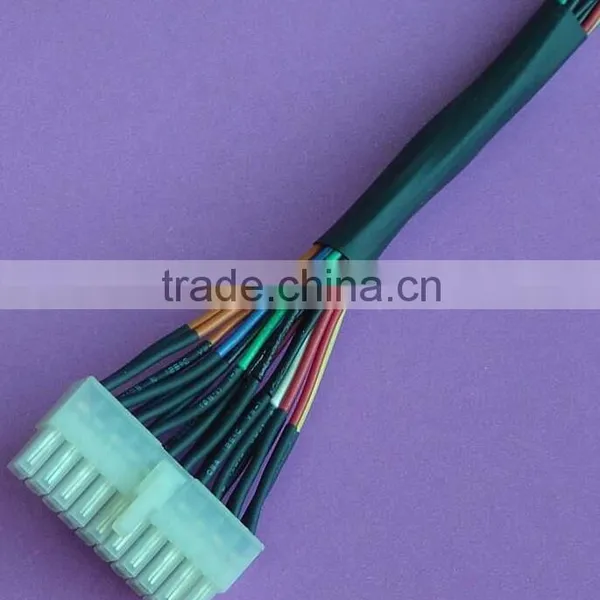

Help CenterThin Wall Cold Temperature Flame Resistant Type Heat Shrink Pipe
Related Products
-
Cold Shrink Halogen Free Fire Resistanr Heat Shrink Tube LRS-1US$ 0.01 - 0.08MOQ: 500 Meters -
Halogen Free Fire Resistanr Heat Shrink Tube Without Adhesive LRS-1US$ 0.01 - 0.08MOQ: 500 Meters
-
Heat Shrink Tube Busbar Colored Pipe InsulationUS$ 0.01 - 7MOQ: 500 Meters
-
10kv /35kv Busbar Protective Heat Shrink Tube/Tubes/tubingUS$ 0.01 - 7MOQ: 500 Meters
-
10kv High Voltage Heat Shrink Tubing PolyolefinUS$ 0.01 - 7MOQ: 500 Meters
| Specifications | before shrinkage(mm) inner diameter D | after shrinkage(mm) | package meter/roll | |
| inner diameter d | wall thickness t | |||
| 1.0/0.5 | 1.4±0.3 | 0.5±0.1 | 0.25±0.05 | 200 |
| 1.5/0.75 | 1.9±0.3 | 0.7±0.1 | 0.25±0.05 | 200 |
| 2.0/1.0 | 2.4±0.3 | 0.9±0.1 | 0.25±0.05 | 200 |
| 2.5/1.25 | 2.8±0.3 | 1.15±0.1 | 0.25±0.05 | 200 |
| 3.0/1.5 | 3.4±0.3 | 1.4±0.1 | 0.25±0.05 | 200 |
| 3.5/1.75 | 3.9±0.3 | 1.65±0.1 | 0.25±0.05 | 200 |
| 4.0/2.0 | 4.4±0.3 | 1.9±0.1 | 0.25±0.05 | 200 |
| 4.5/2.0 | 4.9±0.3 | 1.9±0.1 | 0.25±0.05 | 100 |
| 5.0/2.5 | 5.5±0.3 | 2.3±0.2 | 0.25±0.05 | 100 |
| 6.0/3.0 | 6.5±0.3 | 2.8±0.2 | 0.25±0.05 | 100 |
| 7.0/3.5 | 7.5±0.3 | 3.3±0.2 | 0.25±0.05 | 100 |
| 8.0/4.0 | 8.5±0.3 | 3.8±0.2 | 0.25±0.05 | 100 |
| 9.0/4.5 | 9.5±0.3 | 4.3±0.2 | 0.25±0.05 | 100 |
| 10/5.0 | 10.5±0.3 | 4.8±0.2 | 0.25±0.05 | 100 |
| 11/5.5 | 11.5±0.3 | 5.3±0.2 | 0.25±0.05 | 100 |
| 12/6.0 | 12.5±0.3 | 5.7±0.3 | 0.25±0.05 | 100 |
| 13/6.5 | 13.5±0.3 | 6.2±0.3 | 0.25±0.05 | 100 |
| 14/7.0 | 14.5±0.3 | 6.7±0.3 | 0.25±0.05 | 100 |
| 15/7.5 | 15.5±0.3 | 7.2±0.3 | 0.25±0.05 | 100 |
| Standard color: BLACK | ||||
Packaging and shipping:
Packaging: 200m/roll, 100m/roll, 50m/roll, 1.22m/roll etc. (Can be packed or cutted as request)
Shipping:By express(Samples), by air, by sea(Large volume)
Our Services:
1.Payment Terms:T/T transfer, Paypal, Western Union.
2.Delivery time: 10-15 days upon quantity.
3. Samples could be offered free withn 1-5 meters, but the express charge is on the customer’s side.
Company Information:
We are manufactuer of heat shrink tubes for more than 15 years. Our products are widely exported to Asia, North America and Europe etc. We promise to supply you our products in great quality and competitive price.
FAQS:
Things needs to be confirmed before quotation:
1. What type of the heat shrink tube do you need?
1.) Single wall flame retardant heat shrink tube 2.)Adhesive lined double wall heat shrink tube 3.)1KV/11KV/36KV Busbar protection heat shrink tube 4.) Medium wall heat shrink tubes (You can visit our product categories in our website on alibaba.)
2. What size (inner diameter of the tube)?
Look at the Specification chart.
3. What Color?
Color available: black,white,red,yellow,green,blue, more colors available upon request
4.Shrink ratio?
2:1, 3:1, 4:1
