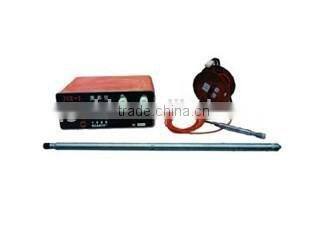

JQX-2 Geological Portable Digital Inclinometer, Borehole Inclinometer and Inclinometer Tilt Sensor for Borehole Inspection

JQX-2 Portable Digital Inclinometer

Main Applications and Features:

Digital inclinometer is a new high-precision inclinometer system which consists of ground instrument, probe, cable and other components. It is widely used in measurement of vertex and azimuth for various types of geological drilling.

Widely used in measurement of vertex and azimuth for various types of geological drilling.

Direct-reading of vertex and azimuth

Digital display, point measurement or continuous measurement

Simple, reliable operation,

 Main Technical Specifications:

Vertex Coverage: 0~60°

Vertex Accuracy: ≤ 0.1°

Azimuth Coverage: 0~360°

Azimuth Accuracy: ±4° (Vertex ≥ 3°), ±6° (2° ≤ Vertex ≤ 3°)

Working Temperature: 0~85 ℃

Probe Outline Dimension: φ42×1000 mm

Ground Instrument Dimension: 240×95×140mm

Probe Weight: 2 Kg (weighing bar 5 Kg)

Probe Downhole Length: ≤1000
