Insulation Fiber Optic Heat Shrink Tube

Specifications

insulation fiber optic heat shrink tube
Rohs certificated
flame retardant pass VW-1
Flexible,non-halogen
shrink ratio:2:1

insulation fiber optic heat shrink tube

Features:

1 Operating Temperature:-55~ 125 centi degree;
2.low shrinking Temperature:Start at 70 centi degree

3.flexible,flame retardant;
4.standard color:black,white,red,yellow,green,blue, more colors available upon request

Applications:

·  Wire splices and terminations

·  Wire harnesses

·  Mechanical protection and fire-resistant covering

·  Insulation and strain relief of terminals and connections

Properties:

Heat Shrink Tubing(DZRS ID1-180mm)(Shrink ratio:2:1)
Description			Test Methods	Values
Physical	Tensile strength(Mpa)		GB/T1040	≥12
	Breakage elongation rate(%)			≥200
	Tensile strength(Mpa)		UL224  158°C*168hr	≥10
	Breakage elongation rate(%)			≥200
	Low temperature flexibility		(-40°C x 4h)	No cracking
Electrical	dielectric strength(KV/mm)		GB/T1408	≥15
	Voltage resistant		UL224	2.5KV No breakdown
	volume resistivity(ohm.cm)		GB/T1410	≥1*1014
Chemical	Anti-corrosive performance		UL224   158°C*168hr	Pass
	Copper stability			Pass
	Fire resistant		UL224	VW-1

Specifications:

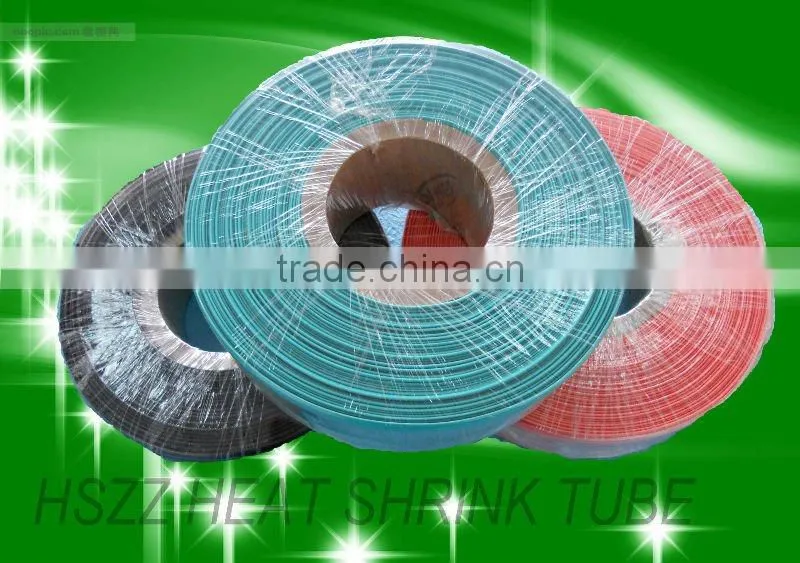

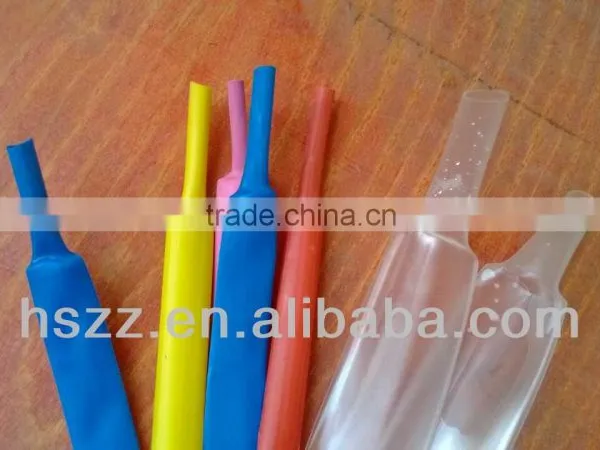

 Pictures:



Packaging and shipping:

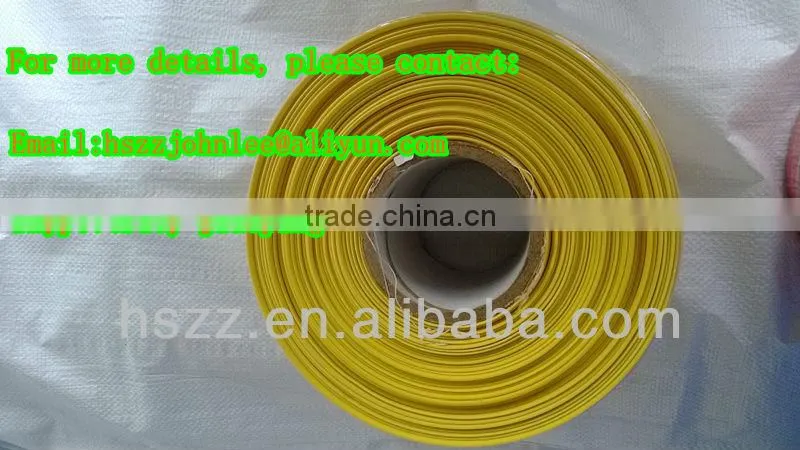

Packaging: 200m/roll, 100m/roll, 50m/roll, 1.22m/roll etc. (Can be packed or cutted as request)

Shipping:By express(Samples), by air, by sea(Large volume)



Our Services:

1.Payment Terms:T/T transfer, Paypal, Western Union.

2.Delivery time: 10-15 days upon quantity.

3. Samples could be offered free withn 1-5 meters, but the express charge is on the customer’s side.



Company Information:

We are manufactuer of heat shrink tubes for more than 15 years. Our products are widely exported to Asia, North America and Europe etc. We promise to supply you our products in great quality and competitive price.



FAQS:

Things needs to be confirmed before quotation:

1. What type of the heat shrink tube do you need?

1.) Single wall flame retardant heat shrink tube  2.)Adhesive lined double wall heat shrink tube 3.)1KV/11KV/36KV Busbar protection heat shrink tube 4.) Medium wall heat shrink tubes (You can visit our product catergories in our website on alibaba.)

2. What size (inner diameter of the tube)?

Look at the Specification chart.

3. What Color?

Color available: black,white,red,yellow,green,blue, more colors available upon request

4.Shrink ratio?

2:1, 3:1, 4:1
