Carton Wrapping Machine Pallet Machinery,pallet Wrapping Machine
- Qingdao or Shanghai
- T/T Credit Card
You May Like
-
Workshop Use Goods Wrapping Machine Wrapping Stretch Film for Packaging
-
Fully Auto Factory Price 250% Pre-stretch Wrapper
-
Pallet Shrink Wrapping Machine for Carton Box
-
Full Automatic T1650FZ Pallet Stretch Wrap Machine
-
Heavy Goods Wrapping Machine Looking for Distributor
-
Factory Design Plastic Film Wrapping Machine With Sensor
Product Details
| Condition | New | Application | Apparel, Beverage, Chemical, Commodity, Medical, Textiles | |
| Packaging Type | Case | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V,50HZ,1phase | Power | 1.5KW | |
| Place of Origin | Shandong, China | Brand Name | Shunyi | |
| Model Number | T1650F | Dimension(L*W*H) | 2745*1650*2863mm | |
| Weight | 600kgs | Certification | ISO9001,SGS,CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

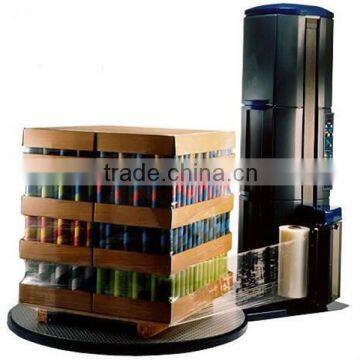

Pallet wrapping machine
Carton wrapping machine pallet machinery,pallet wrapping machine
Model | T1650F Automatic pre-stretch film wrapping machine |
Wrapping product size | L(500-1200) mm × W(500-1200)mm |
Wrapping height | L type:1800mm H type:2400mm Y type:2800mm |
Packing efficiency | 20-40 pallet/h |
Rotary speed | 0~15rpm rotary speed, adjustable, steady start and stop |
Turntable diameter | 1650mm |
Turntable height | 78mm |
Turntable weight capacity | 2000kgs |

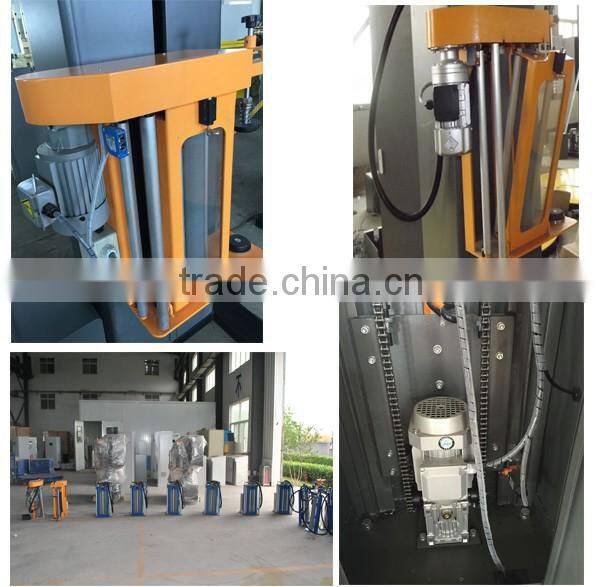

Film carriage system | Pre-stretch film carriage, pre-stretch up to 250%, automatic transport film |
Up and down upright | Double chain structure, adjustable up and down speed by transducer |

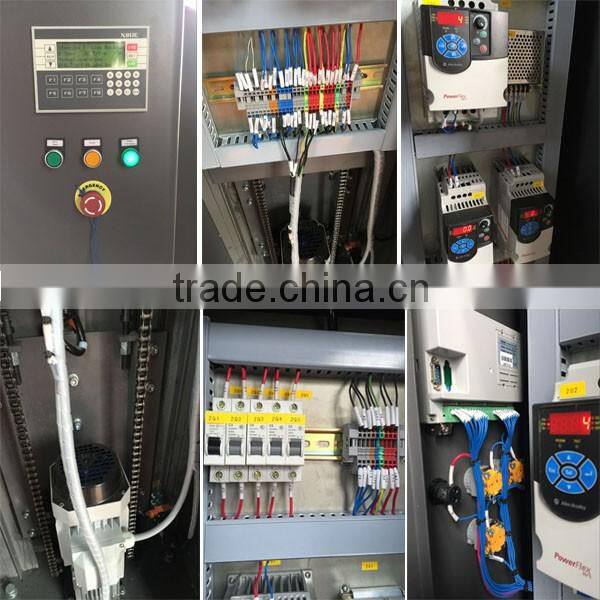

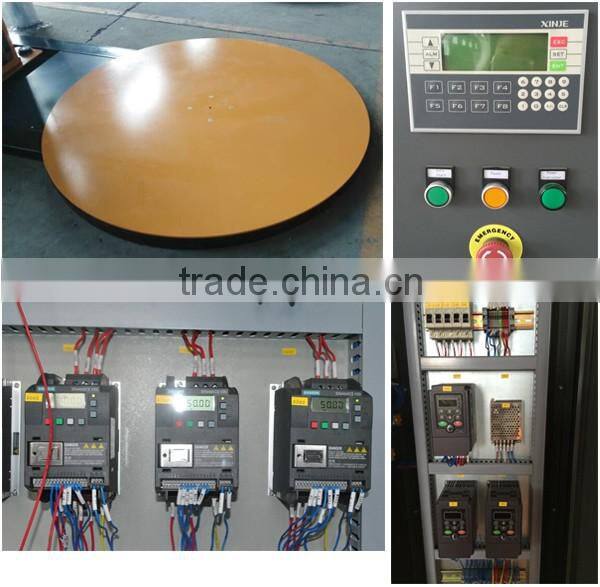

Control system | PLC programmable |
Machine weight | 700kg |
Machine size | 2745mm×1650mm × (2260-3260) mm |
Power | Turntable 0.75kw, film carriage 0.4kw, upright 0.37kw |

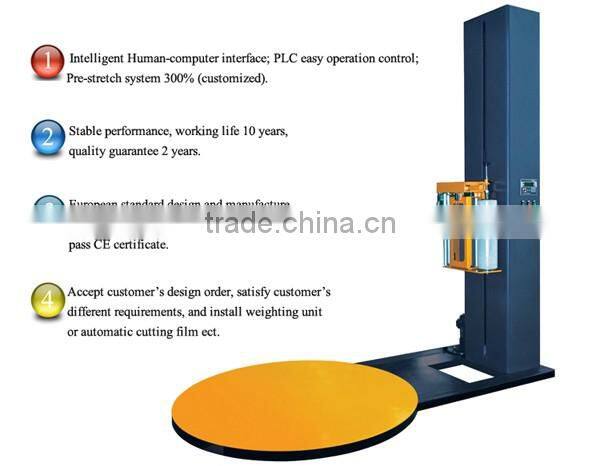

1. Intelligent Human-computer interface; PLC easy operation control;
Pre-stretch system 300% (customized).
2. Stable performance, working life 10 years, quality guarantee 2 years.
3. European standard design and manufacture, same quality, but Chinese market price; Pass
CE certificate.
4. Accept customer’s design order, satisfy customer’s different requirements, and install weighting
unit or automatic cutting film ect.
5. Widely used in glass products, hardware tool, electric product, paper, ceramic, chemical, food,
beverage, building material and so on.
6. Improve logistic efficiency, reduce goods loss during transporting, has waterproof, dustproof,
reduce product cost, improve packaging grade.
We already have 16 years manufacturing experience, and will supply
best service to each customer,trust you,we will be your best choice.
You will care the following FAQ:
1. What about your stretch wrapping machine quality?
Our factory has 16 years experience in wrapping machine; already get ISO9001, SGS
certificate, CE certificate; already exported into many countries and areas; already got
customer’s good reputation.
2. What about your stretch wrapping machine price?
Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. What about your company service for stretch wrapping machine?
Guarantee is one year, we will supply spare parts or send engineers to your side free,
we will give you service anytime, 24 hours, 7days.
