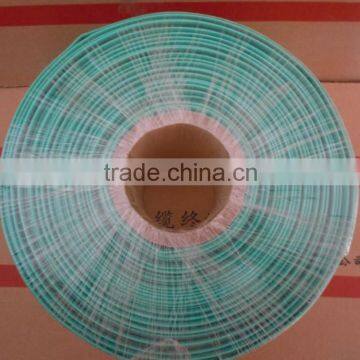

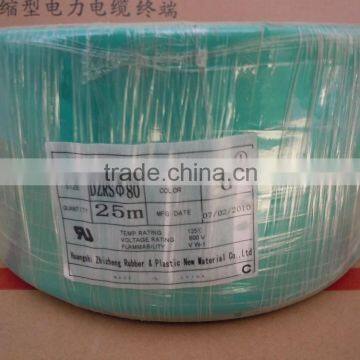

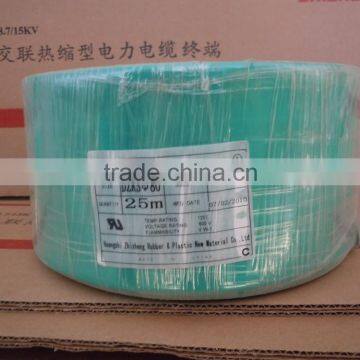

Supply no Halogen and Flame Retardant Heat Shrink Sleeve
US$ 0.01 - 0.08
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
zhizheng
Model Number:
LRS-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wholesale Heat Shrink Tube With Competitive Price and Excellent QualityUS$ 0.01 - 0.08MOQ: 1000 Meters -
2:1 Irradiated Polyolefin Heat Shrink SleeveUS$ 0.01 - 0.08MOQ: 1000 Meters
-
UL Heatshrink Sleeving / Heat Contral Tubes / Heat Shrink Polyefelin 2:1 TubingUS$ 0.01 - 0.08MOQ: 1000 Meters
-
2:1 Flexible Heat Shrink Insulation TubingUS$ 0.01 - 0.08MOQ: 1000 Meters
-
2:1 Eco-friendly Colorful Heatshrink TubingUS$ 0.01 - 0.08MOQ: 1000 Meters
Place of Origin
Hubei, China
Brand Name
zhizheng
Model Number
LRS-1
Type
Insulation Sleeving
Material
PE
Application
Low Voltage
Rated Voltage
20KV
Tensile Strength
12MPA
Specification:
Low temperature flame resistant no-halogen heat shrink tube
LRS-1 series is widely used in electronic,electricity,military industry and ships building industry so on,is mainly use to protect wire bunches labeling wire conductors,insulating protective of wire splices,electronic components,low voltage bus bard protective and pipes anti-corrosion etc.
Shrink ratio:2:1
Consistent working temperature:-55~125centigrade
The lowest temperature performance:90centigrade
Flame resistant level:VW-1
No halogen
Passed EU RoHS ECO-protection instruction testing
Tensile strength 16MPA
Breakage elongation rate(%) 350%
Voltage resistant 20kv
Copper stability 158centigrade 7days no corrosion
Fire resistant vw-1
| Specifications | before shrinkage(mm) inner diameter D |
after shrinkage(mm) | package meter/roll |
|
| inner diameter d | wall thickness t | |||
| Φ0.8 | 1.2±0.3 | 0.4±0.1 | 0.30±0.05 | 200 |
| Φ1.0 | 1.4±0.3 | 0.4±0.1 | 0.35±0.05 | 200 |
| Φ1.5 | 1.9±0.3 | 0.6±0.1 | 0.35±0.05 | 200 |
| Φ2.0 | 2.4±0.3 | 0.9±0.1 | 0.40±0.05 | 200 |
| Φ2.5 | 2.9±0.3 | 1.1±0.1 | 0.40±0.05 | 200 |
| Φ3.0 | 3.4±0.3 | 1.4±0.1 | 0.40±0.05 | 200 |
| Φ3.5 | 3.9±0.3 | 1.6±0.1 | 0.40±0.05 | 200 |
| Φ4.0 | 4.4±0.3 | 1.8±0.1 | 0.45±0.05 | 200 |
| Φ4.5 | 4.8±0.3 | 1.9±0.1 | 0.45±0.05 | 100 |
| Φ5.0 | 5.4±0.3 | 2.3±0.2 | 0.50±0.05 | 100 |
| Φ6.0 | 6.4±0.4 | 2.8±0.2 | 0.50±0.05 | 100 |
| Φ7.0 | 7.4±0.4 | 3.3±0.2 | 0.55±0.05 | 100 |
| Φ8.0 | 8.4±0.4 | 3.8±0.2 | 0.55±0.05 | 100 |
| Φ9.0 | 9.4±0.4 | 4.3±0.2 | 0.55±0.05 | 100 |
| Φ10 | 10.5±0.4 | 4.8±0.2 | 0.55±0.05 | 100 |
| Φ11 | 11.5±0.4 | 5.3±0.2 | 0.55±0.05 | 100 |
| Φ12 | 12.5±0.4 | 5.7±0.3 | 0.55±0.05 | 100 |
| Φ13 | 13.5±0.4 | 6.2±0.3 | 0.55±0.05 | 100 |
| Φ14 | 14.5±0.4 | 6.7±0.3 | 0.55±0.05 | 100 |
| Φ15 | 15.5±0.5 | 7.2±0.3 | 0.55±0.05 | 100 |
| Φ16 | 16.5±0.5 | 7.7±0.3 | 0.55±0.05 | 100 |
| Φ17 | 17.5±0.5 | 8.2±0.3 | 0.55±0.05 | 100 |
| Φ18 | 19.0±0.5 | 8.7±0.3 | 0.60±0.05 | 100 |
| Φ20 | 21.0±0.5 | 9.7±0.3 | 0.60±0.05 | 100 |
| Φ22 | 22.8±0.8 | 10.0±1.0 | 0.60±0.05 | 25 |
| Φ25 | 25.8±0.8 | 11.0±1.0 | 0.65±0.05 | 25 |
| Φ28 | 28.8±0.8 | 13.0±1.0 | 0.65±0.05 | 25 |
| Φ30 | 30.8±0.8 | 14.0±1.0 | 0.70±0.05 | 25 |
| Φ35 | 35.0±0.8 | 16.0±1.0 | 0.70±0.05 | 25 |
| Φ40 | 41.0±1.0 | 19.0±1.0 | 0.75±0.05 | 25 |
| Φ50 | 51.0±1.0 | 24.0±1.0 | 0.80±0.05 | 25 |
| Standard color: black, red, yellow, green, blue, white, transparent | ||||
