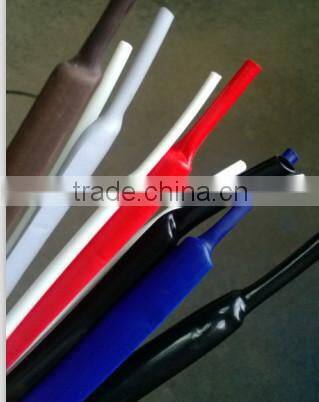

LRS-1
Non Halogen Fire Retardant Heat Shrinkable Sleeve
Product Information:
LRS-1 is environmental friendly, flame retardant and halogen free.It is widely used for insulation, anti-corrssion, protection and color coding etc.
Product Application:
1 Wire splices and terminations
2.Jacketing of Wire harnesses
3 Mechanical protection and fire-resistant covering
4 Insulation and strain relief of terminals and connections
Product Features:
1.Operating Temperature:-55~ 125 centi degree;
2.Shrinking Temperature:Start at 70 centi degree,and shrunk totally at 110centi degree
3.halogen free, flexible,flame retardant;
4.Certificate: SGS test, Rohs, UL, Reach, ISO.
5 Standard color:black,white,red,yellow,green,blue, more colors available upon request
Specification Catalogue:(Size Chart)
Specification |
Before shrinkage(mm) |
After shrinkage(mm) |
Packaging |
|
Inner Diameter-D |
Inner diameter-d |
Thickness-t |
m/roll |
|
φ0.8 |
1.2±0.3 |
0.4±0.1 |
0.30±0.05 |
200 |
φ1.0 |
1.4±0.3 |
0.4±0.1 |
0.35±0.05 |
200 |
φ1.5 |
1.9±0.3 |
0.6±0.1 |
0.35±0.05 |
200 |
φ2.0 |
2.4±0.3 |
0.9±0.1 |
0.40±0.05 |
200 |
φ2.5 |
2.9±0.3 |
1.10±0.1 |
0.40±0.05 |
200 |
φ3.0 |
3.4±0.3 |
1.4±0.1 |
0.40±0.05 |
200 |
φ3.5 |
3.9±0.3 |
1.6±0.1 |
0.40±0.05 |
200 |
φ5.0 |
5.4±0.3 |
2.3±0.2 |
0.50±0.05 |
100 |
φ6.0 |
6.4±0.4 |
2.8±0.2 |
0.50±0.05 |
100 |
φ7.0 |
7.4±0.4 |
3.3±0.2 |
0.55±0.05 |
100 |
φ8.0 |
8.4±0.4 |
3.8±0.2 |
0.55±0.05 |
100 |
φ9.0 |
9.4±0.4 |
4.3±0.2 |
0.55±0.05 |
100 |
φ10.0 |
10.5±0.4 |
4.8±0.2 |
0.55±0.05 |
100 |
φ11.0 |
11.5±0.4 |
5.3±0.2 |
0.55±0.05 |
100 |
φ12.0 |
12.5±0.4 |
5.7±0.3 |
0.55±0.05 |
100 |
φ13.0 |
13.5±0.4 |
6.2±0.3 |
0.55±0.05 |
100 |
φ14.0 |
14.5±0.4 |
6.7±0.3 |
0.55±0.05 |
100 |
φ15.0 |
15.5±0.5 |
7.2±0.3 |
0.55±0.05 |
100 |
φ16.0 |
16.5±0.5 |
7.7±0.3 |
0.55±0.05 |
100 |
φ17.0 |
17.5±0.5 |
8.2±0.3 |
0.55±0.05 |
100 |
φ18.0 |
19±0.5 |
8.7±0.3 |
0.60±0.05 |
100 |
φ20 |
21.0±0.5 |
9.7±0.3 |
0.60±0.05 |
100 |
φ22 |
22.8±0.8 |
10.0±1.0 |
0.60±0.05 |
25 |
φ25 |
25.8±0.8 |
11.0±1.0 |
0.65±0.05 |
25 |
φ28 |
28.8±0.8 |
13.0±1.0 |
0.65±0.05 |
25 |
φ30 |
30.8±0.8 |
14.0±1.0 |
0.70±0.05 |
25 |
φ35 |
35.0±0.8 |
16.0±1.0 |
0.70±0.05 |
25 |
φ40 |
41.0±1.0 |
19.0±1.0 |
0.75±0.05 |
25 |
φ50 |
51.0±1.0 |
24.0±1.0 |
0.80±0.05 |
25 |
φ60 |
61.0±1.0 |
29.0±1.0 |
0.80±0.05 |
25 |
φ70 |
71.0±1.0 |
33.0±2.0 |
0.85±0.05 |
25 |
φ80 |
81.0±1.0 |
37.0±2.0 |
0.90±0.05 |
25 |
φ90 |
91.0±1.0 |
43.0±2.0 |
0.95±0.05 |
25 |
φ100 |
102.0±2.0 |
48.0±2.0 |
1.00±0.05 |
25 |
φ120 |
122.0±2.0 |
58.0±2.0 |
1.10±0.05 |
25 |
φ150 |
152.0±2.0 |
73.0±2.0 |
1.10±0.05 |
25 |
Notes: Other specifications can be offered as requested. | ||||
Technical data sheet | |||
Description |
Test Methods |
Values |
|
Physical |
Tensile strength(Mpa) |
GB/T1040 |
≥12 |
Breakage elongation rate(%) |
≥200 |
||
Tensile strength(Mpa) |
UL224 158°C*168hr |
≥10 |
|
Breakage elongation rate(%) |
≥200 |
||
Low temperature flexibility |
(-40°C x 4h) |
No cracking |
|
Electrical |
dielectric strength(KV/mm) |
GB/T1408 |
≥15 |
Voltage resistant |
UL224 |
2.5KV No breakdown |
|
volume resistivity(ohm.cm) |
GB/T1410 |
≥1*1014 |
|
Chemical |
Anti-corrosive performance |
UL224 158°C*168hr |
Pass |
Copper stability |
Pass |
||
Fire resistant |
UL224 |
VW-1 |
|

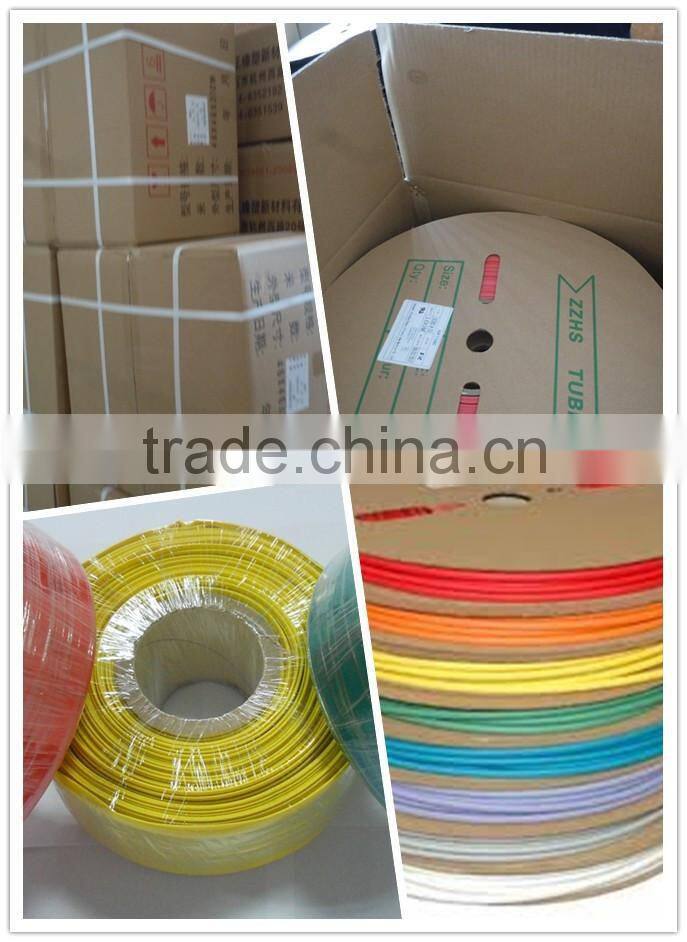

Packaging and shipping:
Packaging: 200m/roll, 100m/roll, 50m/roll, 1.22m/roll etc. (Can be packed or cutted as request)
Shipping:By express(Samples), by air, by sea(Large volume)
Our Services:
1.Payment Terms:T/T transfer, Paypal, Western Union.
2.Delivery time: 10-15 days upon quantity.
3. Samples could be offered free withn 1-5 meters, but the express charge is on the customer’s side.
4.Prompt reply and enthusiastic service.

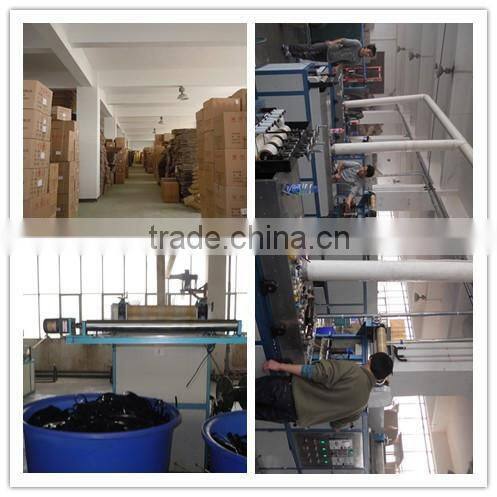

Company Information:
We are manufactuer of heat shrink tubes for more than 15 years. Our products are widely exported to Asia, North America and Europe etc. We promise to supply you our products in great quality and competitive price.
FAQS:
Things needs to be confirmed before quotation:
1. What type of the heat shrink tube do you need?
1.) Single wall flame retardant heat shrink tube 2.)Adhesive lined double wall heat shrink tube 3.)1KV/11KV/36KV Busbar protection heat shrink tube 4.) Medium wall heat shrink tubes (You can visit our product catergories in our website on alibaba.)
2. What size (inner diameter of the tube)?
Look at the Specification chart.
3. What Color?
Color available: black,white,red,yellow,green,blue, more colors available upon request
4.Shrink ratio?
2:1, 3:1, 4:1
