Flexible Thin Wall Pet Heat Shrink Pipe Sleeves

Flexible Thin Wall Pet Heat Shrink Pipe Sleeves photo-1

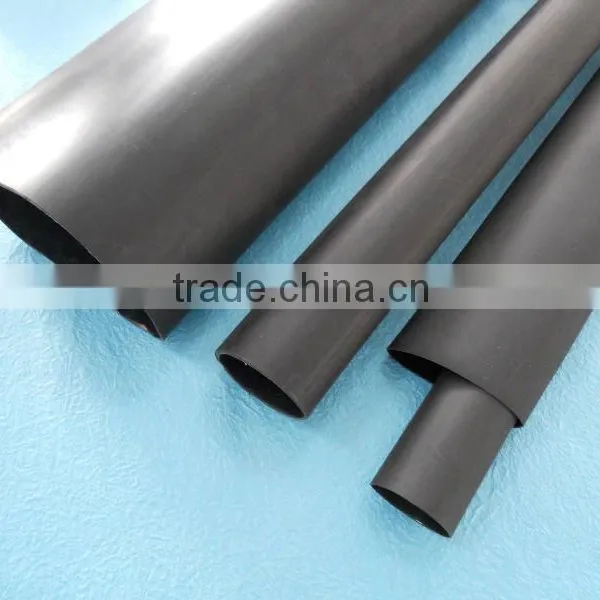

Flexible Thin Wall Pet Heat Shrink Pipe Sleeves photo-2
Flexible Thin Wall Pet Heat Shrink Pipe Sleeves photo-3
Flexible Thin Wall Pet Heat Shrink Pipe Sleeves photo-4
Flexible Thin Wall Pet Heat Shrink Pipe Sleeves photo-5
Flexible Thin Wall Pet Heat Shrink Pipe Sleeves photo-6
US$ 0.01 - 0.08 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
zhizheng
Model Number:
LRS-CB
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hubei, China
Brand Name zhizheng
Model Number LRS-CB

LRS-CB series is used for protection of temperature senstive component and it's wire.with thin wall,LRS-CB has characteristic of quickly shrinkable to avoid damages by longtime heating.

specification:
thin wall,flexiability,low temperature shrinkable,quick shrink.
consistent operating temperature:-55centigrade-125centigrade
complete shrink temperature 90centigrade
shrink ratio 2:1
EU Rohs passed
standard color black

tensile strength 14mpa
breakage alongation 400%
water absorption 0.2%
volume resistant rate 2x10 14
anti corrosion 168 hs 158centigrade no corrosion
voltage resistant 23kv
flame resistant vw-1





Specifications before shrinkage(mm)
inner diameter   D
after shrinkage(mm) package
meter/roll
inner diameter   d wall thickness   t
1.0/0.5 1.4±0.3 0.5±0.1 0.25±0.05 200
1.5/0.75 1.9±0.3 0.7±0.1 0.25±0.05 200
2.0/1.0 2.4±0.3 0.9±0.1 0.25±0.05 200
2.5/1.25 2.8±0.3 1.15±0.1 0.25±0.05 200
3.0/1.5 3.4±0.3 1.4±0.1 0.25±0.05 200
3.5/1.75 3.9±0.3 1.65±0.1 0.25±0.05 200
4.0/2.0 4.4±0.3 1.9±0.1 0.25±0.05 200
4.5/2.0 4.9±0.3 1.9±0.1 0.25±0.05 100
5.0/2.5 5.5±0.3 2.3±0.2 0.25±0.05 100
6.0/3.0 6.5±0.3 2.8±0.2 0.25±0.05 100
7.0/3.5 7.5±0.3 3.3±0.2 0.25±0.05 100
8.0/4.0 8.5±0.3 3.8±0.2 0.25±0.05 100
9.0/4.5 9.5±0.3 4.3±0.2 0.25±0.05 100
10/5.0 10.5±0.3 4.8±0.2 0.25±0.05 100
11/5.5 11.5±0.3 5.3±0.2 0.25±0.05 100
12/6.0 12.5±0.3 5.7±0.3 0.25±0.05 100
13/6.5 13.5±0.3 6.2±0.3 0.25±0.05 100
14/7.0 14.5±0.3 6.7±0.3 0.25±0.05 100
15/7.5 15.5±0.3 7.2±0.3 0.25±0.05 100
Standard color: BLACK
