Suitable use scope:
This series of models using hot air circulation shrink, mainly shrink label for bottle-shaped bottle, jars, cups etc.
For food, beverages, pharmaceuticals, cosmetics, pesticides and other industries glass bottles,
plastic bottles, cups and other containers, bottle r cup body heat shrikable sleeve label after label
|

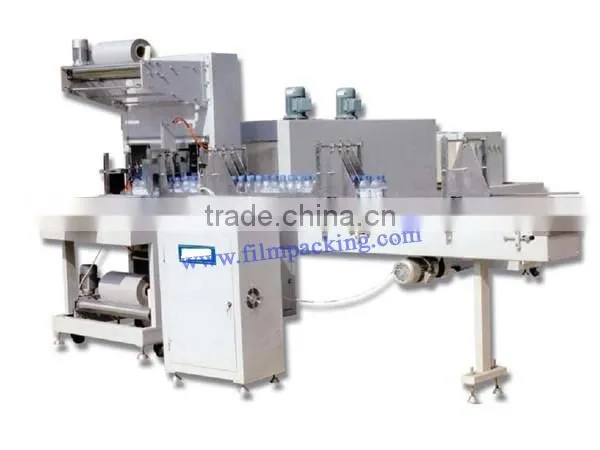

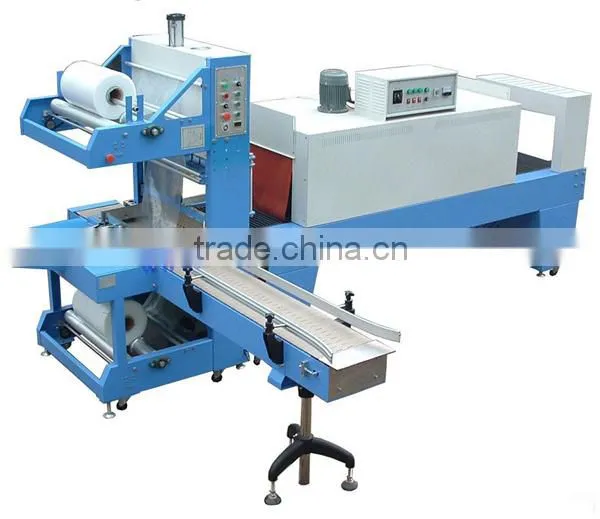

Full-automatic Sleeve(without tray) Sealing and Shrink Wrapping Machine ST-6030AH+SM-6040M | ||
Model |
ST-6030AH |
SM-6040M |
Machine type L×W×H(mm) |
1384×2716×1991 |
2800×900×1690 |
Tunnel dimension L×W×H(mm) |
/ |
1800×600×400 |
Max. packing size L×W×H(mm) |
400×300×300 |
1300×400×300 |
Sealing size length (mm) |
700 |
/ |
Temperature(℃) |
0-200 |
0-400 |
Work table height(mm) |
850±50 |
850±50 |
Packing speed (pcs/min) |
6-14 |
25-30 |
Machine weight (kg) |
490 |
600 |
Power(kw) |
1.5 |
24 |
Power |
3PH380V50Hz |
3PH380V50Hz |
Air pressure(kg/cm²) |
6-8 |
/ |
Application film |
PE |
PE |
Technical Advantages:
1> Designed for packaging bottles with or without a tray, connectable to the production line ,
auto feeding film wrapping, sealing& cutting, shrinking and cooling. Different packaging modes
2> State-of-the-art technology and artwork adopted, machine's stability and reliability guaranteed.
3> OMRON PLC adopted to realize the integration of the machine, electricity and air
4> Imported advanced manufacturing technology adopted with unique appearance
5> Automatic combination packaging such as heap-tidying in 5 layers/4 layers/3 layers/2 layer
or in multi-rows fulfilled without additional moulds.
6> Stable conveying and film feeding ensured via the adoption of the worm gear reducer, ensure
Special sealing blade to prevent film crack and sticking.
7> Optional auto feeding system according to the bottle shape
8> Color code locating system needed to seal color film
9> Precise location via the introduction of the imported photoelectric system
10> The conveying belt can be set on the left or right side according to the customer request
11> Double blowing motors adopted to dissipate the hot wind uniformly in the tunnel to achieve
better effect after shrinking
12> Fed by poles chain which selects solid steel pole covered by imported silica gel, durable and
bearable high tension after long time use
13> Transducer adopted to control the conveying speed; stepless speed changing.
14> Human-oriented designed control box easy to operate
Qingdao Shunyi Packaging Machinery Co.,Ltd, a scientific machinery enterprise integrated with R&D, manufacturer and trade, the factory owns an experienced R&D team in machinery, and has got several State Invention & Practical New-type Patent Certificates. The products' quality is recognized by CE certificate of EU. For tens of years' continuous development, the factory's products with "shunyi" brand are in high repute among the machinery industry.
1. What about your wrapping machine quality?
Our factory has 16 years experience in wrapping machine; already get ISO9001, SGS
certificate, CE certificate; already exported into many countries and areas; already got
customer’s good reputation.
2. What about your wrapping machine price?
Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. What about your company service for wrapping machine?
Guarantee is one year, we will supply spare parts or send engineers to your side free,
we will give you service anytime, 24 hours, 7days.
We already have 16 years manufacturing experience, and will supply best service to each customer,trust you,we will be your best choice.
Packaging Details: |
by wooden case suitable for sea transport |
Delivery Detail: |
15days after recived the deposit |
