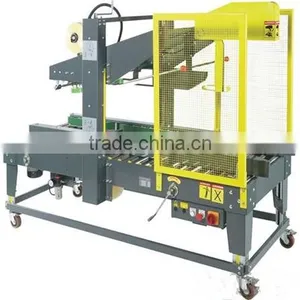

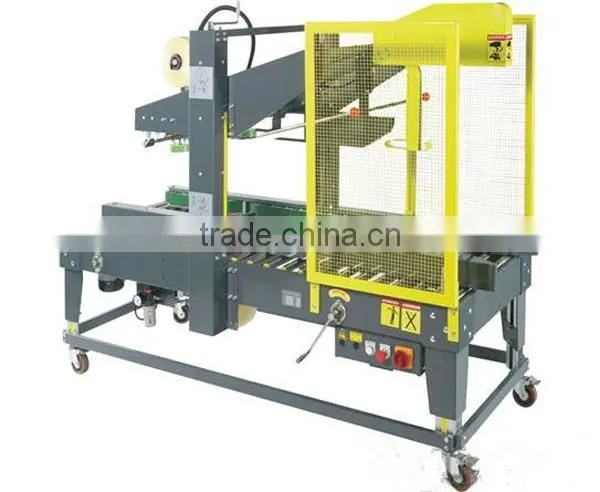

Easy Operation Carton Box Sealer Sealing Machine

Easy Operation Carton Box Sealer Sealing Machine photo-1
Easy Operation Carton Box Sealer Sealing Machine photo-2
Easy Operation Carton Box Sealer Sealing Machine photo-3
Easy Operation Carton Box Sealer Sealing Machine photo-4
Easy Operation Carton Box Sealer Sealing Machine photo-5
Easy Operation Carton Box Sealer Sealing Machine photo-6
US$ 1,300 - 2,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical, Textiles
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Medical, Textiles
Packaging Type Case
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220V,380V/50HZ
Power 240W
Place of Origin Shandong, China
Brand Name Shunyi
Model Number SPA-50
Dimension(L*W*H) 1020*850*1350mm
Weight 130kg
Certification ISO9001,CE,SGS
After-sales Service Provided Engineers available to service machinery overseas
Product Description
Model
FX-557F
Electrical
1PH,110V/220V,50HZ/60HZ
Power
374W
Air compressor consumption
6kg/cm2
Tape width
2’’or 3’’
Tape inner dia.
Φ76mm
Tape outer dia.
280mm(T0.05mm×L1000yd)
Belt conveyor method
Two side belt
Belt speed
20m/min
Sealing carton speed
700 (L300×W300×H300mm) carton/h
Loading weight
Max.30kgs
Packing size
L:200-500,W:120-500,H:110-500mm
Working table height
550-810mm
Machine dimension(L×W×H)
2076×1002×1551-1881mm
Wooden case size (L×W×H)
2147×1058×1524
Machine weight
395kgs

Technical Features:

Automatic upper flap-folding,Easy operation,New type of tape head
Both side compression rollers for tight sealing
Top mast with cushion for smooth sealing
Tape overlap length 60±5mm
Two-side belt driven with universal bearing: Precise, Low noise, Durable parts and belt
Caster with brake

OPTIONS:
1.Detection for no OPP tape.
2.Detection for taping failure.
3.Detection for not cutting tape off.
4.Extension roller table L370/500 x W530mm.
5.60 sec. auto-stop: electricity-saving.
6.Tape overlap length 70±5mm.
7.Closer type roller table:Suitable for articles under 50kgs or tall-thin cartons".
8.Closer type extension roller table:Suitable for article under 50kgs or tall-thin cartons.
9.Safety fence
10.2 " or 2.5" tape bushing.
11.Bigger tape roll O.D. 340mm (13.5")


Other machines

Stretch film pallet wrapping machine

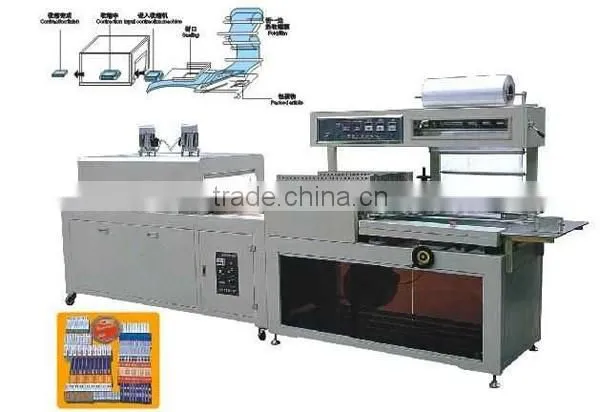

Heat shrink packaging machine


Automatic Power Roller Table Strapping Machine


Know us

We already have 16 years manufacturing experience, and will supply best service to each customer,trust you,we will be your best choice.


FAQ

You will care the following FAQ:

1. What about your carton sealer quality?
Our factory has 16 years experience in mechanical processing; all our machines already

get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas;

already got customer’s good reputation.

2. What about your carton sealer price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first,

on the top quality basis, Sure you will get reasonable and satisfied price!

3.Can you send me the video to show how the machine works?
Certainly, we have made video of every machine and uploaded them by our chain address.

4.What about your installation service and sales service for carton sealer?
1>Guarantee is one year, we will supply spare parts or send engineers to your side if you need,

we will give you service anytime, 24 hours, 7days.
2>We already prepare technical manual and operation video to show our customers, then it will

be easy to install and use the machine.
3>It is free to train your worker in our factory or in your side or by video.
