Carton sealing machine

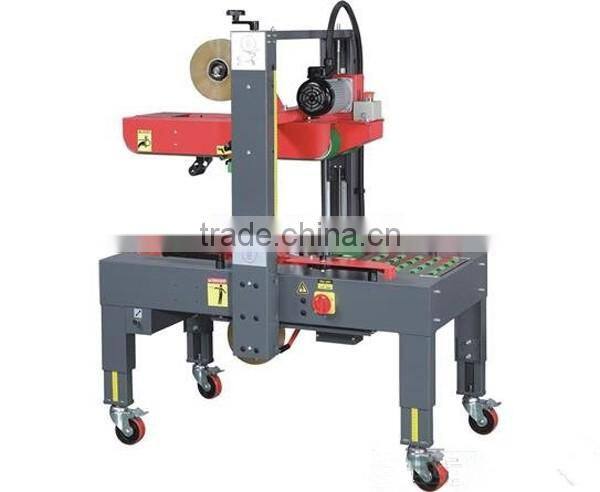

Up&down and left&right double drive box sealing machine
Model |
EXC-306 |
Carton size(L*W*H) |
150-any*200-500*100-500 |
Working table height |
570-750mm |
Sealing speed |
1000-1200cartons/h |
Machine dimension(L*W*H) |
1000*820*1350mm |
Electrical |
1PH,220V,50HZ |
Tape size |
W:48-60-75*L:1000yd |
Machine weight |
180kgs |
Technical Features:
v This machine is a carton sealer which the operation line adopts single structure.
v Designed by traditional method to feed the cartons by drive belt and then to seal it by adhesive tape.
v 1-2 minutes to make adjustment for applicable carton sizes manually.
v Versatile for all kinds of paper cartons
v Economical, labor saving, beautiful and mobile
v Precisely designed and structured, durable and heavy duty
Attaching effect better than manual work, efficient and costeffective.
Model |
FX-551TB |
Electrical |
1PH,220V,50HZ |
Power |
374W |
Tape width |
2’’ or 3’’ |
Tape inner dia. |
Φ76mm |
Tape outer dia. |
280mm(T0.05mm*L1000yd) |
Belt conveyor method |
Up and down belt |
Belt speed |
20m/min |
Sealing speed |
1800(L300*W300*H300) |
Loading weight |
Max.30kgs |
Carton size |
L:150-any,W:200-500,H:120-500mm |
Work table height |
570-810mm |
Machine dimensions(L*W*H) |
1200*779*1420-1765mm |
Wooden case size (L*W*H) |
1286*836*1474 |
Machine weight |
211kgs |
Technical Features:
v Easy operation; New type of tape head.
v Two-side guiding rail (separately adjustable).
v Both side compression rollers for tight sealing.
v Tape overlap length 60±5mm
v Top mast with cushion for smooth sealing.
v Large-sized driven pulley (Ø102mm):Smaller belt arc, Larger pulley-belt contact area, Non-slippery, and Durable.
v Wider belt (75mm) for better seizing. Belt with linking buckle:Easy to change Caster with brake.
OPTIONS
Extension roller table L370/530 x W620 mm
60 sec. auto-stop: electricity-saving
Tape overlap length 70±5mm
Sealing width or height can be increased
2" or 2.5" tape bushing
Stainless steel structure SUS #304
We already have 16 years manufacturing experience, and will supply
best service to each customer,trust you,we will be your best choice.
You will care the following FAQ:
1. What about your carton sealer quality?
Our factory has 16 years experience in mechanical processing; all our machines already get ISO9001,
SGS certificate, CE certificate; already exported into many countries and areas; already got customer’s
good reputation.
2. What about your carton sealer price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top
quality basis, Sure you will get reasonable and satisfied price!
3.Can you send me the video to show how the machine works?
Certainly, we have made video of every machine and uploaded them by our chain address.
4.What about your installation service and sales service for carton sealer?
1>Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give
you service anytime, 24 hours, 7days.
2>We already prepare technical manual and operation video to show our customers, then it will be easy to
install and use the machine.
3>It is free to train your worker in our factory or in your side or by video.
