Main Characteristic:

 1. By utilizing the apparent resistivity parameters, it is widely used in hydrology, environmental  protection, engineering geophysical exploration, metal and non-metal mineral resources exploration.

2. Easily can observe the apparent resistivity and apparent polarizability at the same time.

3. Measurement and control host can work standalone and it has all the functions of DZD-6A multi-functional direct current instrument.

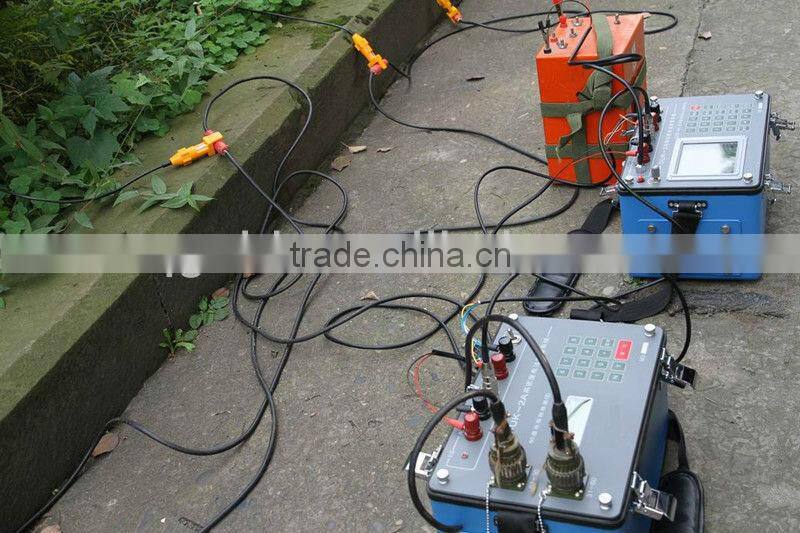

System components:

1. Measurement and control host (DZD-6A multi-functional direct current instrument);

2.  DUK-2A type 60-channel or 120-channel multiplex electrode switch;

3.  Cables, electrodes and other related accessories.

Receiver

Measured voltage range: ±6V

Measured voltage resolution: 0.01mV

Measured voltage accuracy: ±1%±1LSB

Input resistance: >50MΩ

Apparent polarizability measuring accuracy: ±1%±1LSB

Current measurement range: 5A

Current measuring accuracy: ±1%±1LSB

Notch filter to 50HZ is superior to 80dB

SP compensation range: ±1V

Transmitter

Max power supply voltage: 900V

Max power supply current: 5A

Power supply pulse width: 1~59 sec. Take-up to blank ratio is 1:1

Current: ≤60mA

Others

Operating temperature: -10°C~+50 °C, 95%RH

Storage temperature: -20°C~+60 °C

Power supply: eight 1# batteries (or with the same scale)

Weight: <7kg
