Model
Para. |
DCK420/ DCK420Y |
DCK460/ DCK460Y |
DCK470/ DCK470Y |
DCK500/ DCK500Y |
DCK200/DCK200A |
DCK420S |
DCK200S |
K720 |
DCK420DC/DCK460DC |
|
Power supply |
AC single phase 220±10%V 50Hz |
AC 3-phase 380±10%V 50Hz |
DC 24V
|
|||||||
|
Motor rotation |
1400r/min |
2800 r/min |
1200 r/min |
|||||||
Reducing ratio |
30 |
30 |
30 |
|||||||
Tooth number of gear |
12 |
12 |
12 |
-- |
-- |
16 |
12 |
|||
Tooth number of chain wheel |
—— |
-- |
-- |
16 |
16 |
—— |
-- |
|||
Open speed |
12m/min |
14m/min |
18.8 m/min |
16m/min |
||||||
Output torque |
>18N.m |
>20N.m |
>20N.m |
>25N.m |
>12N.m |
|||||
Motor power |
450W |
450W |
450W |
500W |
550W |
500W |
550W |
750W |
200W |
|
Ambient temp |
-40℃~55℃ |
|||||||||
|
Net weight
|
~18Kg |
|||||||||

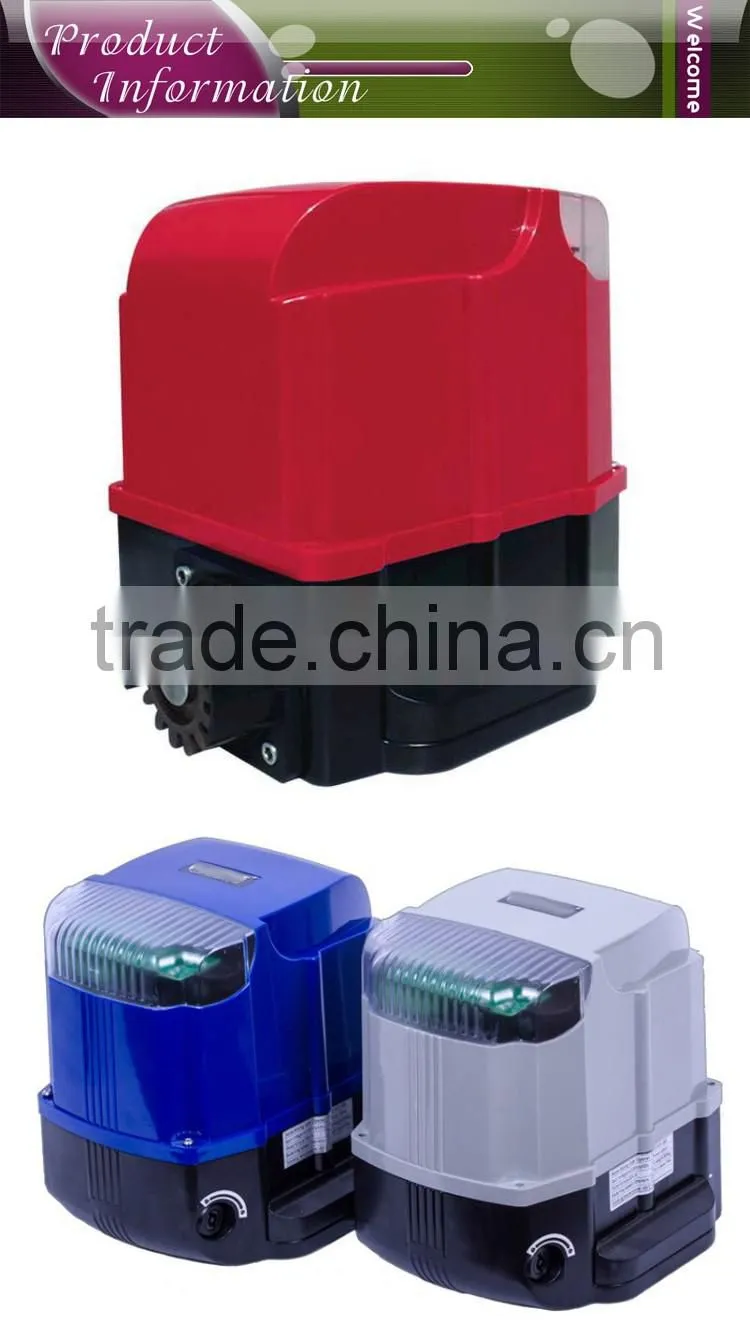

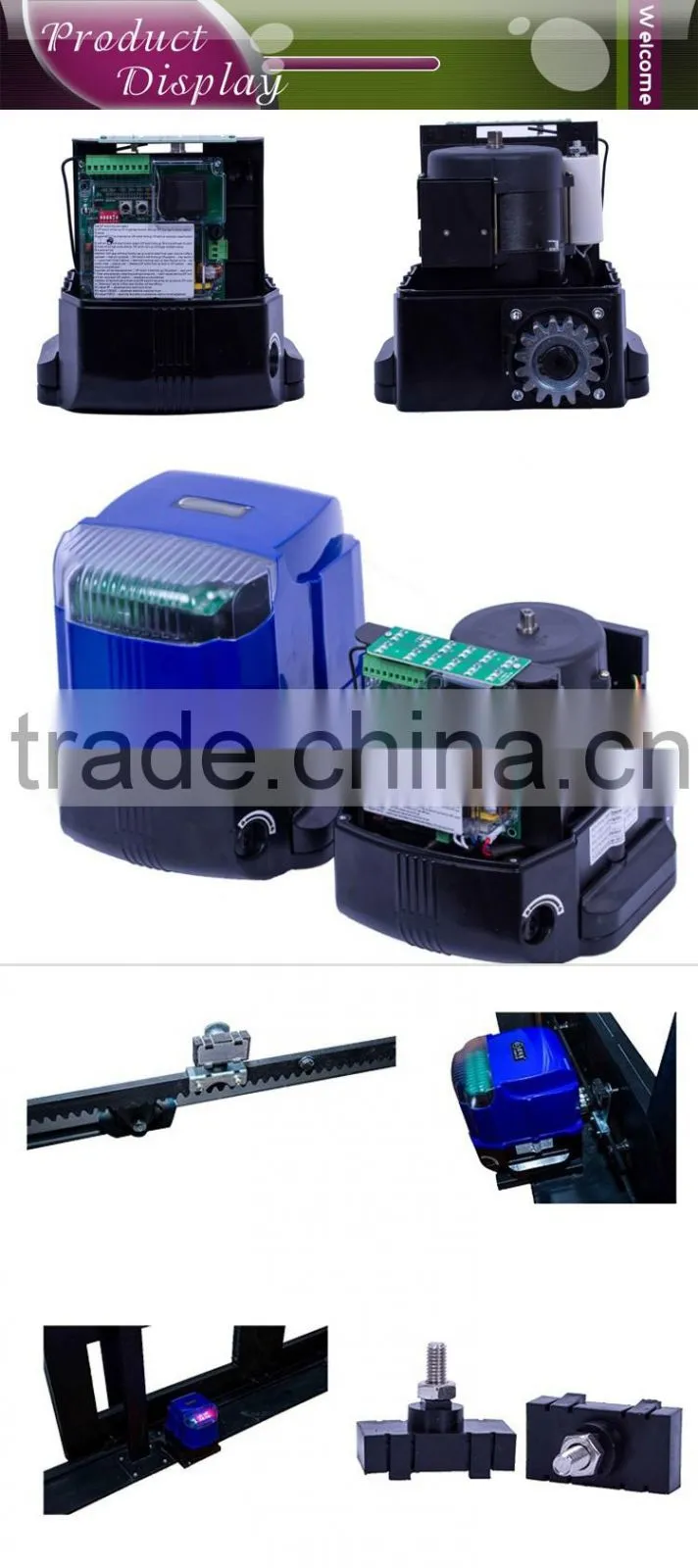

sliding door motor
The first flexible opening and closing technology, it can make the motor soft start and stop, better protection of the door body
The first electronic limit, precision positioning and zero error
Two steps to brake the motor ;The gear structure with three levels for variable speed; Equippe with wireless wall switch;
And.... it can be fitted with double electric locks, can be equipped with wireless safty edge, wireless infrared sensor.
Different Material inside the motor for your choose (with different prices)

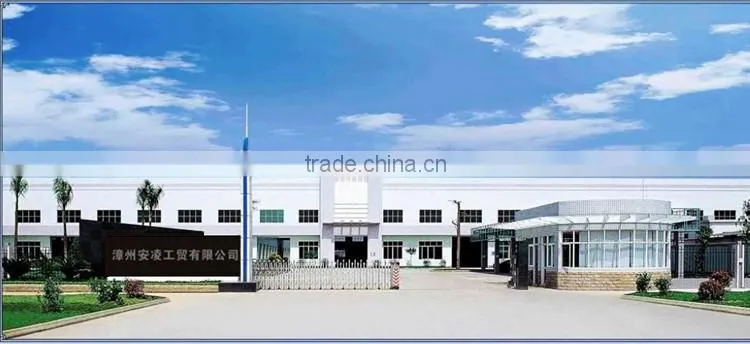

Our company is specialized in making electronic rolling door ,rolling door motor,door sheet and finished door, which is a comprehensive company of research and development. We undertake the rolling door from all countries, and provide OEM serves according to customers’ needs(the door sheet includes aluminium alloy and color steel). We export to the Middle East, southeast Asia, (Vietnam, Brazil, Iran) for many years, and we can provide different countries export standard and certificate of the rolling door motor. We have our own R&D team,which has more then 10 years experience in rolling door motor. Our factory covers an area of 3000 square meter, which has high quality products, advanced test equipment and perfect after-sale services. We devote ourselves to the customers and the career with strong responsibility, and adhere to the principle of "quality first". Good quality, reasonable prices and stylish design are what make us win the trust and support from our masses of customers. we sincerely welcome customers from all over the world. We promise to provide the best quality products and services for every customer.
1.OEM service
2.Warranty: 1 Years
3.Good after-sales services
4.Any inquiry/question will be reply in 24 hours during working days.
1.What is your MOQ?
Our MOQ is usually 20 sets.
2.What is your delivery time?
The time of delivery is within 20 days after receipt of deposit.
3.What is the shipping port?
We ship the goods via Xiamen Port.
4.What is your terms of payment?
We accept 30% T/T in advance,70% against copy of B/L or before shipment.
5.What are your main products?
Our main products are rolling door motor, sliding gate/door opener, swing gate/door opener and the accessories.
