Home > Products > DC Door Motor > Excellent Quality Harga Rolling Door Motor dc 24v
Excellent Quality Harga Rolling Door Motor dc 24v
- xiamen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | ANLING | |
| Model Number | AL-07 harga rolling door motor |
Product Description

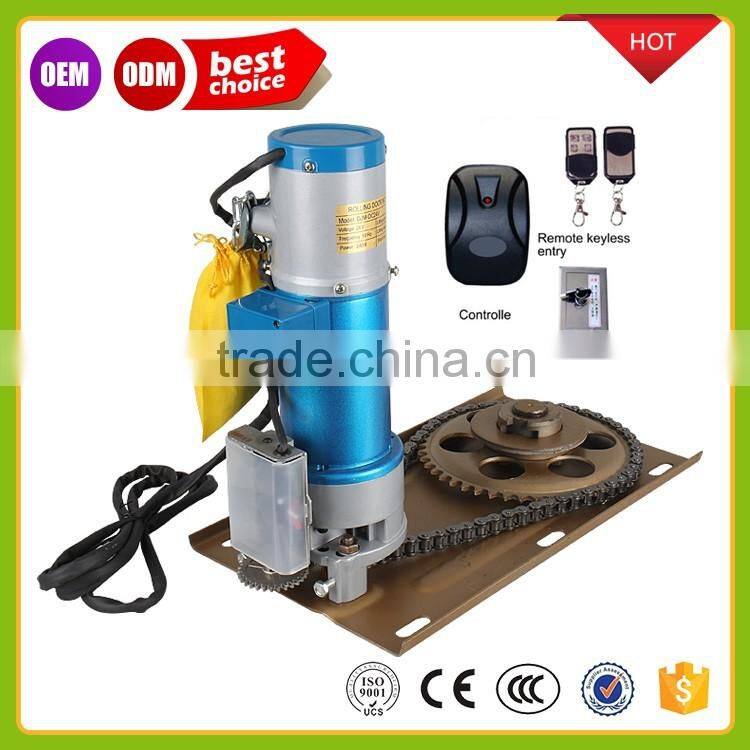

excellent quality harga rolling door motor dc 24v
was set up for 10 years
MAIN TECHNICAL PARAMENT | |||||||||
Model | Power source | Rated frequency | Rated Power (W) | Rate Load | Output rotate speed(R/.MIN) | Max raising height (M) | Short-team ration (MIN) | ||
Rated current (A) | Lifting Force (KG) | Output torque (N.M) | |||||||
AL-1P-I(300Kg) | 220V | 50Hz | 180 | 2.5 | 300 | 150 | 5.2 | 6.0 | 8 |
AL-1P-(400Kg) | 220V | 50Hz | 220 | 2.5 | 400 | 168 | 5.2 | 6.0 | 8 |
AL-1P(500Kg) | 220V | 50Hz | 250 | 2.5 | 500 | 168 | 5.2 | 6.0 | 8 |
AL-1P-(600Kg) | 220V | 50Hz | 370 | 3.5 | 600 | 412 | 5.2 | 6.0 | 8 |
AL-3P-(600Kg) | 220V | 50Hz | 300 | 3.5 | 600 | 412 | 5.2 | 6.0 | 8 |
AL-1P-(800Kg) | 220V | 50Hz | 400 | 4.0 | 800 | 647 | 4.6 | 9.0 | 8 |
AL-3P-(800Kg) | 380V | 50Hz | 400 | 4.0 | 800 | 647 | 4.6 | 9.0 | 8 |
AL-1P-(1000Kg) | 220V | 50Hz | 400 | 4.5 | 1000 | 810 | 4.2 | 9.0 | 8 |
AL-3P-(1000Kg) | 380V | 50Hz | 400 | 4.5 | 1000 | 810 | 4.2 | 9.0 | 15 |
AL-3P-(1300Kg) | 380V | 50Hz | 800 | 4.5 | 1300 | 1401 | 4.2 | 13.0 | 15 |
AL-3P-(1500Kg) | 380V | 50Hz | 800 | 4.5 | 1500 | 1617 | 3.8 | 13.0 | 15 |
AL-3P-(2000Kg) | 380V | 50Hz | 1500 | 4.5 | 2000 | 2450 | 3.6 | 15.0 | 15 |

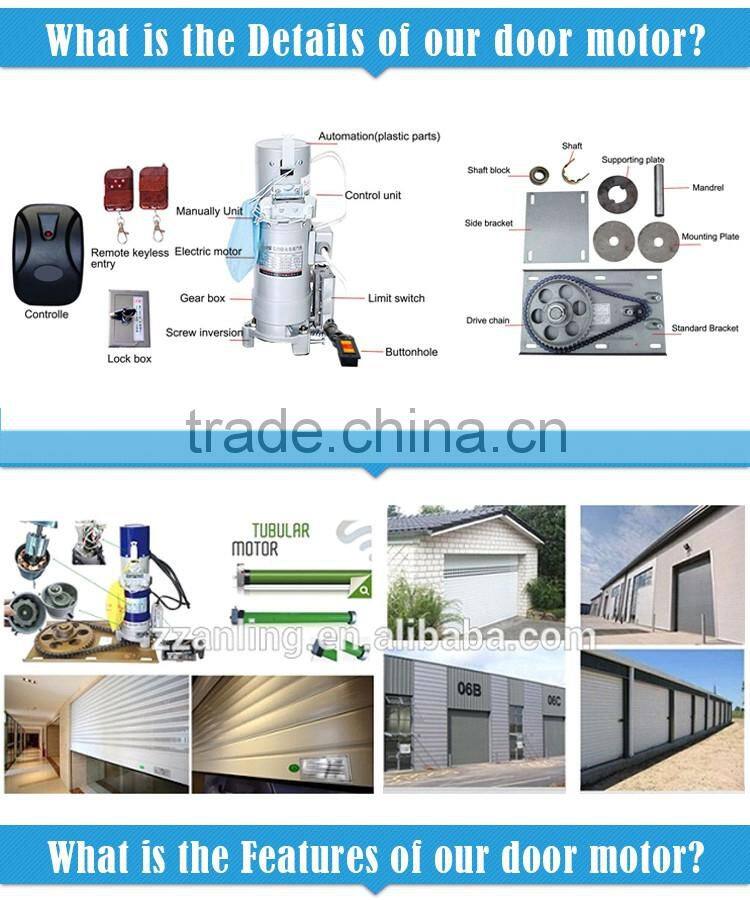

What is the Features of our door motor?
1) Shell: Aluminium alloy, solid and light but durable and easy to install.
2) Gear: High-quality alloy steel and special technical treatment to guarantee the strong hoist.
3) Brake structure: special device mechanical brakes, power cut off in an instant
the brakes, to ensure absolute safety brake.
4) Limit System: Correct control, easy operation, and big control range.
5) Transmission System: High accuracy, smooth running, and low noise.
6) Anti-dro garage door motor
packing spare parts
1:Motor(Including power line)
2.Remote controller(Including 2 transmitter)
3:Bracket board(Including random accessories)
Random accessories
1:Bracket board 1 pc 2.Big sprocket wheel 1set 3.Rolling chain 1 set 4:shaft 1pc 5:Bearing,bearing block 1set
6.Strapdrive 1pc 7.support plate 2pc 8.Screw spare parts 1 package
INSPECTION, PACKING AND SHIPPING
| AC door motor | DC door opener |

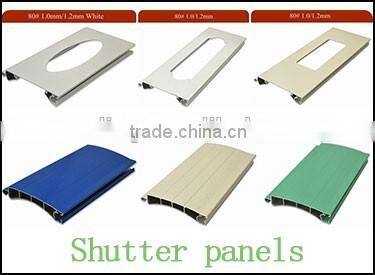

| Sliding motor | Shutter pannel |
Welcome to visit our alibaba website http://zzanling.en.china.cn and
Add Company to My Favorites
FAQ
- QWhat is the MOQ ?
- A1 ton for our own available designs
- QCan I mix different designs?
- ASure!
- QCan I get a lower price if I order large quantities?
- AYes, cheaper prices with more bigger size orders.
- QCan I add or delete items from my order if I change my mind ?
- AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change it. It is about 2 days after confirming the order.
- QCan I get the pre-production sample ?
- AYes, we will send you free sample, after you confirm, then we will start production.
- QWhen you ship my order?
- ANormally 1-7days after receiving your payment, but it can be negotiated based on order qty and production schedule.
- QHow about the quality guarantee period?
- AFive year!
- QHow can you guarantee the production quality ?
- AOur production quality follow AS/NZS 4859.1standard We have 15years experience of QC team. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
