200m drilling depth Water well drilling rig for sale
Introduction about water well drilling rig:
HZ-200YY water well drilling rig is mainly used for geological general investigation and
exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure,
river levees, subgrade grounting hole, drilling and driect grouting, civil wells and earth temper
-ature central air-conditioner etc.
Character about HZ-200YY water well drilling rig:
1,53*59 Drilling rod adopted,high rigidity and strong delivery torque.
2,the machine is equipped with national patent technology-taper clutch,with characteristics of strong transmission torque,easy operation and free maintenance.
3,For the winch,we use large modle planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the winch.
4,Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.
5,We are the first oen to equip mud pump with the flow 160L/min in china,so that it will save cost and also make the machine compact,mobile and lightweight.
Detailed data about water well drilling rig:
Specifications | ||
Unity machine parameter | ||
Drilling depth |
30--200m |
|
End hole caliber |
500-75mm |
|
Drill rod caliber |
50mm |
|
Drilling angle |
90°~75° |
|
Drill weight (No include power) |
910kg |
|
Unity machine dimensions |
2.5×1×1.3 2.5×0.9×1.3m |
|
Spindle | ||
spindle speed |
64,128,287,557r/min |
|
Spindle stroke |
450mm |
|
Hoist | ||
Max.single line hoisting capacity |
2500kg |
|
Single line lifting speed |
17,35,75,151r/min |
|
Tightrope caliber |
12.5mm |
|
Tightrope cubic measure |
35m |
|
Hug floodgate caliber |
254mm |
|
Hug folldgate belt width |
70mm |
|
Distance between drill and hole |
400mm |
|
Mud pump - Specifications | ||
Type |
Horizontal single urn twin-action |
|
Displacement |
170L/min |
|
Diesle engine |
S1115 model 22HP |
|
Electric motor |
Y160M—4 15kw 1440r/min |
|
Maximum pressure |
1.5Mpa |
|
Work pressure |
0.7Mpa |
|
Water inlet caliber |
40mm |
|
Water to exit caliber |
30mm |
|
Triangle conveyer belt |
B1728mm |
|

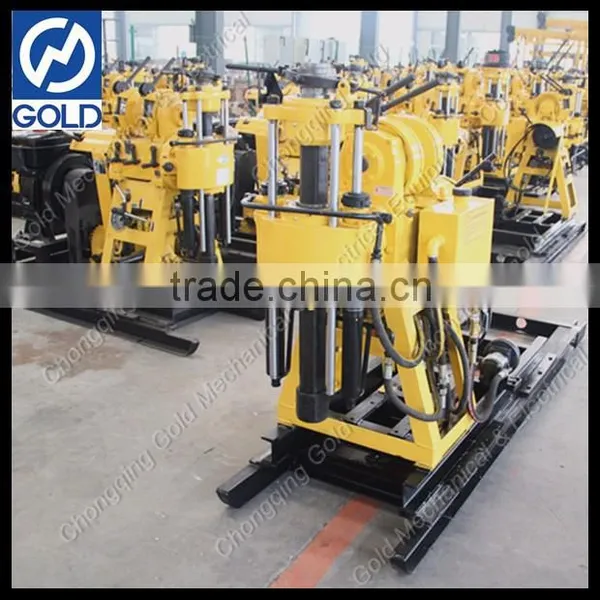

Water well drilling rig in the factory:
Welcome to visit us!
Any questions about water well drilling rig,please contact Elsa.
Phone/whatsapp/wechat:0086-15922980256
Skype:goldinstrument
