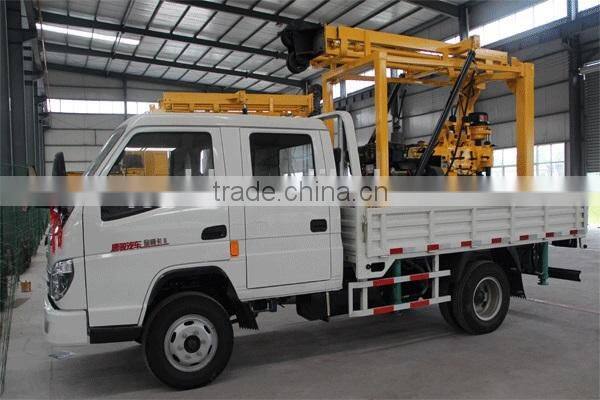

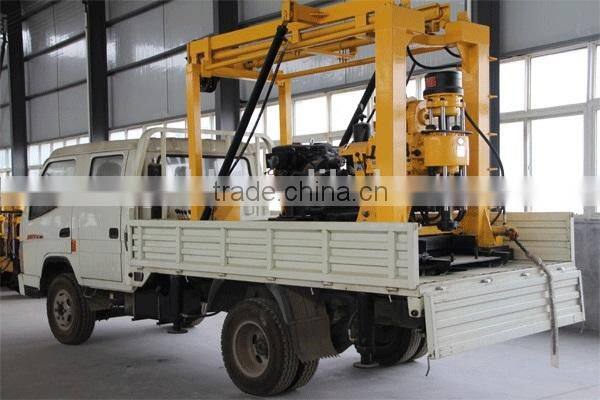

Water Well Truck Mounted Drilling Rig For Hydraulic Feed
XYC-200GT truck mounted drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees,subgrade grouting hole,drilling and direct grouting, civil well earth temperature central air-conditioner,etc.
SPECIFICATION
Item | Number | ||
Drilling method | Rotary | ||
Drilling depth | 200meter | ||
Drilling hole diameter | 75mm-300mm | ||
Power | 15 KW 22Hp | ||
Rig working outside size | Length | 5995mm | |
Width | 2060mm | ||
Height | 7500mm | ||
Rig weight | 1500kg | ||
Drilling kelly | 53/59*4 meter | ||
Drilling rod | 50mm | ||
Drilling bit | 75mm-300mm | ||
Spindle | 64,128,287,557 | ||
Hoist | Hoist reel | 140mm | |
Single lifting speed | 0.12,0.22,0.49,0.95 | ||
Single lifting force | 24KN | ||
Wireline capacity | 35 meters | ||
Wireline size | 13mm | ||
Mast | Loading capacity | 5T | |
Mast height | 6m | ||
Mast leg | 160×120×6 | ||
Swivel | Max lifting force | 50KN | |
Equiped hoise diameter | 50mm | ||
Mud pump | Model | BW-160 | |
Displacement | 160L/min | ||
Working pressure | 1.3Mpa | ||
Reciprocate times | 165 times/min | ||
Truck | Model | OuLingZB1043LSDS | |
Motor mode/ power | LN4D27E3/66KW | ||
Seating capacity | 3+3 | ||
