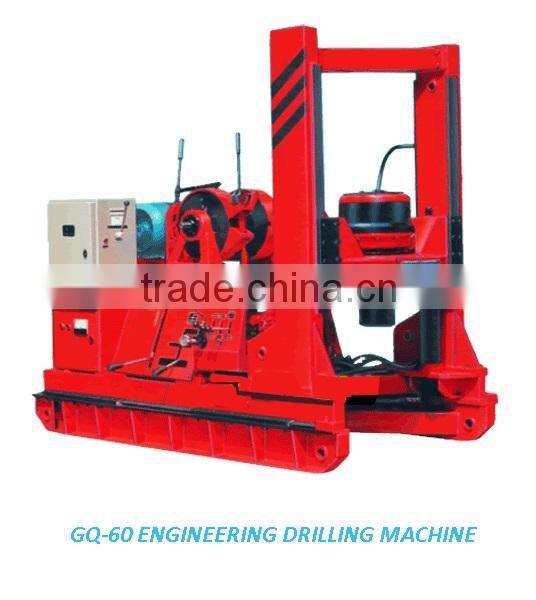

GQ-60 Engineerign Earth Drilling Rig For Sale
APPLICATIONS:
GQ-60 earth drilling rigs is newly designed and manufactured according to the requirement of foundation engineering, suitable for drilling medium mini-type grouting hole of building, skyscraper, dam and harbor and drilling water well.
FEATURES
1.Mast structure, top-drive head can move down or up along with, strength and rigidity
2.Large torque, compact structure, easy to move
3. Top-drive head is equipped with hydraulic chuck, drilling Efficiently.
4. Reasonable arrangement, easy to operate, smooth and quick.
Technical Specifications
hole dia (mm) |
600 |
|
drilling capacity (m) |
30 |
|
topdrive head speeds(r/min) |
forward |
40;118;218;300 |
reverse |
62 |
|
max torque (N.m) |
4500 |
|
topdrive head max pull force (KN) |
58.86 |
|
topdrive head max pulsh force (KN) |
44.15 |
|
top-drive head stroke (mm) |
700 |
|
hoist lift capacity with singlerope (KN) |
30 |
|
retracting stroke (mm) |
580 |
|
oil pump |
CB32 oil gear pump |
|
power unit |
electric motor for rotary |
Y180L-4 22KW |
electric motor for hoist |
Y160M-4 11KW |
|
innerdia if spindle (mm) |
2200×1200×2050 |
|
drill body weight(kg) |
2500 |
|
