Cooking oil expeller machinery for soya texturized protein machine line
- 400 Set / Sets per Month
- Shanghai Guangzhou Qingdao etc.
- T/T L/C D/P D/A Credit Card PayPal
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Palm Oil | Type: | Other, Cold & Hot Pressing Machine |
Automatic Grade: | Automatic | Production Capacity: | 400sets/month | Place of Origin: | Sichuan, China |
Brand Name: | Baochuan | Model Number: | YZYX10-4AP | Voltage: | 380V |
Power(W): | 7500-11000W | Dimension(L*W*H): | 1750*1400*1850mm | Weight: | 1020kg |
Certification: | ISO9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

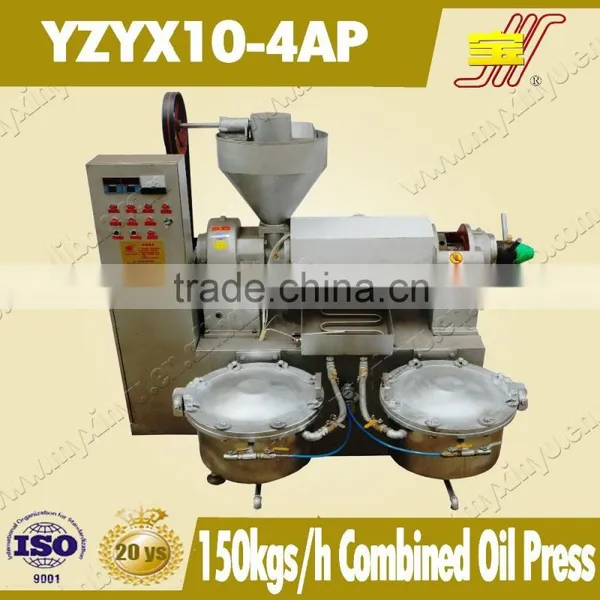

Features of BaochuanYZYXZ10-4AP air pressure filtering combined press
1. Easy to operate and maintain
2. High oil yield and very low residual oil rate
3. Barrel warming with automatic controlling function
4.Be quipped with air pressure filtering apparatus
5.air purification
6. Pressing very clean and pure oil
7. Rational structure and well-adapted
8. Stable and reliable operation with beautiful design
9. Low energy consumption and small machine wearing
10. suitable for medium-size and small food processing factories to use.
11. It can be used in pressing multiple oil crops, like rapeseed, cottonseed, soybean, peanut, flaxseed, sunflower/ polly seed and so on;
12. Either raw pressing or cooked pressing is suitable.
13. The quality of all our products conforms to the JB/T9793-1999 Agricultural Screw oil press technical condition of ministry of machinery industry of People’s Republic of China.
Features of YZYXZ10-4AP oil processing machine
The name of Oil crops | Day processing capacity (t/24h) | 1 hour processing capacity (kg/h) | Dry cake residual oil rate ( %) |
rapeseed | ≥3.5 | 146kg | ≤8.0 |
cottonseed | ≥3.5 | 146kg | ≤7.5 |
soybean | ≥3.5 | 146kg | ≤7.0 |
peanut | ≥3.5 | 146kg | ≤8.0 |
(Hot pressing way)
Notes: 1. It is the normal phenomenon that actual results are different with the parameters in the above table for the reasons of different varieties, quality and oil length of oil plants and operating conditions in local areas;
2.the day processing capacity of the above means the first time oil volume with cooked pressing
3.If you choose the raw way, the second time oil volume is the half of the fist time and the like.
Main performance of YZYXZ10-4 series oil processing machine
Name of the product | Screw oil press |
Model | YZYXZ10-4AP |
Power(KW) | 11 |
speed of main-shaft(r/min) | 26~36 |
measurement | 1750*1400*1850mm |
Weight | 1020kg |
1. It can be used in pressing multiple oil crops, like rapeseed, cottonseed, soybean, peanut, flaxseed, sunflower/ polly seed and so on;
2. Either cold or hot pressing is suitable. .
