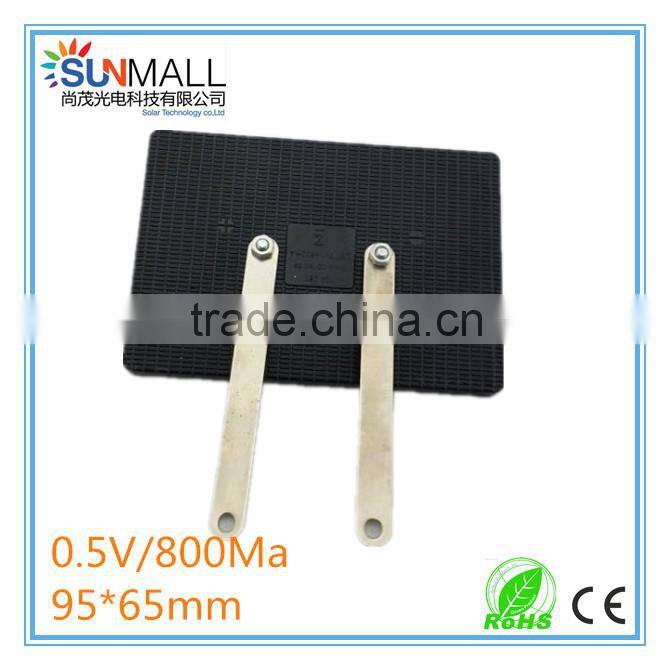

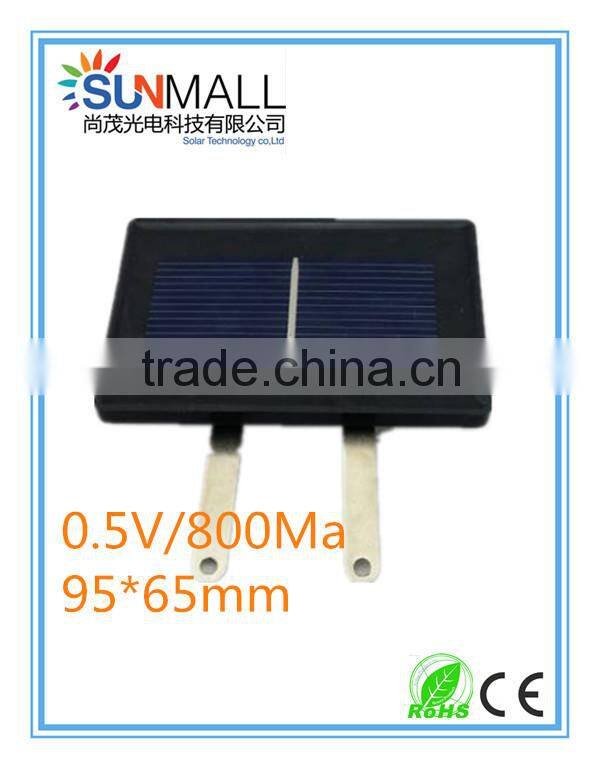

New Design for Solar Panel with Iron Plate

Specifications

New Design for Solar Panel with Iron Plate
-Long Service Life
-High Efficiency Solar Cells
-RoHS/CE
-Customized Size





Product Type:	Epoxy Solar Panel
Model No.:	SM05800
Product Construction:	Epoxy Resin +   Cell + PCB
Maximum Output:	0.5V*800mA=0.4W
Tolerance:	±3%
Electrical Specification (under standard test condition)
Maximum Output Power (Wmp)	0.4W
Max Working Voltage (Vmp)	0.5V
Max Charging Current (Imp)	800mA
Open Circuit Voltage (Voc)	0.6V
Short Circuit Current (Isc)	801mA
Cell efficiency(η):	16.5%
Materials
Solar cell type:	Polycrystalline or Monocrystal
PCB	FR-4
PCB thickness(mm)	1.0mm  1.2mm   1.5mm
PCB color	Black
PCB size(mm)	95*65mm
Product thickness:	2.6-2.8mm
Barline:	Black tape or none
Physical characteristics
Appearance:	Transparent and good polish, without distortion and loss
Lifetime:	1-3 years
Warning:
1.The mini solar panel can not be placed near to strong corrosive   substance
2.Avoid scraping by something hard when using
3.Cannot bend during delivery and installation
Using and Storing Condition
Storing temperature	20°C ~ 60°C
Working temperature	-20°C ~ 60°C



 Epoxy solar panel structure



It is a traditional type small solar panel called epoxy resin encapsulated solar panel, which is sticked together by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy resin coated panel have three layers,

1. Epoxy Resin AB Glue

2. Solar Cells

3. PCB Board



Features

1): Epoxy resin solar panel is made of monocrystalline or polycrystalline silicon. The encapsulation material are made of Epoxy Resin. Characterized by anti-humidity, insulation, excellent transparence and anti-aging, as well as smoothness, no bubble and neat apperance. Hard appearance; long-time life, high-performance to week light; widely used in lamp series, no power source sector.

2): Epoxy resin solar panels are easily to install; friendly environmental. High efficiency solar cells, Non-stick protective film.

3):Epoxy resin solar panels can be widely used in solar lawn lamps, solar toys, solar chargers and solar signal lights.



Some Epoxy Resin Solar Panel Parameter for you reference below:

(We can customize carious styles and specifications of epoxy encapsulated solar panels according to your requirements, here enclosed some our available specificaton sheet for you reference.)





Polycrystalline Silicon









Monocrystalline Silicon

Epoxy Resin Solar Panel Manufacturing Process:



Cut—Assemble—Test—Epoxy Resin—Vacuumize—Bake—Inspect—Coating





How to choose mini solar panels:

This table shows the solar system configuration relationship between storage batteries and mini solar panels.

DC Storage Battery	Mini Solar Panel
1.2V	2V ~ 2.5V
2.4V	3.5V ~ 4V
3.6V	5V ~ 6V
3.7V	5.5V-6V
4V	6-7V
4.8V	7-8V
6V	8V ~ 9V
12V	16V ~ 18V
