Home > Products > Hose Clamp > 316 stainless steel worm gear hose clamps
316 stainless steel worm gear hose clamps
- 800000 Piece / Pieces per Month
- shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Tello stainless steel | |
| Model Number | 316 | Usage | Glass Clamp | |
| Material | Stainless Steel | Structure | T Clamp | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
316 stainless steel worm gear hose clamps1.Grade:201,304,316,316L.etc
2.Band width:12,14mm
3.Size:65*89mm.etc
3.ISO,SGS
316 stainless steel worm gear hose clamps
| KHxx | KHxxSS | KHFxxSS | KHLxxSS |
Material for Band | AISI 200 Series SS | AISI 200 Series SS | AISI 300 Series SS | AISI 316 SS |
Material for Housing | AISI 200 Series SS | AISI 200 Series SS | AISI 300 Series SS | AISI 316 SS |
corrosion resistance | ordinary | good | better | Best |
Rated Ultimate Torque | 50in.lbs. min.(5.6Nm) | 60in.lbs. min.(6.8Nm) | 60in.lbs. min.(6.8Nm) | 60in.lbs. min.(6.8Nm) |
Recommended Installation Torque | 30-40in.lbs.(3.4-4.5Nm) | 35-45in.lbs.(4.0-5.1Nm) | 35-45in.lbs.(4.0-5.1Nm) | 35-45in.lbs.(4.0-5.1Nm) |
Clamp Series | "A" Diameter Range | |||||||
SAE Size | KHxx | KHxxSS | KHFxxSS | KHLxxSS | Millimeters | Inches | ||
Min. | Max. | Min. | Max. | |||||
8 | EH8 | EH8SS | EHF8SS | EHL8SS | 11 | 23 | 7/16 | 29/32 |
10 | EH10 | EH10SS | EHF10SS | EHL10SS | 14 | 27 | 9/16 | 1-1/16 |
12 | EH12 | EH12SS | EHF12SS | EHL12SS | 18 | 32 | 11/16 | 1-1/4 |
16 | EH16 | EH16SS | EHF16SS | EHL16SS | 19 | 38 | 3/4 | 1-1/2 |
20 | EH20 | EH20SS | EHF20SS | EHL20SS | 21 | 44 | 13/16 | 1-3/4 |
24 | EH24 | EH24SS | EHF24SS | EHL24SS | 27 | 51 | 1-1/16 | 2 |
28 | EH28 | EH28SS | EHF28SS | EHL28SS | 33 | 57 | 1-5/16 | 2-1/4 |
32 | EH32 | EH32SS | EHF32SS | EHL32SS | 40 | 64 | 1-9/16 | 2-1/2 |
36 | EH36 | EH36SS | EHF36SS | EHL36SS | 46 | 70 | 1-13/16 | 2-3/4 |
40 | EH40 | EH40SS | EHF40SS | EHL40SS | 52 | 76 | 2-1/16 | 3 |
44 | EH44 | EH44SS | EHF44SS | EHL44SS | 59 | 83 | 2-5/16 | 3-1/4 |
48 | EH48 | EH48SS | EHF48SS | EHL48SS | 65 | 89 | 2-9/16 | 3-1/2 |
stainless steel hose clamps
Type:
1)America style hose clamp(12mm,12.7mm,14mm)
2)stainless steel hose clamp with handle
3)heavy duty stainless steel hose clamp/strong stainless steel hose clamp
4)quick/fast realsed stainless steel hose clamp
5)double wire hose clamp
6)two bolt hose clamp
OEM service available
Completely made of stainless steel. It is the most powerful hose clamp within the product range.
Material:201
304 0Cr18Ni9 304L 00Cr19Ni10
321 0Cr18Ni9Ti 316 0Cr17Ni12Mo2
316L 00Cr17Ni14Mo2 310S 0Cr25Ni20

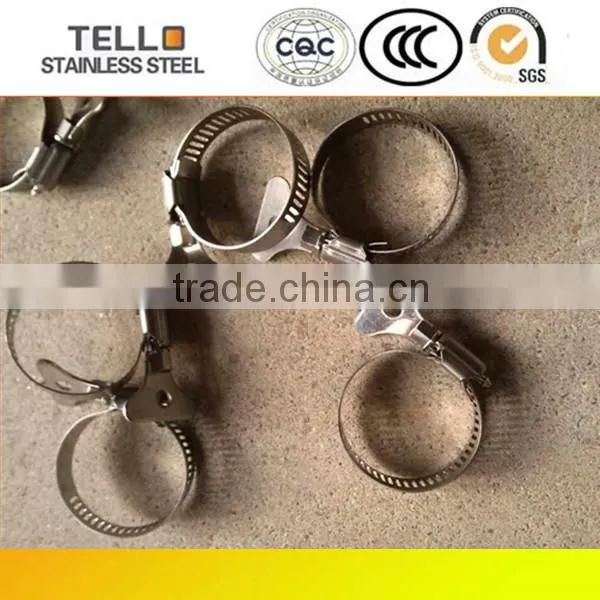

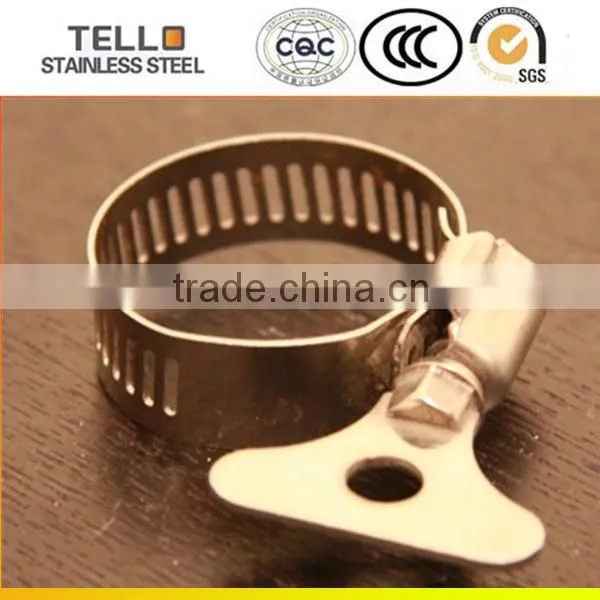

Samples display:

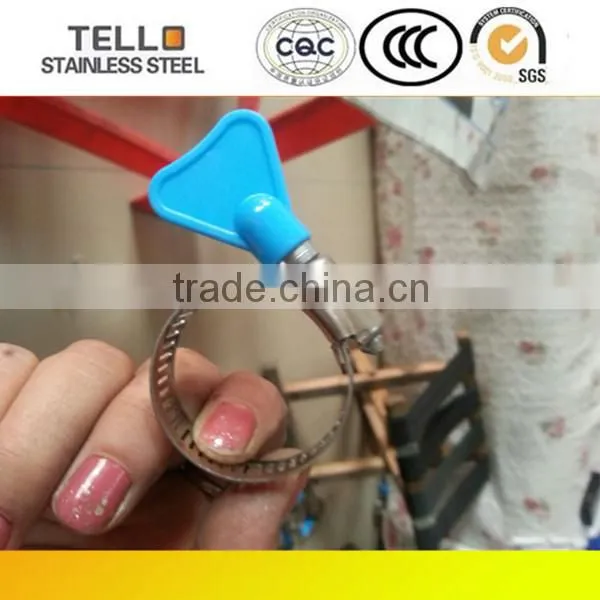

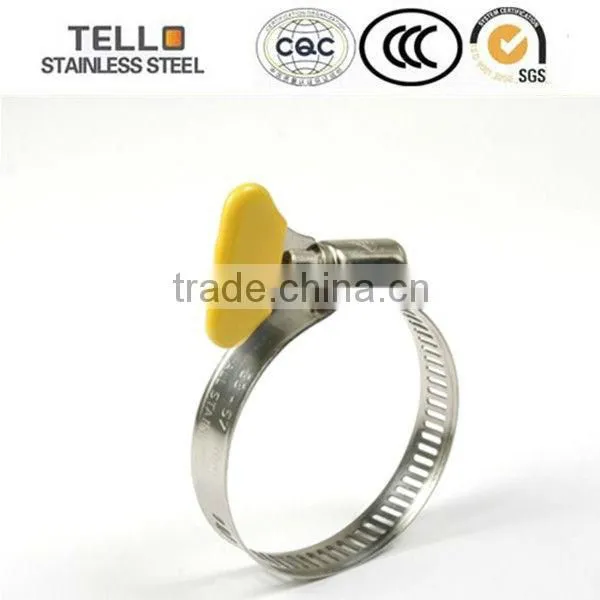

Hose clamp with plastic handle:
Factory show:
Work processing:

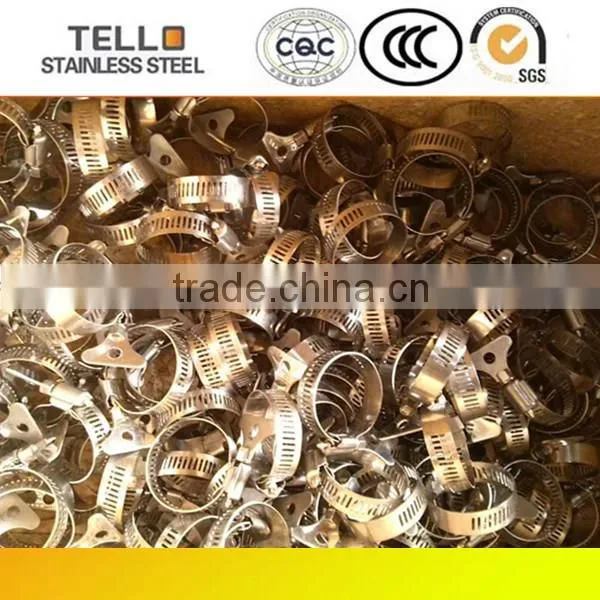

Ready for delivery :
The other type clamps we make include: Quick release hose clamp,German type hose clamp,Double wire hose clamp,T bolt hose clamp,Rubber band clamp,Heavy duty hose clamp.etc
