Help CenterGermany Style Hose Clip
Related Products
Specifications
German style hose clip1.Grade:201,304,316,316L...
2.Band width:8mm
3.ISO,SGS
4.OEM service available
German style hose clip
|
KHxx |
KHxxSS |
KHFxxSS |
KHLxxSS |
Material for Band |
AISI 200 Series SS |
AISI 200 Series SS |
AISI 300 Series SS |
AISI 316 SS |
Material for Housing |
AISI 200 Series SS |
AISI 200 Series SS |
AISI 300 Series SS |
AISI 316 SS |
corrosion resistance |
ordinary |
good |
better |
Best |
Rated Ultimate Torque |
50in.lbs. min.(5.6Nm) |
60in.lbs. min.(6.8Nm) |
60in.lbs. min.(6.8Nm) |
60in.lbs. min.(6.8Nm) |
Recommended Installation Torque |
30-40in.lbs.(3.4-4.5Nm) |
35-45in.lbs.(4.0-5.1Nm) |
35-45in.lbs.(4.0-5.1Nm) |
35-45in.lbs.(4.0-5.1Nm) |
Clamp Series |
"A" Diameter Range |
|||||||
SAE Size |
KHxx |
KHxxSS |
KHFxxSS |
KHLxxSS |
Millimeters |
Inches |
||
Min. |
Max. |
Min. |
Max. |
|||||
8 |
EH8 |
EH8SS |
EHF8SS |
EHL8SS |
11 |
23 |
7/16 |
29/32 |
10 |
EH10 |
EH10SS |
EHF10SS |
EHL10SS |
14 |
27 |
9/16 |
1-1/16 |
12 |
EH12 |
EH12SS |
EHF12SS |
EHL12SS |
18 |
32 |
11/16 |
1-1/4 |
16 |
EH16 |
EH16SS |
EHF16SS |
EHL16SS |
19 |
38 |
3/4 |
1-1/2 |
20 |
EH20 |
EH20SS |
EHF20SS |
EHL20SS |
21 |
44 |
13/16 |
1-3/4 |
24 |
EH24 |
EH24SS |
EHF24SS |
EHL24SS |
27 |
51 |
1-1/16 |
2 |
28 |
EH28 |
EH28SS |
EHF28SS |
EHL28SS |
33 |
57 |
1-5/16 |
2-1/4 |
32 |
EH32 |
EH32SS |
EHF32SS |
EHL32SS |
40 |
64 |
1-9/16 |
2-1/2 |
36 |
EH36 |
EH36SS |
EHF36SS |
EHL36SS |
46 |
70 |
1-13/16 |
2-3/4 |
40 |
EH40 |
EH40SS |
EHF40SS |
EHL40SS |
52 |
76 |
2-1/16 |
3 |
44 |
EH44 |
EH44SS |
EHF44SS |
EHL44SS |
59 |
83 |
2-5/16 |
3-1/4 |
48 |
EH48 |
EH48SS |
EHF48SS |
EHL48SS |
65 |
89 |
2-9/16 |
3-1/2 |
hose clip
Type:
1)America style hose clip(12mm,12.7mm,14mm)
2)stainless steel hose clip with handle
3)heavy duty stainless steel hose clip/strong stainless steel hose clip
4)quick/fast realsed stainless steel hose clip
5)double wire hose clip
6)two bolt hose clip
OEM service available
Completely made of stainless steel. It is the most powerful hose clip within the product range.
Material:201
304 0Cr18Ni9 304L 00Cr19Ni10
321 0Cr18Ni9Ti 316 0Cr17Ni12Mo2
316L 00Cr17Ni14Mo2 310S 0Cr25Ni20
phone number:86-25-66927689
My pleasure to solve your problem.

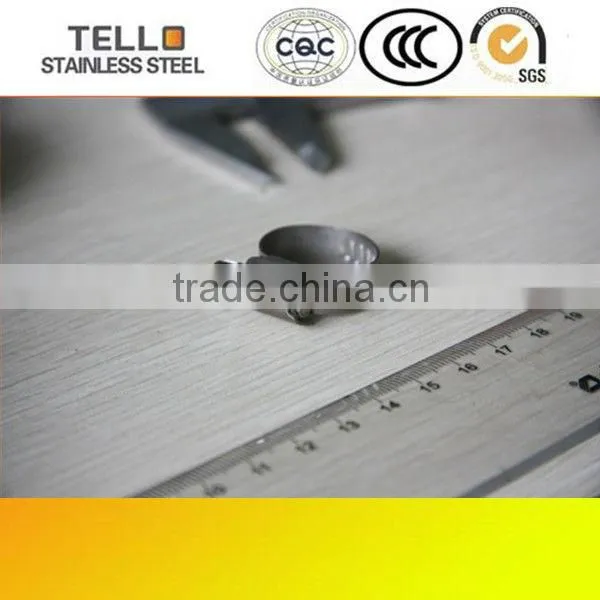

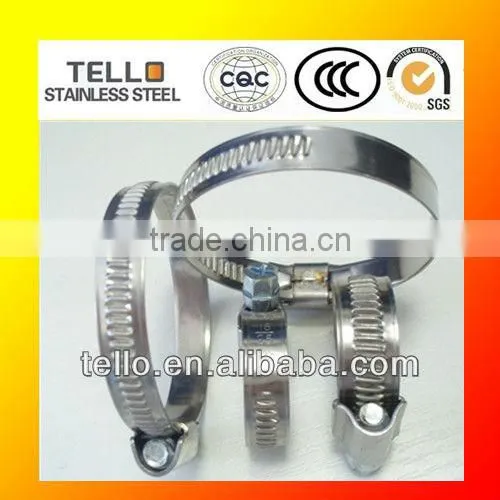

Samples display:

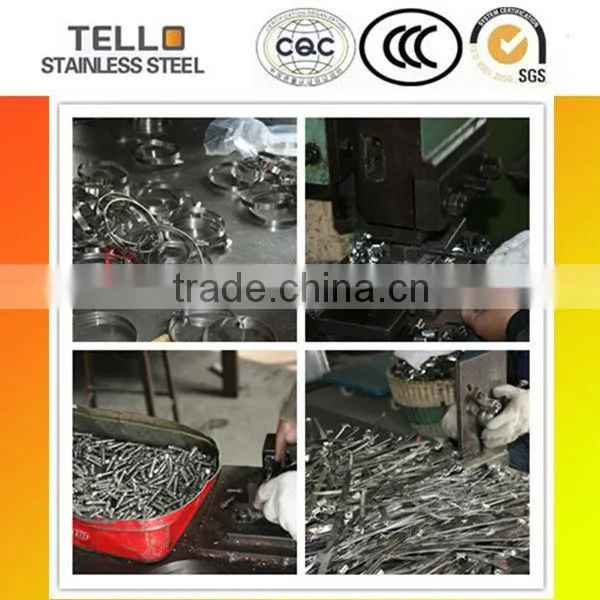

Factory show:
Work processing:
Ready for delivery :
