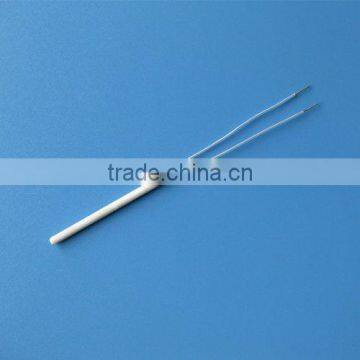

Soldering--Heater

Specifications

Soldering Heater Usual Specification:

Dimension: Φ3.8*60mm

Voltage: 110V / 220V

Resistance: 160~120Ω / 400±10%Ω

Dielectric sttength: 3750V, 5s, Leakage current ≤ 0.5mA

Flexural strength: ≥300Mpa

We provide standard products in different type according to use of customers' requirement.

Soldering heater is used for high precision soldering irons because moderate temperature distribution can be obtained by the heater design, small size but high power,quick heat up rater, high insulation performance, and hig reliability, they are used for very accurate soldering work.

Soldering heater's  advantage is as following:

1. Fast speed of heating, high rate of heat utilization.

2. Custom designed temperature distribution available

3. Resistance of high temperature and high insulation rate.

4. High resistance of high temperature creep.

5. Superior chemical resistance.

6. Excellent energy saving, safe and no electric noise, long lifetime.

7. High levels of insulation allow direct contact with water, kerosene and metal.

Property Advantage:

1. Superior Thermal Properties. Heat rapidly. High power density, the most of that is 30 W/cm2.

2. R-T characteristics. It has the characteristic of positive temperature coefficient, and can test and control the temperature of heating element make use of the temperature of characteristics.

3. High reliability Superior electric strenghth and volume resistivity. So may contact with metal and water directly. Superior chemical resistance. Low ageing and long life.

4. Environmental Qualities No electric noise Energy-saving No harmful element.
