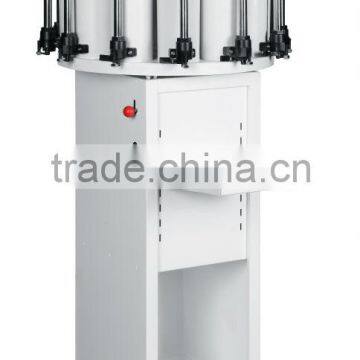

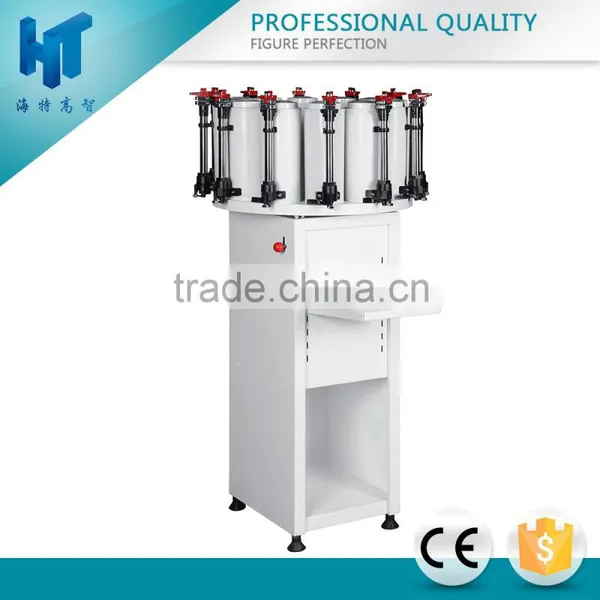

Manual Colorants Paint Tinting Machine Paint Dispenser HT-20B1

Manual Paint Dispenser With White Plastic Canisters
Model: HT-20B1


1. Description:
This machine is widely used in the paint shops for the wall paint making. It is used to measuring and discharging the colorants.

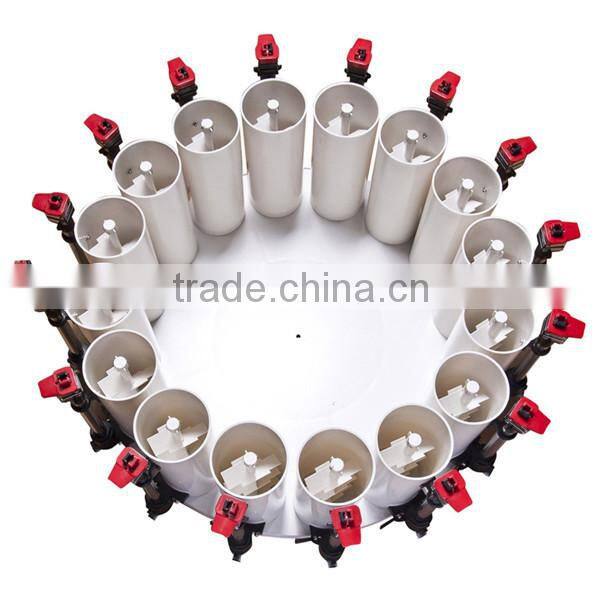

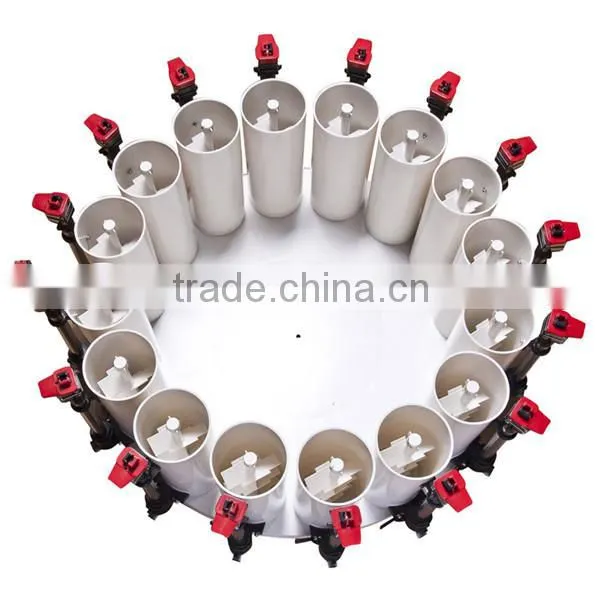

It has 12, 14, 16, 20 and 24PC PP plastic canisters, suitable for water or oil type colorants.

You can decide what colors of the machine case, we will paint the case in that color you like.

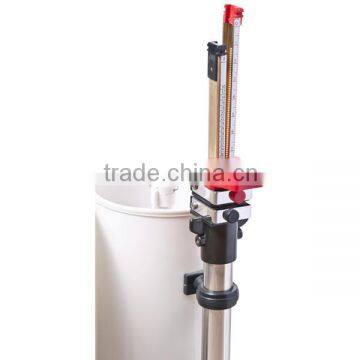

My company produces the adjusting color machine accuracy as 1/192Y, namely the Black Surveyor's Rod one black space is equal to the Red Surveyor's Rod for samll red spaces.

That means 1 Black Space= (1/48) & 1 Red Space=(1/192)Y

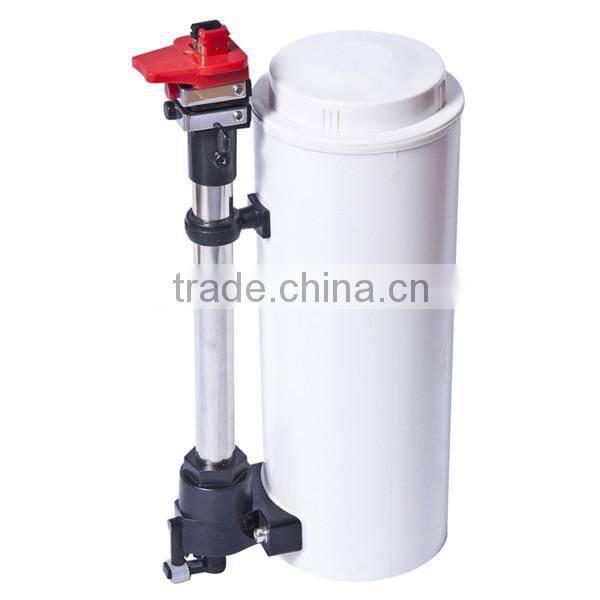

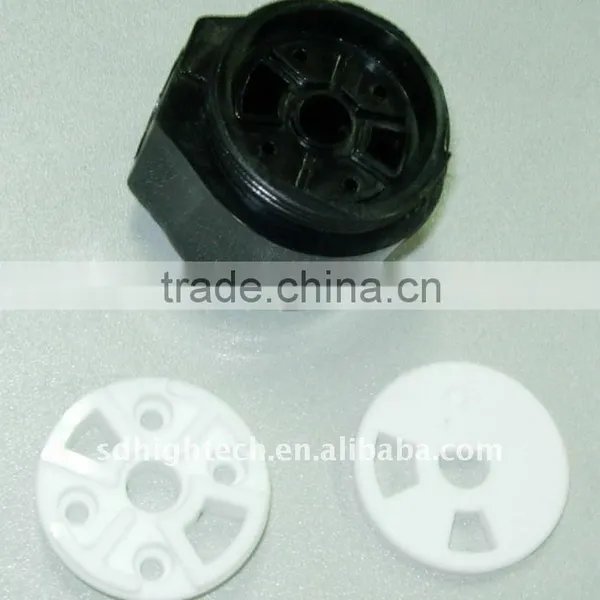

The pump body can be disassembled easily and quickly, for easy maintance and cleaning.

Pouring respectively the different colors into each bucket, then covering th ebucket.

Mixing about seven minutes, then proceed to adjust the color operation after shutting down roughly five minutes.

After that, you can adjust the color accordance with what kind of color you wanted.


PS:
For this kind of machine, the canisters are the white color. But we can offer you the different material canisters to meet your requirements.


2. Features:

(1) Application: water or oil colorant ( for 1-24 kinds of  Color)

(2) Drum Capacity: 2.3L/ 1.75L

(3) Maximal Discharge Rate: 2 fluid ounce

(4) Accuracy: 1/192 and 1/384 fluid ounce is optional

(5) Working Power: 220V;  Frequency: 50/60Hz

(6) Power Supply: 40W

(7) Net Weight: 80Kg

(8) Gross Weight: 120Kg

(9) Case Size: 1390(H) X 706(W) X 706(D)mm (12 Canister)

                     1390(H) X 855(W) X 855(D)mm (16 Canister)

                     1390(H) X 855((H) X 855(D)mm (20&24 Canister)

3. After Sales Service:

      The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller's engineer.

.
