High-tech Manual Paint Dispenser1. Automatic dispenser for paint tinting
2. High precision
3. Powerful tinting software

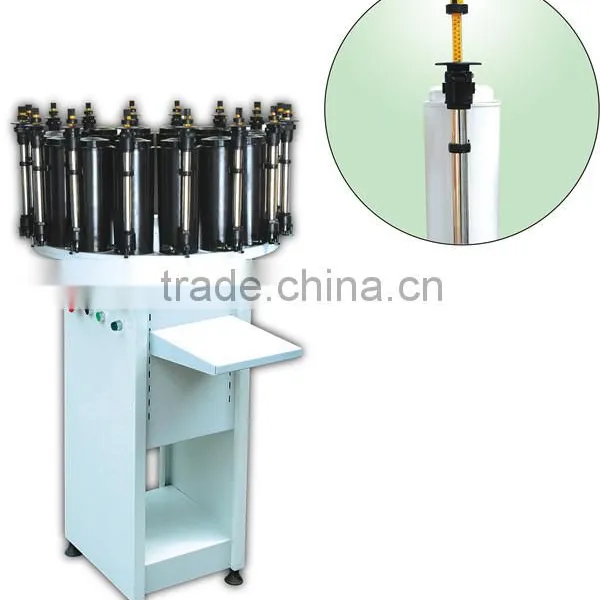

High-tech Manual Paint Dispenser with high precision and repeatability
Model: HT-20
HT-20 is a high-precision and economical dispenser which is suitable to paint retailer.
Double pump, double gauge and inching switch ensure the stability and repeatability.
Automatic blending of mixing leaf ensures equal distribution of colorant and has no deposition.
To meet the different requirement , the machine could equip with platform that is moved up and down.
My company produces the adjusting color machine accuracy as 1/192Y, namely the Black Surveyor's Rod one black space is equal to the Red Surveyor's Rod for samll red spaces.
That means 1 Black Space= (1/48) & 1 Red Space=(1/192)Y
The pump body can be disassembled easily and quickly, for easy maintance and cleaning.
Pouring respectively the different colors into each bucket, then covering th ebucket.
Mixing about seven minutes, then proceed to adjust the color operation after shutting down roughly five minutes.
After that, you can adjust the color accordance with what kind of color you wanted.
Technical Data:
(1) Application: water or oil colorant ( for 1-24 kinds of Color)
(2) Drum Capacity: 2.3L/ 1.75L
(3) Maximal Discharge Rate: 2 fluid ounce
(4) Accuracy: 1/192 and 1/384 fluid ounce is optional
(5) Working Power: 220V frequency: 50/60Hz
(6) Power Supply: 40W
(7) Net Weight: 80Kg
(8) Gross Weight: 120Kg
(9) Case Size: 1390(H) X 706(W) X 706(D)mm (12 Canister)
1390(H) X 855(W) X 855(D)mm (16 Canister)
1390(H) X 855((H) X 855(D)mm (20&24 Canister)
