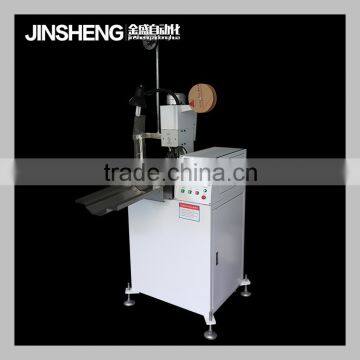

2016 update JS-6001 auto one end semi automatic crimping machine terminal press equipment
- 5 Set / Sets per Month
- ZhongShan
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2016 update JS-6001 auto one end round cable crimping machine terminal press equipment
-
2016 update JS-6001 auto one end rj45 cable machines terminal press equipment
-
2016 update JS-6001 auto one end ring wave generator terminal press equipment
-
2016 update JS-6001 auto one end pull tester terminal press equipment
-
2016 update JS-6001 auto one end power cable machine manufacturing terminal press equipment
-
2016 update JS-6001 auto one end plug temperature rising test machine terminal press equipment
Product Details
Place of Origin | Guangdong, China | Brand Name | JINSHENG | |
Model Number | JS-6001 | Usage | Crimping |
Product Description
2016 update JS-6001 auto one end semi automatic crimping machine terminal press equipment
Machine Specification
Cutting length: 35 mm-9999mm
Cutting accurary: +0.1mm
Wire guage: AWG16-28#
Stripping length: 0.1mm-30mm
Compressed air: 0.5Mpa
Pressure : 19600N
Measurement: 600*500*1790(mm)
Weight: 130KG
Power supply: AC220/200V
Capacity7000PCS/H shortest wire (100mm);
Features:
Adopt PLC digital control system, can detective the air pressure working condition. Multi-function choice like wire cutting, full stripping, semi strip and terminal crimping on one end of the wire. Can be automatic located the terminal crimping angle, cutting and stripping length and the blade cutting depth.
1. The terminal crimping machine Adopt AWG16#~AWG28# cable feeding, stripping and crimping are finished with one action.
2. Feeding system of the terminal crimping machine: Overall technical support, Level send structure, super silenced. Deeding exactly. Exactitude transmission. Small clearance, smart action, long service life, work stably.
3.PLC control system: Computer control without people. Photo graphic user interface and touch screen,It can set all kinds of parameter quickly. Chinese or English display.
4. Adopts the mute electronic clutch terminal crimping machine , Japan OTP (Option)exactitude mould. SKD material to make the blade working more stably have longer service life.
5. Detect system: Adopt the fiber technical, check each step of work to make product good quality.
Zhongshan Jinsheng Automation Machinery Co.,Ltd.was eatabished in 1997,has gone through 14years, our company for business integrity,quality products,advanced technology and friendly service,won the majority of customer recognition.And we have the international ISO9001 and 14001 certified environmental management certification.Our products have been sold to dozens of areas as well as countries all around the world.for example,Southeast Asia,Mid-east,Africa,USA,Europe,Russia,Brazil and so on .
We Provide
- Best products and factory price.
- On-time delivery and the shortest delivery time.
- 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
Service
- QC: All products will be checked before delivery.
- Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
- Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
- Operation Guidance: If you have any problem with operation, please feel free to contact us.
If you want to know more products information.please feel free to contact with me!24 Hour on service!
