Video Door Phone With Remote Door Release

Name: Video Door Phone With Remote Door Release
Brand: XG-Building
SKU: 128776267
Availability: InStock

US$ 75 - 100 MOQ: 50 Sets

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

XG-Building

Model Number:

TOP2003DVC-3B+FM03MBVC-A9

Foshan Xingguang Intelligent Building Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Foshan / Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name XG-Building

Model Number TOP2003DVC-3B+FM03MBVC-A9

Camera Other, CMOS/CCD COLOR

Power Other, DC15V--DC18V

Specifications

1, 18 Years Professional Manufacturer
2, Exporting from 2005
3, Strong R/D, Marketing&Sales Teams
4, ISO/CE/FCC Certificated

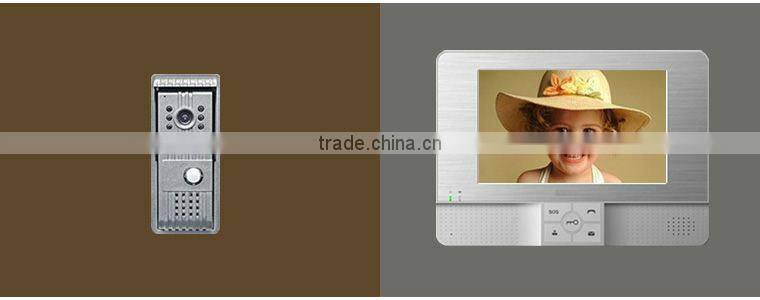

This video door phone system can directly call and dual talk by outdoor station and indoor monitor
The indoor monitor can real time monitor outdoor station
This video door phone kits can release electric door lock for both “NO” and “NC” type
Each system can be compatible with maximum 10 monitors and 4 outdoor stations via multi-door controller
This video door phone is easy for installation, operation and maintenance
The system is with low power consumption and low distortion for audio and video
The villa video door phone is widely applied to villa, single apartment, bank, office, factory, warehouse

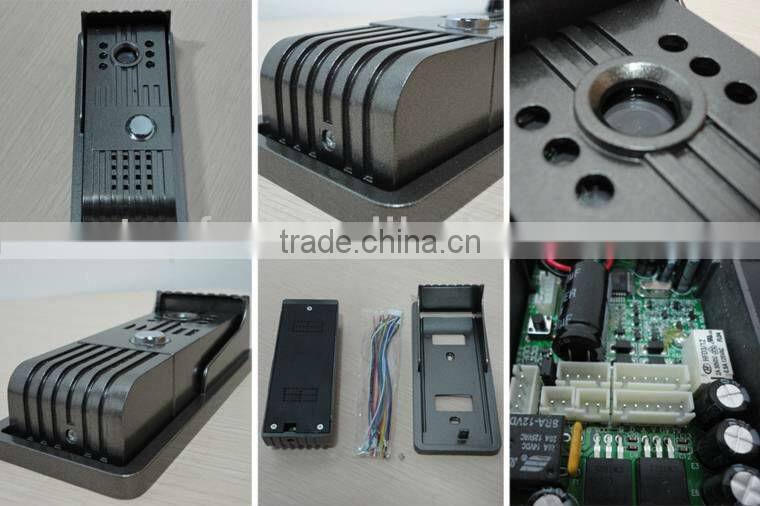

Model Number		TOP2003DVC-3B
Camera	Image Sensor	1/3” CMOS
	Horizontal Resolution	420TVL
	Active Pixels	652(h) x 582(v)
	Signal System	PAL / NTSC
	Lowest Illumination	0.02Lux (with 6 LEDs on)
	Lens	Fixed 3.6mm
Housing Materials		Al-alloyed die-casting case
Manufacturing Technique		SMT and Wave Soldering
Working Voltage		DC15V-DC18V
Power Consumption		Standby≤150mA \| Working≤500mA
Working Temperature		-30°c~+50°c
Working Humidity		45%~95%
Interfaces		Monitor / Electric Lock / Power / Exit Button
Appearance Size		180 x 80 x 52mm
Mounting Way		Surface Hung

The indoor monitor is with 7-inch digital TFT LCD screen
The indoor monitor is with ultra-thin body and wire-drawing Al panel, and visual menu setting
Fashionable design, Simple mounting, Easy operation, Hands-free talking

Model Number		FM03MBVC-A9(7”)
Screen	Screen	7-inch Color TFT LCD
	Resolution	800 x 480 Pixels
	Display Size	154.08(H) x 85.92(V)mm
	Aspect Ratio	16(H) : 9(V)
	Response Time	5ms
	View Angle	178 Degree
	Brightness	500cd/m²
Housing Materials		ABS Plastic with wire-drawing Al panel
Manufacturing Technique		SMT and Wave Soldering
Working Voltage		DC15V-DC18V
Power Consumption		Standby≤300mA \| Working≤450mA
Frequency Response		300~3400Hz
Working Temperature		-13°c~+57°c
Working Humidity		45%~95%
Interfaces		Door Station / Power Adapter
Mounting Way		Wall Hung
Size		225 x 160 x 20mm

1 Outdoor Station, 1 Indoor Monitor, 1 Adapter and Accessories are packed in a color box, 6 color boxes per carton
The carton size is 48 x 41 x 33cm
Gross weight of a carton (6pcs) is around 15KGs
