Video Door Phone With Remote Door Release
US$ 200 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
XG-Building
Model Number:
TOP05SAVC-11Y+FM05MBVCF-18
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan / Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Design Video Door PhoneUS$ 200 - 2,000MOQ: 1 Set -
Cat5 Ethernet Cable Connection Door BellUS$ 200 - 2,000MOQ: 1 Set
-
Apartment Building Door BellUS$ 200 - 2,000MOQ: 1 Set
-
Video Door Phone Apartment Building SystemUS$ 200 - 2,000MOQ: 1 Set
-
Video Door Intercom SystemUS$ 200 - 2,000MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
XG-Building
Model Number
TOP05SAVC-11Y+FM05MBVCF-18
Camera
Other, CMOS/CCD COLOR
Power
Other, DC35V
Specifications

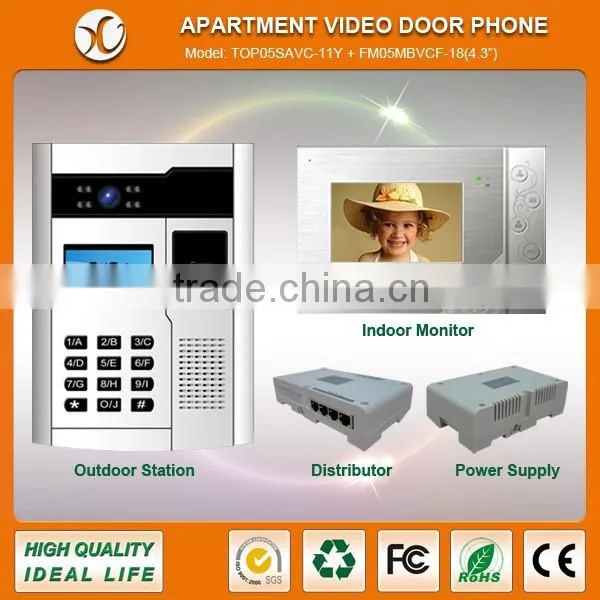

1, 17 years experience in door phones2, Video door phone for villa or apartments
3, Cat5 ethernet cable video door phone
- Call, dual talk, release electric lock and monitor outdoor station
- Door station with numeric keyboard can manage a large quantity of indoor monitors
- The video door phone system is with a wide variety of indoor monitors for selection

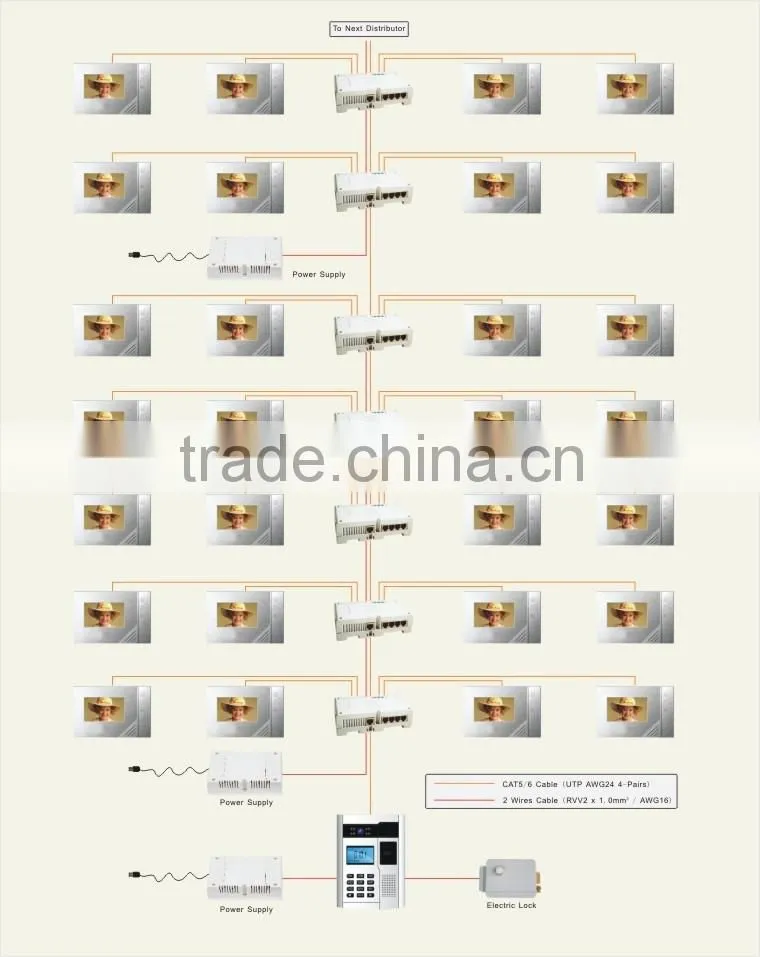

- Connection cables of the intercom system are cat5 ethernet cable and 2wires cable
- The apartment video door phones is easy for installation, operation and maintenance
- The system is with password and RFID card unlock, besides indoor monitor

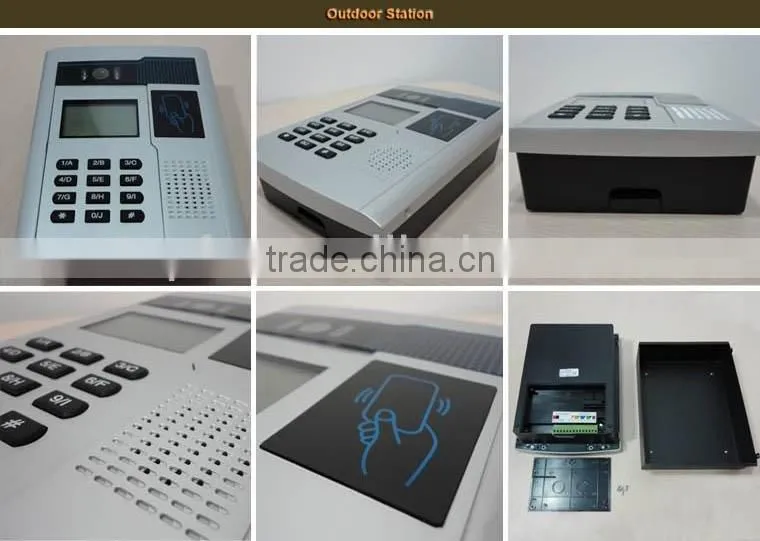

- This outdoor station is with die-casting Al-alloyed housing, sturdy and durable
- The model is with good night vision by 6 LEDs
- RFID card reader is built in the outdoor station for access control
| Model Number | TOP05SAVC-11Y | |
| Camera | Image Sensor | 1/3” CCD |
| Horizontal Resolution | 420TVL | |
| Active Pixels | 652(h) x 582(v) | |
| Signal System | PAL / NTSC | |
| Lowest Illumination | 0.02Lux (with 6 LEDs on) | |
| Lens | Fixed 3.6mm | |
| Housing Materials | Die-casting Al-alloyed | |
| Manufacturing Technique | SMT and Wave Soldering | |
| Working Voltage | DC35V | |
| Power Consumption | Standby≤150mA | Working≤500mA | |
| RFID Card Reader | Built in | |
| Cards Capacity | 50000pcs | |
| Working Temperature | -30°c~+50°c | |
| Working Humidity | 45%~95% | |
| Appearance Size | 256 x 180 x 62mm | |
| Embedded Sized | 230 x 168 x 55mm | |
- The indoor monitor is with 4.3-inch digital TFT LCD screen
- The indoor monitor is with ultra-thin body with wire-drawing Al panel
- Fashionable design, Simple mounting, Easy operation, Hands-free talking
| Model Number | FM05MBVCF-18(4.3”) | |
| Screen | Screen | 4.3-inch Color TFT LCD |
| Resolution | 480 x 272 Pixels | |
| Display Size | 95.04(H) x 53.86(V)mm | |
| Aspect Ratio | 16(H) : 9(V) | |
| Response Time | 5ms | |
| View Angle | 178 Degree | |
| Brightness | 500cd/m2 | |
| Housing Materials | ABS Plastic with wire-drawing Al panel | |
| Manufacturing Technique | SMT and Wave Soldering | |
| Working Supply | From Floor Distributor | |
| Power Consumption | Standby≤300mA | Working≤450mA | |
| Frequency Response | 300~3400Hz | |
| Working Temperature | -13°c~+57°c | |
| Working Humidity | 45%~95% | |
| Mounting Way | Wall Hung | |
| Size | 180 x 120 x 23mm | |
- The Distributor is with bus line interface and power supply interface
- The Distributor is with 4pcs of RJ45 terminal for maximum connecting 4 indoor monitors
- Input: AC100V--AC240V 50/60Hz
- Output: DC35V 1500mA
- Each power supply can afford 1 door station or 20 indoor monitors
We can provide neutral products and package.
We can print your own LOGO on product if order quantity is more than 200pcs per lot.
