Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > 1/2" N-Type Connector

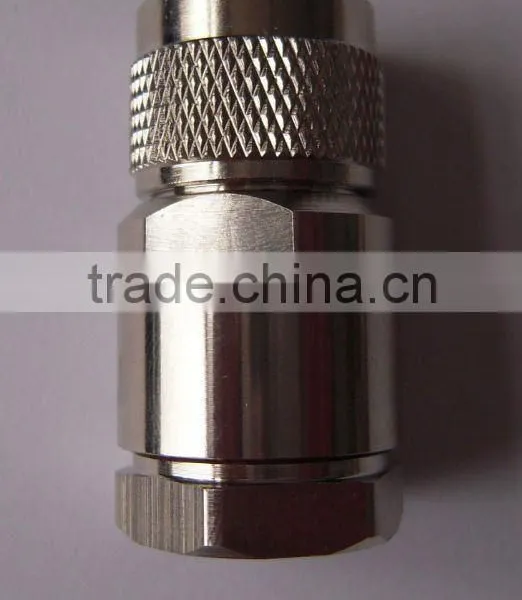

1/2" N-Type Connector
US$ 1 - 100
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Dton
Model Number:
1/2" N-Type
Type:
Other, N
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
Dton
Model Number
1/2" N-Type
Type
Other, N
Application
RF
Gender
Male
Specifications
IEC 169-4 standard1) Suitable for 1/2" cable
2)VSWR: less than 1.1
3)Insertion Loss: less than 0.05db
4)IPM3:less than -155
IEC 169-4 standard | ||||
| Temperature range | -55~+155 | Insulation resistance | ≥5000MΩ | |
| Characteristic impedancd | 50Ω | Dielectric Withstanding voltage | 1500V | |
| Contact resistance | Center conductor | ≤1mΩ | ||
| Frequency range | 0~11GHz | Outer conductor | ≤0.2mΩ | |
| VSWR | ≤1.30 | Durability | 500 Cycles | |
| Material And Plating | ||||
| Body | Brass , gold/nickel plated | |||
| Male center contacts | Brass , gold plated | |||
| center contacts | Beryllium copper or phosphor bronze , gold plated | |||
| Insulators | PTFE | |||
| Gaskets | Silicone rubber | |||
| Crimp ferrules | Copper alloy , nickel plated | |||
