Split Solar Water Heater

Split Solar Water Heater thumbnail-1
Split Solar Water Heater photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Contact Supplier Request Quote Chat Now
Haining Tonghua Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Evacuated Tube
Pressure Pressurized
Circulation Type Indirect / Closed Loop (Active)
Heating System Thermosyphon (Passive)
Connection Type Split
Certification CE
Place of Origin Zhejiang, China
Brand Name tonghua
Model Number TH-FXK

Specifications

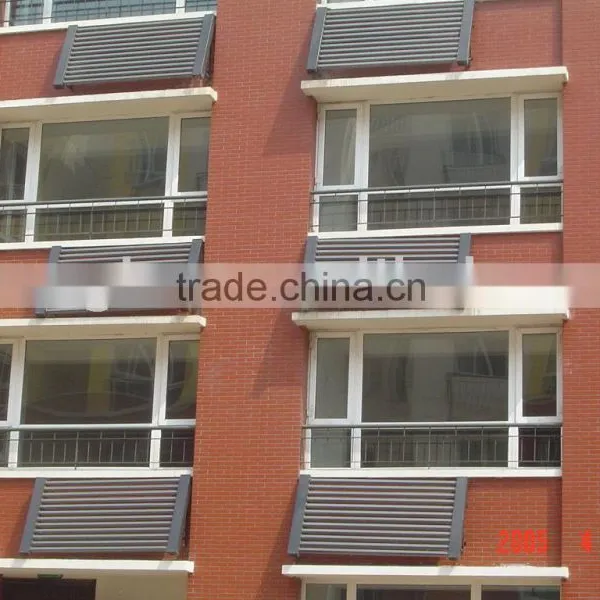

This split solar water heater is also called Balcony solar water heater

Split solar water heater is also separate and pressurized solar water heater.

Outstanding features:

1)      Collector separates with the storage tank. The tank can be put anywhere of the house. And the collector can be put on the balcony.

2)      Aluminum alloy mould material of high strength with airflow design

3)      It is furnished in good style; Module design, arbitrary combination, harmony with the building perfectly.

4) Pipeline is made of all red copper and conducted by heat transfer medium liquid.

5) With increased anode magnesium bar stick to prevent furring.



Working principle:

1) When the temperature of the heat collector reaches the set value, the controller shall start the circulation pump automatically.

2) The circulation pump makes heat-conducting liquid circulate automatically.

3) The heat-conducting liquid transfers heat to water by heat exchanger in the water tank.

4) In case the temperature of the water tank does not reach max, then start the auxiliary heating device.

5) In case the temperature of the circulation pump does not reach the set value, the circulation pump shall be shut automatically

6) Intelligent control and automatic operation. Tank is equipped with electric water heater setting, automatic temperature controller.

7) Anti-freeze: no water inside the tubes when it works. And the insulating layer uses polyurethane bulk bubble.

8) Multifunction: Bathing, washing, domestic heating

9) Workable at anytime and enjoyable

Product parameter table

Model NO.

Vacuum tube specification

Dia

Length

Qty.

(mm)

(mm)

(unit)

Tank volume

(L)

Collector Qty.

(pcs)

Size

(m2)

Total weight

(KG)

Total packing volume

(m3)

Loading Qty.

20GP

40GP

40HQ

(set)

(set)

(set)

TH-150-15

58

1800

15

150

1

2.1

80

0.75

34

72

90

TH-150-20

20

1

2.8

95

0.8

32

67

80

TH-200-20

20

200

1

2.8

146

0.95

27

60

75

TH-200-25

25

1

3.5

169

1.00

26

54

64

TH-300-30

30

300

1

4.2

161

1.3

20

43

54

TH-300-40

40

2

5.6

175

1.35

19

40

47
