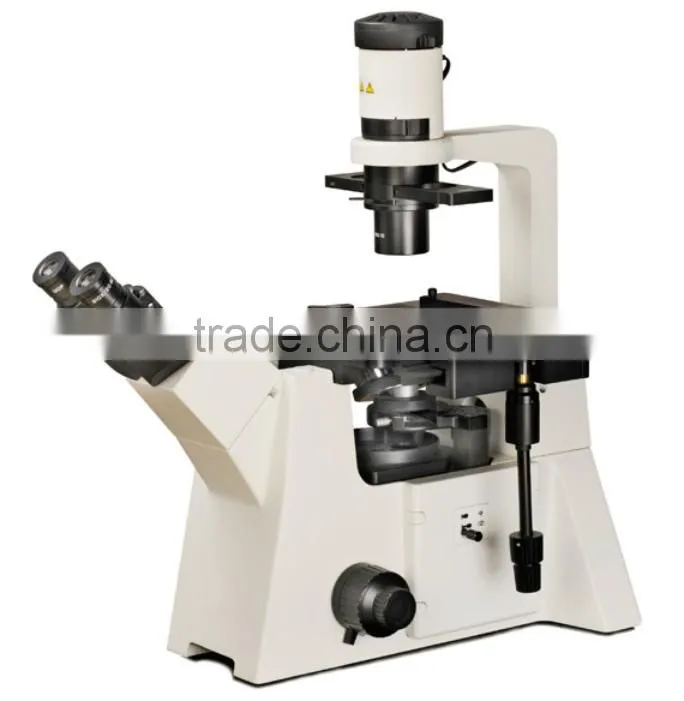

Best Design Microscope China Made Inverted Biological Microscope with High Quality
Specification:
*UCIS Infinity Independent Achromatic Optical System
*WF10x plan eyepieces, 20mm field of view, high eye point up to 21mm
*Seidentopf binocular viewing head; inclined45°
*52-75mm interpupillary distance settings
*±5 Diopter adjustment
*Quintuple nosepiece inward facing with positive click stops
*Infinity long work distance plan Achromatic 10x, 20x, 40x and Infinity long work distance phase-contrast 20x objectives
*Right hand controls, low position, fixed stage, 240mm x 260mm, movement range 135mm x 85mm
*N.A. 0.30 Abbe condenser with iris diaphragm, with phase-contrast slide, long work distance 72mm
*Coaxial coarse and fine focus mechanism with markings on fine focus knobs. Fine focus sensitivity 0.001mm
*6 volt 30 watt halogen illumination
*Dust cover, power cord
Configuration:
Order No. |
Specification |
DSZ5000X |
DSZ5000 |
Microscope Frame |
* |
MS1 |
Binocular Tube, Interpupillary distance 52-75mm,45°inclined,diopter adjustable |
* |
MS1A |
Binocular Tube, Interpupillary distance 48-75mm,45°inclined,diopter adjustable |
o |
E1020PA |
WF10X/20mm Plan Eyepiece, High eye-point up to 21mm |
** |
E1022PC |
WF10X/22mm Plan Eyepiece, High eye-point up to 21mm |
oo |
E1020RA |
WF10X/20mm Reticule Eyepiece, High eye-point up to 21mm |
o |
DZ3 |
Centering Telescope |
* |
E1613PB |
16X/13mm Eyepiece |
o |
WB-P4C |
4X Infinity Long WD Plan Objectives |
o |
WB-L10B |
10X Infinity Long WD Plan Objectives |
* |
WB-L20B |
20 X Infinity Long WD Plan Objectives |
* |
WB-L40B |
40X Infinity Long WD Plan Objectives |
* |
WB-L60B |
60 X Infinity Long WD Plan Objectives |
o |
WB-LPHp10B |
10X Infinity Plan Phase-Contrast Positive Objectives |
o |
WB-LPHp20B |
20X Infinity Plan Phase-Contrast Positive Objectives |
* |
WB-LPHp40B |
40X Infinity Plan Phase-Contrast Positive Objectives |
o |
WB-LPHn10B |
10X Infinity Plan Phase-Contrast Negative Objectives |
o |
WB-LPHn20B |
20X Infinity Plan Phase-Contrast Negative Objectives |
o |
WB-LPHn40B |
40X Infinity Plan Phase-Contrast Negative Objectives |
o |
ZT1 |
Fixed Stage, 240mmX260mm; movement range: 135mmx85mm; |
* |
ZT1-1000 |
Drop specimen holder(φ118) |
* |
1D-0022 |
Specimen holder(125X85) |
o |
1D-0021 |
Specimen holder(76X26, φ54) |
* |
ZT1A |
Mechanical Stage, 350mmx208mm; movement range: 50mmx50mm; |
o |
ZQ580A |
Quintuple Revolving Nosepiece |
* |
SGJ1A |
Ultra long WD Condenser |
* |
PCB-LPHA |
Phase-contrast Slide |
* |
SGJ1-3000 |
6V30W Halogen Lamp House |
* |
SGJ5-0023 |
Filter Holder |
* |
LA1-0011 |
Blue filter(φ34) |
* |
LU1-0011 |
Green filter(φ34) |
* |
LH1-0011 |
Yellow filter(φ34) |
* |
SX1 |
0.5X C Mount |
* |
SX5 |
0.25X C Mount |
o |
BZ-0022C |
6V30W Halogen Bulb |
* |
DYX1 |
6V30W Power Supply Unit |
* |
BZ-0023 |
250V/3.15A Φ5X20 Fuse |
*** |
“ * ” Mean Standard Configuration, “ o ” Mean Optional. | ||
Best Design Microscope China Made Inverted Biological Microscope with High Quality
Unique Advantage:
Equipped with UOP's UCIS universal infinity independent-achromatic optical system, chromatic aberrations and curvature of field are both ideally corrected over the field of view. And the UCIS objectives own higher NA's producing crisp, clear images with minimal flare.Benifit form UCIS infinity optics, DSZ5000X series provide a flexible upgrade path to accommodate various accessories to meet your applications for observations of light field, phase contrast, dark field and polarization. And the DSZ5000X series optics are perfect for both observations through the eyepiece as well as captureing images with a digital camera or a computer.
High-efficiency heat-sink-device of DSZ5000X series keeps the microscopes surface at lower temperature even after long time work.
One-piece construction Design From Arm to Base, Robust and Vibration Resistant.
Company Information:
Chongqing COIC Industrial Co., Ltd. was found in 2012, and located in Xiema Town Beibei District Cho
ngqing, south-west of China.
We are a professional enterprise specializing in OPTICAL MICROSCOPE R & D, production, sales, trading and spare parts services. There are the most advanced production lines, detection equipments, standard workshops and skilled workers in our company.
"High quality, Competitive price, Good after-sales service" is our biggest advantage.
Welcome to contact us at any moment, sincerely hope we can cooperate with you and your esteemed company!
Our Service:
1. Any inquires will be replied within 24 hours.
2. All of our products 100% inspection before shipment, we guarantee to use our products safely.
3. If there are some trouble when you use it, our technicians will help you to solve them during the working time.
4. Faster delivery. Sample order is in stock, and for bulk production 3-7 days usually. We cooperate with Fedex, DHL and UPS, you can receive your goods in 5-7 days.
F&Q:
1. What is your brand?
Q: Our own brand is “UOP”&"COIC", OEM is also acceptable.
2. Are you manufactory or Trade Company?
Q: We are manufacturer and we can export for you as well.
3. Can I have a sample order?
Q: Yes. Sample oreder is also welcome.
4. Can you print our logo or company name on our products or the packages?
Q: Sure. Your Logo can be printed on our products as your requirements, but you need to send us your logo certification and the certificate of authorization.
If you are interested in our " Best Design Microscope China Made Inverted Biological Microscope with High Quality " please feel free to contact us.
