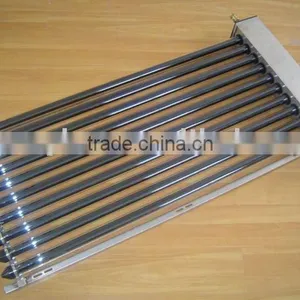

Water Heater Solar Collector, CE, Solar Keymark Certificate, Solar Water Heater, Heat Pipe Solar CollectorWater Heater Solar Collector
Solar Collector is combined by following parts.
1. Vacuum Tubes
2. Heat Pipes
3. Mainfolds (copper water flow channel and PU foam inside)
4. Frame
5. Silicon Rubber Stopple
6. Aluminum Finned Piece
7. Tube Hold
Characteristics:
1) The water is heated by the heat pipe rapidly.
2) Heat pipe has its special principle and function,
3) No water in the pipe. If one of the pipe is broken, the heat collector still could be used normally.
4) Therefore, this kind of products has gradually accepted by consumers. However, every coin has two sides.
Solar collector technical Specifications
Manifold Casing Material |
1.6mm thickness / Aluminium |
Frame Material |
1.5mm thickness /Galvanized or Aluminium |
Header Pipe Material |
1.2mm thickness /Copper |
Insulation |
Polyurethane /Rockwool |
Rubber Seals and Rings |
UV stabilized high temperature silicone rubber |
Optimal installation angle |
30-70°Vertical,0°Horizontal |
Operating Pressure |
6bar-12bar |
Pressure Drop |
7bar 3.3L/min for 20 tube manifold |
Optimal flow rate |
0.1L/min/tube-0.026G/min/tube |
Model |
Area(m2) |
Vacuum tube |
Volume |
Qty. per 20/40 Container |
||
f(mm) |
Length(mm) |
Qty(pc) |
||||
TH-47/1500-12 |
1.20 |
47 |
1500 |
12 |
60 |
141/295/305 |
TH-47/1500-15 |
1.50 |
47 |
1500 |
15 |
70 |
138/290/295 |
TH-47/1500-18 |
1.80 |
47 |
1500 |
18 |
120 |
95/198/203 |
TH-47/1500-20 |
2.00 |
47 |
1500 |
20 |
120 |
85/178/181 |
TH-47/1500-24 |
2.40 |
47 |
1500 |
24 |
150 |
71/148/150 |
TH-47/1500-30 |
3.00 |
47 |
1500 |
30 |
180 |
57/120/123 |
TH-58/1800-12 |
1.99 |
58 |
1800 |
12 |
110 |
123/258/266 |
TH-58/1800-18 |
2.66 |
58 |
1800 |
18 |
150 |
82/172/180 |
TH-58/1800-20 |
2.98 |
58 |
1800 |
20 |
175 |
73/155/161 |
TH-58/1800-24 |
3.56 |
58 |
1800 |
24 |
220 |
56/118/122 |
TH-58/1800-30 |
4.43 |
58 |
1800 |
30 |
260 |
45/96/99 |
TH-70/1700-10 |
1.99 |
70 |
1700 |
10 |
120 |
132/278/288 |
TH-70/1700-20 |
3.22 |
70 |
1700 |
20 |
240 |
62/122/130 |
TH-70/1700-25 |
4.32 |
70 |
1700 |
25 |
300 |
45/96/100 |
