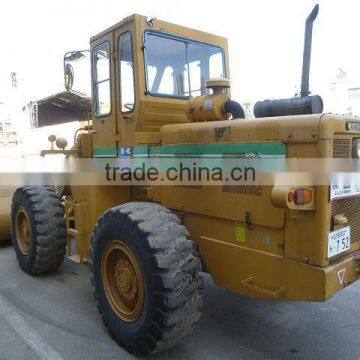

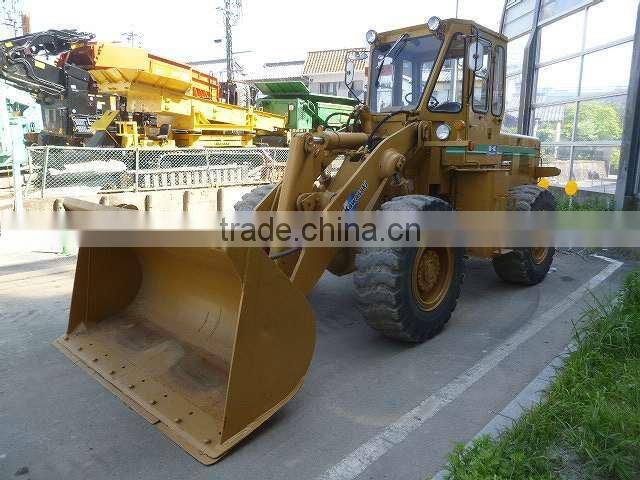

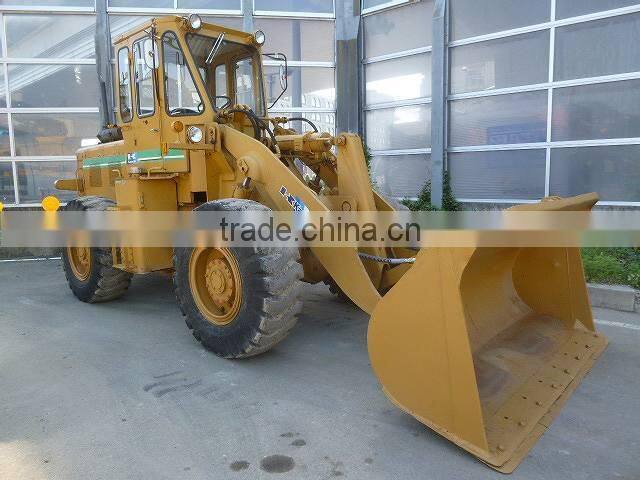

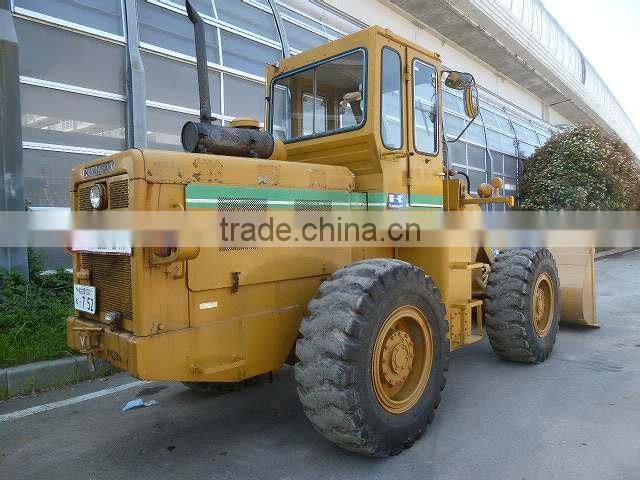

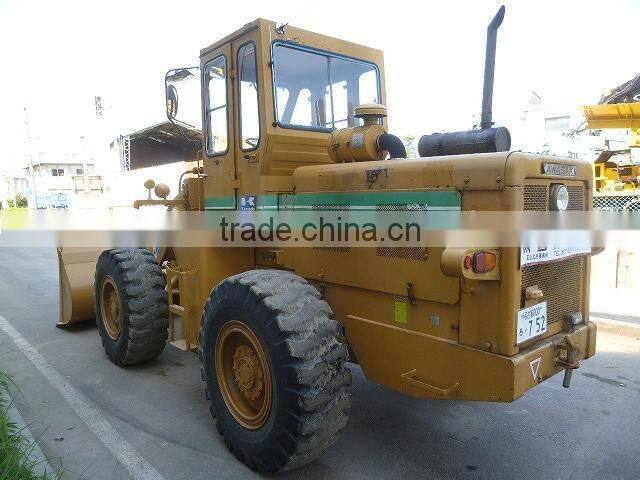

Help CenterUSED LOADERS FOR SALE KLD65Z WHEEL LOADER FROM JAPAN!!!
Related Products
-
Used Wheel Loader Furukawa FL305 -3 Good Working Machinery From JapanUS$ 3,700,000 - 3,750,000MOQ: 1 Unit -
Front Loader Used Furukawa FL305 -3 Japanese Wheel Loader WA80 For SaleUS$ 3,700,000 - 3,750,000MOQ: 1 Unit
-
Used Japanese Wheel Loader 910F Bucket Size 1.3m3 WA100 For SaleUS$ 2,880,000 - 2,900,000MOQ: 1 Unit
-
Used Loader 910F Japan Model Komatsu Hitachi Wheel Loader For SaleUS$ 26,000 - 26,600MOQ: 1 Unit
-
Wheel Loader Used Furukawa FL305 -3 Japanese Machine Hitschi ZW For SaleUS$ 3,700,000 - 3,750,000MOQ: 1 Unit
THIS IS YOUR REFERENCE ONLY. IT MIGHT BE DIFFERNT FROM ACTUAL MACHINE.
Selected Dimensions
Bucket
G. DUMP CLEARANCE AT MAX RAISE 8.9 ft in 2725 mm
Dimensions
A. LENGTH WITH BUCKET ON GROUND 22.3 ft in 6790 mm
B. WIDTH OVER TIRES 7.8 ft in 2375 mm
C. HEIGHT TO TOP OF CAB 10.5 ft in 3190 mm
D. WHEELBASE 9.5 ft in 2900 mm
E. GROUND CLEARANCE 1.2 ft in 370 mm
F. HINGE PIN - MAX HEIGHT 11.8 ft in 3610 mm
H. REACH AT MAX LIFT AND DUMP 3.6 ft in 1110 mm
Specification

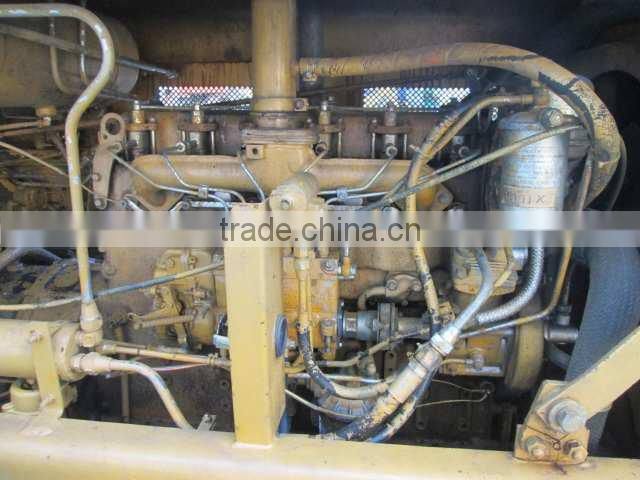

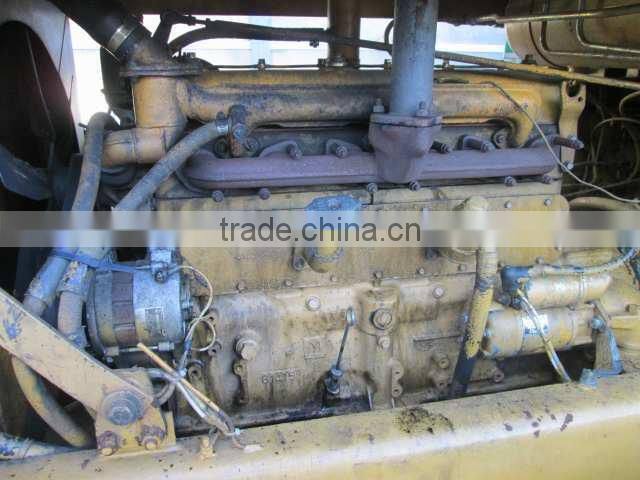

Engine
MAKE Isuzu
MODEL 6BG1
NET POWER 108 hp 80.5 kw
POWER MEASURED @ 2350 rpm
DISPLACEMENT 396 cu in 6.5 L
TORQUE MEASURED @ 1500 rpm
NUMBER OF CYLINDERS 6
MAX TORQUE 290 lb ft 393.2 Nm
ASPIRATION natural
Operational
OPERATING WEIGHT 21450 lb 9729.6 kg
FUEL CAPACITY 47.6 gal 180 L
HYDRAUILC SYSTEM FLUID CAPACITY 25.1 gal 95 L
ENGINE OIL FLUID CAPACITY 3.7 gal 14 L
COOLING SYSTEM FLUID CAPACITY 10.8 gal 41 L
TRANSMISSION FLUID CAPACITY 7.9 gal 30 L
FRONT AXLE/DIFF FLUID CAPACITY 5.3 gal 20 L
REAR AXLE/DIFF FLUID CAPACITY 5.3 gal 20 L
STATIC TIPPING WEIGHT 15830 lb 7180.4 kg
TURNING RADIUS 18.6 ft in 5680 mm
OPERATING VOLTAGE 24 V
ALTERNATOR SUPPLIED AMPERAGE 40 amps
REAR AXLE OSCILLATION 30 degrees
TIRE SIZE 17.5-25-12PR (L2)
Transmission
TYPE full power shift
NUMBER OF FORWARD GEARS 4
NUMBER OF REVERSE GEARS 4
MAX SPEED - FORWARD 24.2 mph 38.9 km/h
MAX SPEED - REVERSE 24.2 mph 38.9 km/h

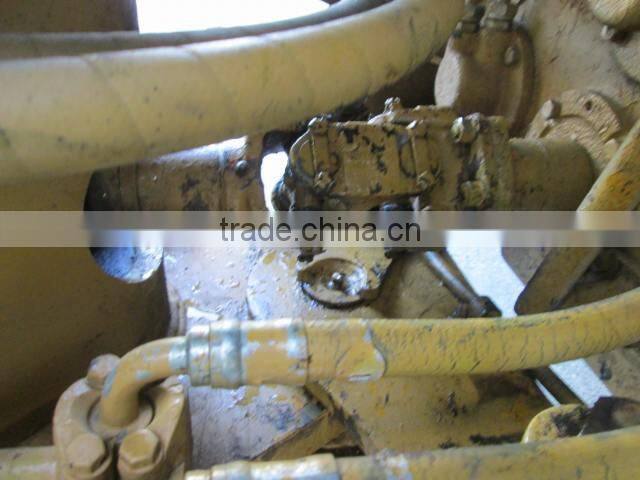

Hydraulic System
PUMP TYPE gear type
RELIEF VALVE PRESSURE 2770 psi 19098.5 kPa
PUMP FLOW CAPACITY 10.6 gal/min 40.1 L/min
RAISE TIME 5.8 sec
DUMP TIME 1.2 sec
LOWER TIME 2.9 sec

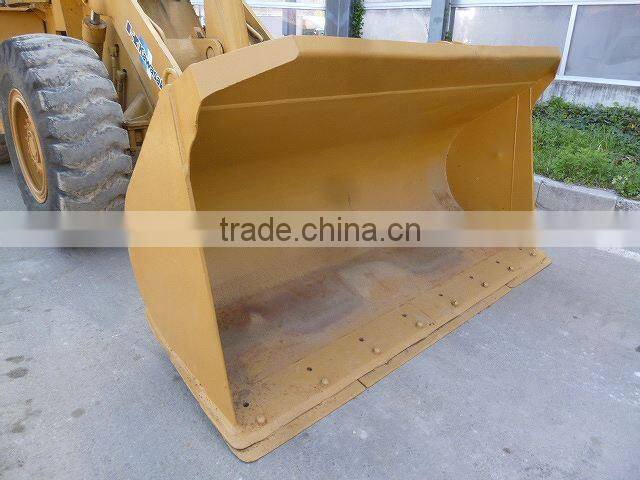

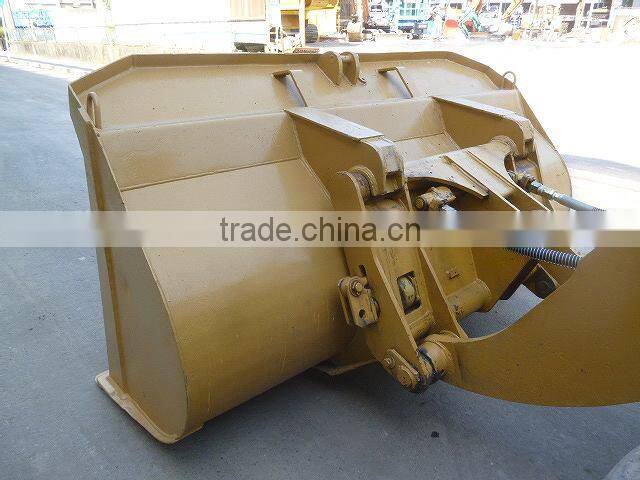

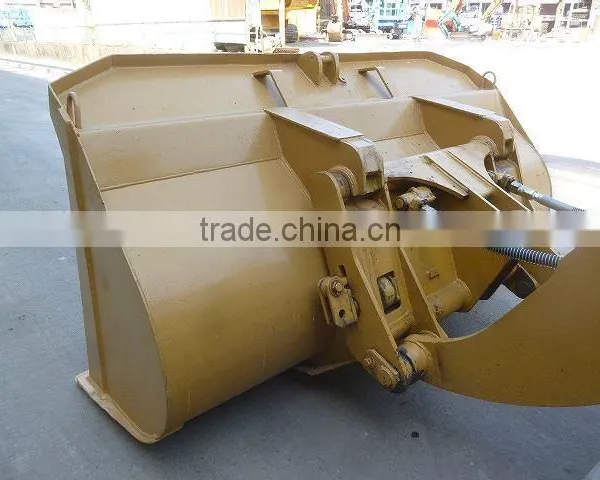

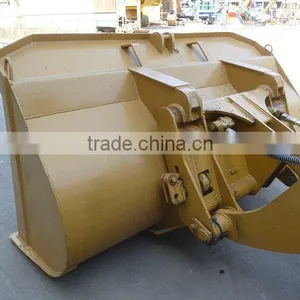

Bucket
BREAKOUT FORCE 21950 lb 97.6 kN
DUMP CLEARANCE AT MAX RAISE 8.9 ft in 2725 mm
BUCKET WIDTH 8 ft in 2450 mm
BUCKET CAPACITY - HEAPED 2.3 yd3 1.8 m3
BUCKET CAPACITY - STRUCK 2 yd3 1.5 m3
Dimensions
LENGTH WITH BUCKET ON GROUND 22.3 ft in 6790 mm
WIDTH OVER TIRES 7.8 ft in 2375 mm
HEIGHT TO TOP OF CAB 10.5 ft in 3190 mm
GROUND CLEARANCE 1.2 ft in 370 mm
WHEELBASE 9.5 ft in 2900 mm
HINGE PIN - MAX HEIGHT 11.8 ft in 3610 mm
REACH AT MAX LIFT AND DUMP 3.6 ft in 1110 mm
This machine can be shipped by roro/bulk marine vessel, or 40ft dry container.
Complete washing for strict quarantine such as Australia is applicable with extra cost.
|
