Home > Products > Weighing Indicator > With high precision Wireless Weighing Terminal Indicador/ Weight Indicator With Printer For Scale WI680

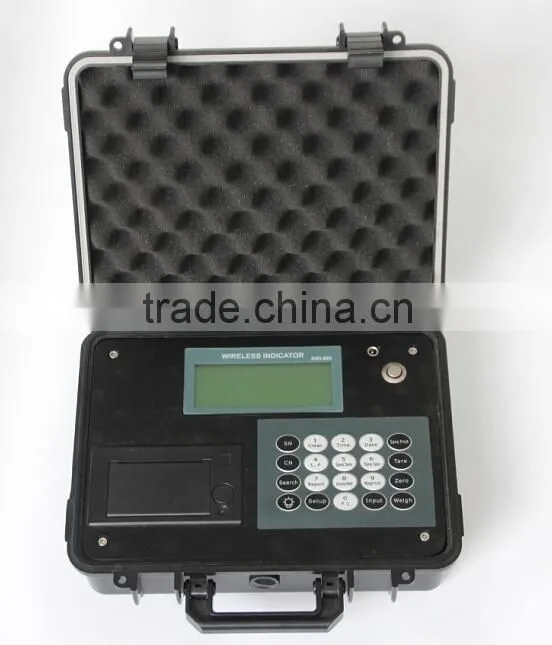

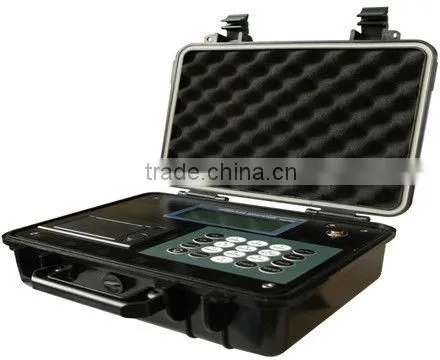

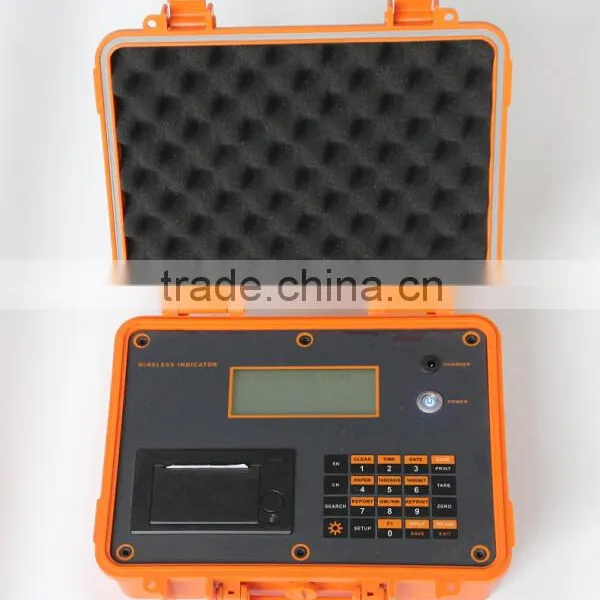

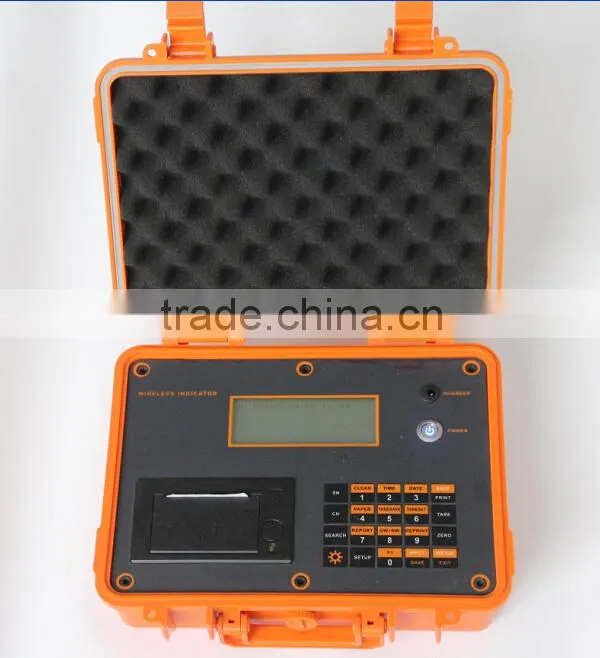

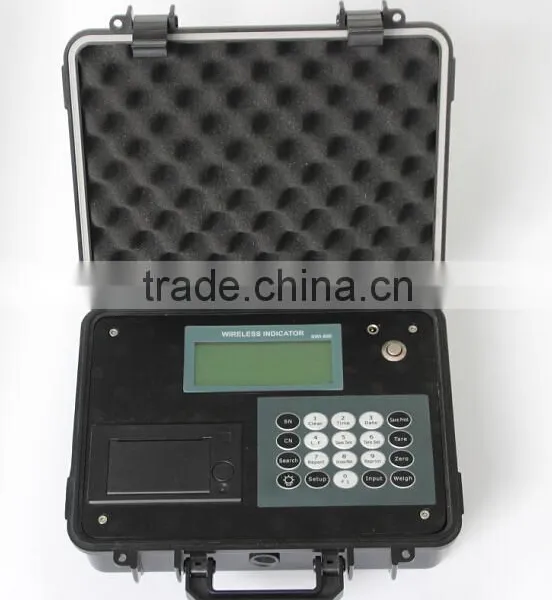

With high precision Wireless Weighing Terminal Indicador/ Weight Indicator With Printer For Scale WI680
- 1600 Set / Sets per Month
- Ningbo or Shanghai
- Credit Card
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | GOLDSHINE | Model Number: | WI680II |
| Type: | Axle Scale | Power Supply: | 110-220V | Display Type: | LED/LCD |
| Rated Load: | 50ton | Accuracy: | KG/Ton |
Product Description
Special Features :
Adopts ∑-Δ A/D conversion technology.
Keyboard calibration, easy to operate.
Able to setup zero(auto/manual) range.
Weighing data save protection in case of power off.
Battery charger with several protection modes to extend life of rechargeable battery.
Standard RS232 communication interface(optional).
Portable design, packed in portable box, easy to operate outdoor.
Adopt SMT technology, reliable and high quality.
LCD display with dot character with backlight, readable in aphotic areas.
Gathering up to data records of 2000 weighings, records can be sorted, searched and printed.
Standard parallel print interface(EPSON printer)
With rechargeable 7.2V/2.8AH battery for indicator, no memory. Scale body with power supply of DC 6V/4AH battery.
Power saving mode, indicator will turn off automatically after 30minutes with no operation.
Technical Data:
A/D Conversion Method: | Σ-Δ |
Input Signal Range: | -3mV~15mV |
Load Cell Excitation: | DC 5V |
Max. Connection Number Of Load Cell: | 4 at 350 ohm |
Load Cell Connection Mode: | 4 wire |
Verified Counts: | 3000 |
Max. External Counts: | 15000 |
Division: | 1/2/5/10/20/50 optional |
Display: | LCD display with backlight |
Clock: | real clock without effect on power off |
Wireless Transmission Frequency: | 450MHz |
Wireless Transmission Distance: | 200 meters (in wide place) |
Option: | RS232 communication interface |
Notice:
Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather, the load cell with the indicator in different place, orientation or obstruct from .For charge: according to Li-ion battery. Do not excess discharge.

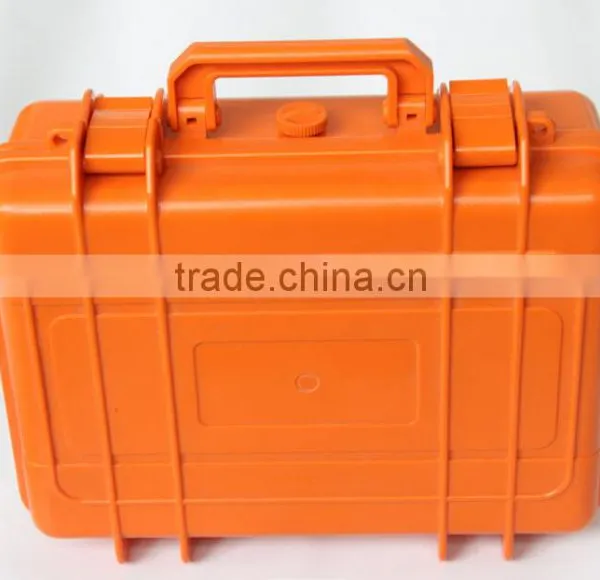

Pictures for packing:
FAQ:
1. What is the MOQ?
If we don’t have it in stock, the MOQ is 5 pcs
If we have it in stock, we can ship you even 1 pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 7 working days.
If we don’t have it in stock, the lead time will be 30-45 days.
3. What is the payment terms?
T/T, Western Union, is acceptable.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport
If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone
7. How to contact us?
Tel: +86-574-86902686
Skype: emmyliu91
Trade manager: cn1510111149
E-mail: salesone @goldshinechina.com
