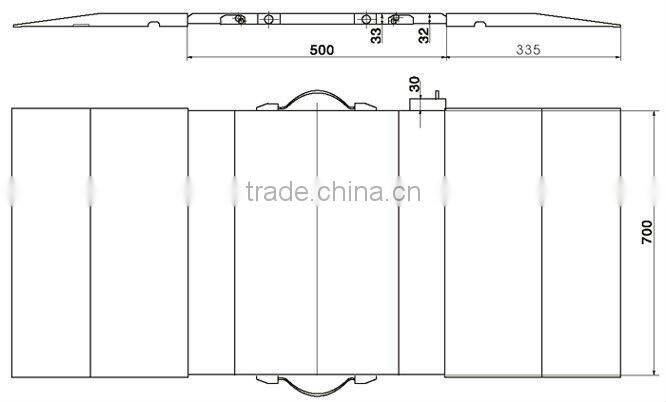

Help CenterPortable Weighing Pads
Related Products
Feature:
Light in weight, and convenient transportation.
Integral flat plate construction, high frequency in dynamic response, and high precision.
Adopted special material in aero-industry, with good anti-over loading ability.
Applied special treatment, offering high protection class that are suitable for all kinds of environments.
Assembled with rubber handles, avoided destroying of the handles. Completed with approach, easy for loading on/off of the vehicles.
Applications:
Load control and weighing for the vehicles.
Measuring the weight and barycenter of aeroplane.
Measuring weight for special purpose.
Specifications:
Output Sensitivity ( m V/V): |
0.9±0.2 |
Combined Error (%ld): |
0.5 |
Non-Linearity (%ld): |
0.5 |
Repeatability (%ld): |
0.1 |
Creep (%FS/30min): |
0.1 |
Input Resistance (Ω): |
3120±40 |
Ouput Resistance (Ω): |
2800±10 |
Insulation Resistance(MΩ): |
≥5000(100VDC) |
Zero Balance (%FS): |
4~10%FS |
Temperature Effect On Sensitivity (%FS/10°C ): |
0.1 |
Temperature Effect On Zero (%FS/10°C): |
0.1 |
Temperature, Compensated (°C): |
-10~+50 |
Temperature, Operating (°C): |
-40~+80 |
Excitation, Recommended (V): |
9~15DC |
Excitation, Max.(V): |
20DC |
Safe Overload (%FS): |
120 |
Ultimate Overload (%FS): |
150 |
Protection Class: |
IP66 |
Cable Spec.: |
4-wire shield cable |
Max. Load For Single Point (t): |
10t |
Rated Capacity (t): |
15t |
Connections: Red Input(+) Black Input(-) Green Output(+) White Output(-) | |
