Home > Products > Tension Load Cell > Cheap Weighing Tension load cell GS214
Cheap Weighing Tension load cell GS214
- 10000 Piece / Pieces per Month
- Ningbo or Shanghai China
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | GOLDSHINE | Model Number: | GS214 |
Usage: | Other, hanging scales,mechanical scales,hopper scales | Theory: | Resistance Sensor | Output: | Analog Sensor |
Product Description

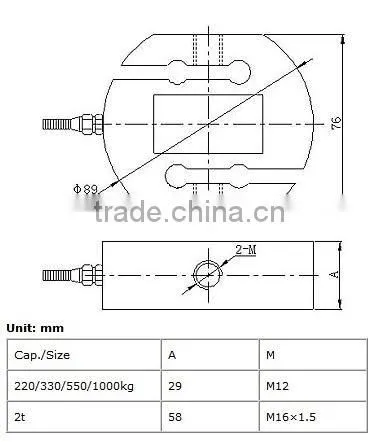

GS214 load cell
Product Characteristics:
GS214 are available in the capacities 220/330/550/1000kg/2t. They offer alloy steel or total stainless steel construction, complete hermetic sealing, oil proof, water proof and anti-corrosion making them suitable for use in all kinds of environments. S beam design,and or possible, easy installation and flexible application. It is suitable for hanging , mechanical , hopper and other electronic devices. It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.
Technical parameter:
Rated load | 220/330/550/1000/2000kg |
Sensitivity | (2.0±0.1%) mv/v |
Combined error | ±0.02% F.S |
Creep Error(30min) | ±0.02% F.S |
Zero balance: | ±1% F.S |
Temp. effect on zero: | ±0.02% F.S/10°C |
Temp. effect on Span: | ±0.02% F.S/10°C |
Input resistance: | 385±5Ω |
Output resistance: | 352±2Ω |
Insulation resistance: | ≥5000MΩ |
Operating Temperature Range: | -30~+70°C |
Maximum safe over load: | 150%F.S |
Ultimate over load: | 300%F.S |
Recommend excitation voltage: | 10~12V DC |
Maximum excitation voltage: | 15V DC |
Sealing Class: | IP67/IP68 |
Element material: | Alloy Steel, Stainless Steel |
Cable: | Length=L:3m |
Citation: | GB/T7551-1997/ OIML R60 |
Mode of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
FAQ:
1. What is the MOQ?
If we don’t have it in stock, the MOQ is 5 pcs
If we have it in stock, we can ship you even 1 pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 7 working days.
If we don’t have it in stock, the lead time will be 30-45 days.
3. What is the payment terms?
T/T, Western Union, is acceptable.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport
If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone
