Home > Electrical & Electronics > Sensor > Pressure Sensor > Wireless Hanging Sensor

Wireless Hanging Sensor

Name: Wireless Hanging Sensor
Brand: GOLDSHINE
SKU: 128765129
Availability: InStock

US$ 50 - 500 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS204W

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS204W

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Wireless

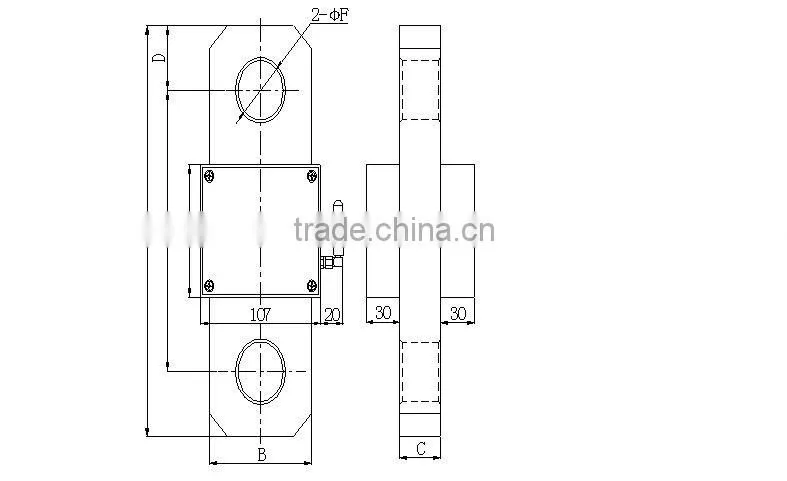

Dimensions

Unit mm

Cap./Size	A	B	C	D	E	F
5t	260.0	80.0	32.0	40.0	180.0	32.0
10t	278.0	90.0	36.0	44.0	190.0	40.0
20t	300.0	100.0	40.0	48.0	204.0	48.0

Product Characteristics

GS204-W series is special load cell for crane scale. Element material made of alloy steel or stainless steel according to customer’s requirement. High precision, strong overload protection capacity and anti-deflective loading. The load cell with special hook and ring, easy installation.

Circuit Diagram

Technical Parameter

Rated Load:	5/10/20t
Wireless Frequency:	240GHz
Wireless Distance:	Min80m(default)[200m(optional)]
A/D Conversion Rate:	≥50 times/seconds
Battery Life	≥50 hours
Sensitivity	(2.0±0.1%) mv/v
Combined Error	±0.02% F.S
Creep Error(30min)	±0.02% F.S
Zero Balance	±1% F.S
Temp. Effect On Zero	±0.02% F.S/10°C
Temp. Effect On Span	±0.02% F.S/10°C
Input Resistance	750±5Ω
Output Resistance	702±2Ω
Insulation Resistance	≥5000MΩ
Operating Temp. Range	-30~+70°C
Maximum Safe Over Load	120%F.S
Ultimate Over Load	200%F.S
Recommend Excitation	10~12V DC
Maximum Excitation	15V DC
Sealing Class	IP67/IP68
Element Material	Alloy Steel, Stainless Steel
Citation	GB/T7551-1997/ OIML R60
Mode Of Connection	Red(Input+),Black(Input-),Green(Output+),White(Output-)

Notice

Do not use the wireless load cell in an explosive or unsafe place, wireless load cell work range will have a little different according to with or without obstacles. The wireless load cell can work 50 hours or more when the lithium batteries in fully charged state. When charge please not be too long time or over.
